Cosec Atom RD100 RFID & Bluetooth® Access Control Reader Compact & IP65

Cosec Atom RD100 RFID & Bluetooth® Access Control Reader Compact & IP65

The Cosec Atom RD100 is a cutting-edge access control reader combining RFID card and Bluetooth® (BLE) credential support. Its sleek, compact design and IP65-rated durability make it an excellent choice for secure, high-traffic environments.

Advanced Multi-Credential Support

Supporting a wide range of RFID cards and Bluetooth®, the Atom RD100 ensures flexibility and compatibility with various access control systems. It also integrates seamlessly with third-party door controllers via a Wiegand interface.

Built for Durability and Performance

Equipped with Gorilla Glass 3 and an IK07 vandal-proof rating, the RD100 is engineered for long-term reliability. Its IP65 ingress protection guarantees performance even in challenging environments.

Architecture Diagram

Features

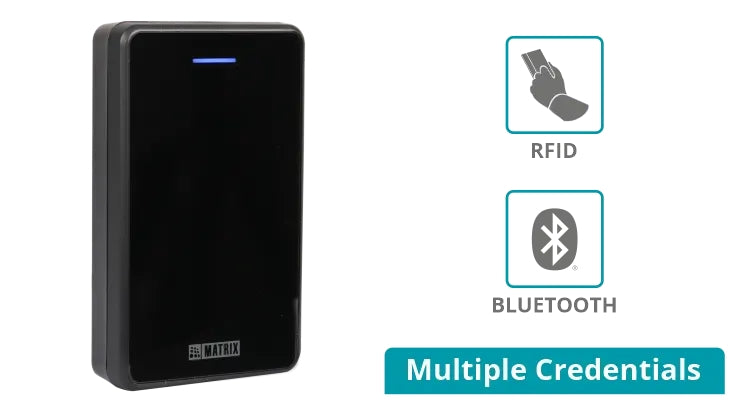

• Credential Support: BLE and RFID Cards
• Card Options:
  • EM Proximity
  • MIFARE Classic®, MIFARE Plus, Desfire EV1/EV2/EV3
  • HID SEOS, HID iCLASS, HID Prox

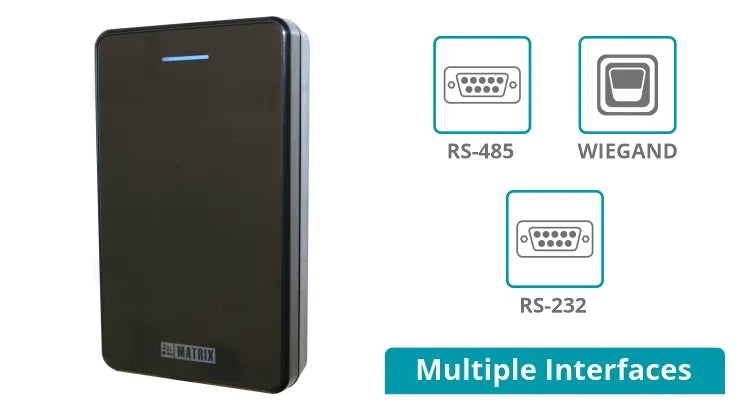

• Interface Support: RS-232, RS-485, and Wiegand

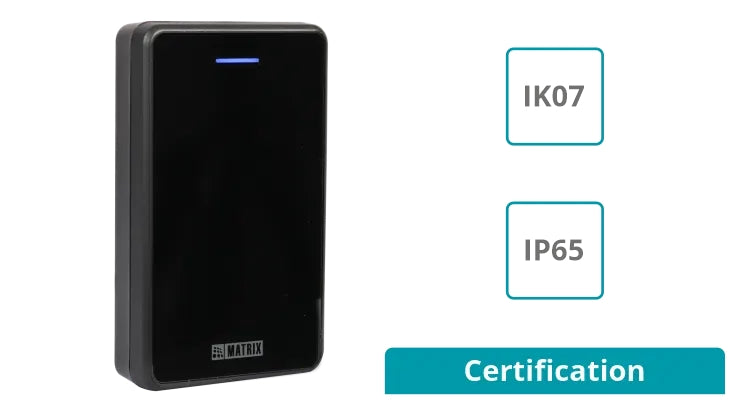

• Rugged Design: IP65 ingress protection and IK07 vandal-proof rating
• Advanced Hardware: Gorilla Glass 3, Nordic 32-bit CPU

Technical Specifications

General:

• Credential Support: BLE and RFID Cards
• RF Options:
  • EM Proximity Card
  • MIFARE Classic®, Plus, Desfire EV1/EV2/EV3, Combo Cards, NFC Tag
  • HID SEOS, HID iCLASS, HID Prox

Capacity:

• User Profiles and Event Logs: Depend on the master device

Communication:

• Bluetooth®: Inbuilt support
• RS-232: Compatible with COSEC ARGO, VEGA, PATH V2
• RS-485: Compatible with ARC DC200P
• Wiegand Interface: Supported

Hardware:

• Dimensions: 101mm x 60mm x 19mm
• Weight: 0.14 kg (0.30 lbs)
• Display: Gorilla Glass 3
• Ingress Protection: IP65
• Vandal Proof: IK07
• Buzzer: Yes (12V magnetic)
• LED: Tri-color

Environmental:

• Operating Temperature: 0°C to +55°C (32°F to 131°F)
• Humidity: 5% to 95% RH (non-condensing)

Installation:

• Mounting: Wall mount

Why Choose Cosec Atom RD100?

The Cosec Atom RD100 combines advanced technology and robust design to deliver exceptional performance in access control applications. With multi-factor credential support, seamless connectivity, and durable construction, it is perfect for workplaces, institutions, and other high-security environments.
