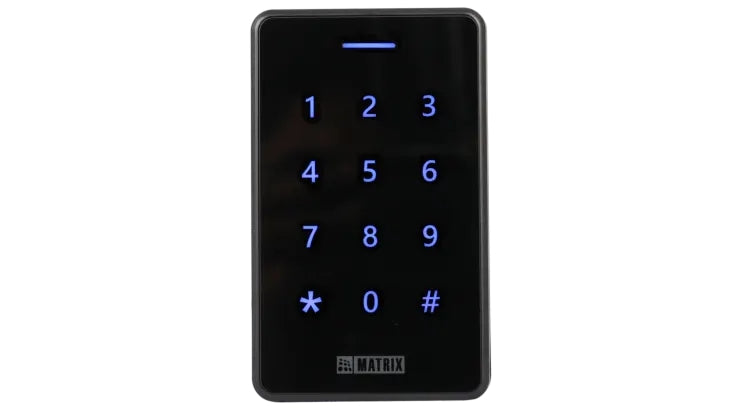

Cosec Atom RD100K Access Reader RFID Bluetooth® and Keypad with IP65

Cosec Atom RD100K Access Reader RFID Bluetooth® and Keypad with IP65

The Cosec Atom RD100K redefines secure access control with its multi-factor credential support, combining PIN, RFID card, and Bluetooth® (BLE) capabilities. Featuring a backlit Touchsense keypad, the RD100K is designed for maximum convenience and adaptability.

Unmatched Versatility and Compatibility

Supporting multiple RFID card types and PIN-based access, this reader integrates effortlessly with third-party door controllers via a Wiegand interface. Its compact, durable design ensures reliable operation even in challenging environments.

Durable and High-Performance Design

Equipped with Gorilla Glass 3, an IP65-rated body, and an IK07 vandal-proof rating, the RD100K is built for resilience in high-traffic areas. Its sleek, modern design complements any professional setting.

Architecture Diagram

Features

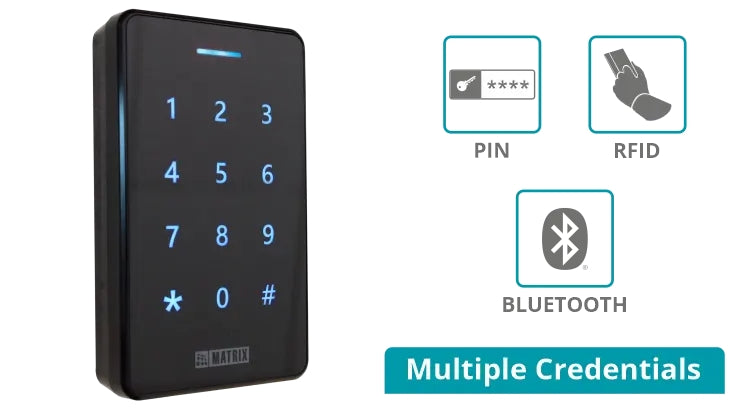

• Multi-Credential Support: BLE, RFID Card, and PIN
• Backlit Touchsense Keypad: Enhanced usability in low-light environments
• RF Options:
  • EM Proximity Card
  • MIFARE Classic®, Plus, Desfire EV1/EV2/EV3, Combo Cards, NFC Tag
  • HID SEOS, HID iCLASS, HID Prox

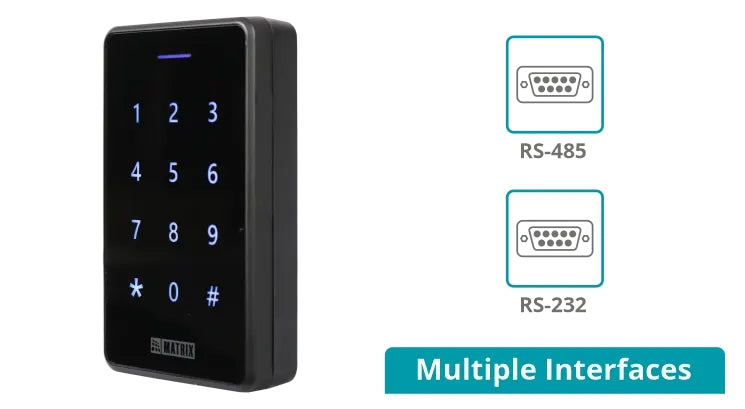

• Interfaces: RS-232, RS-485, and Wiegand support

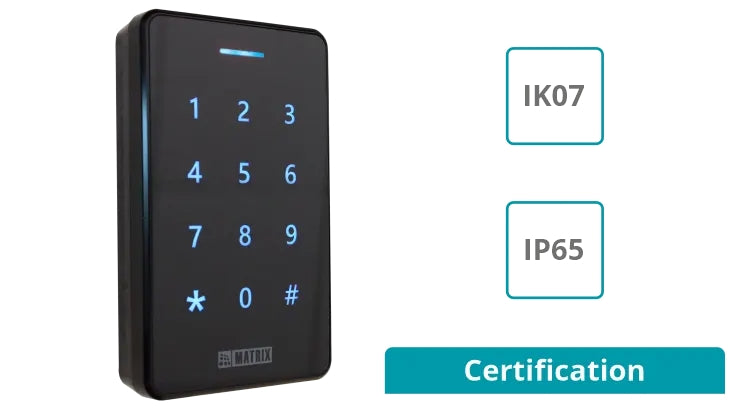

• Durability: IP65 ingress protection and IK07 vandal-proof rating

Technical Specifications

General:

• Credential Support: PIN, BLE, and RFID Cards
• RF Options:
  • EM Proximity Card
  • MIFARE Classic®, Plus, Desfire EV1/EV2/EV3, NFC Tag
  • HID SEOS, HID iCLASS, HID Prox

Capacity:

• User Profiles and Event Logs: Depend on the master device

Communication:

• Bluetooth®: Built-in support
• RS-232: Compatible with COSEC ARGO, VEGA, and PATH V2
• RS-485: Compatible with ARC DC200P
• Wiegand Interface: Supported

Hardware:

• Dimensions: 101mm x 60mm x 19mm
• Weight: 0.14 kg (0.30 lbs)
• Display: Gorilla Glass 3
• Ingress Protection: IP65
• Vandal Proof: IK07
• Buzzer: Yes (12V magnetic)
• LED: Tri-color

Environmental:

• Operating Temperature: 0°C to +55°C (32°F to 131°F)
• Humidity: 5% to 95% RH (non-condensing)

Installation:

• Mounting: Wall mount

Why Choose Cosec Atom RD100K?

The Cosec Atom RD100K stands out with its multi-factor authentication and advanced design. Ideal for organizations prioritizing security and adaptability, it ensures seamless integration with third-party systems while maintaining a robust and stylish build.
