Attendance Machine

eSSL JS-36E Access Control Mobile App

Rs. 2,600.00

Sale Sold out

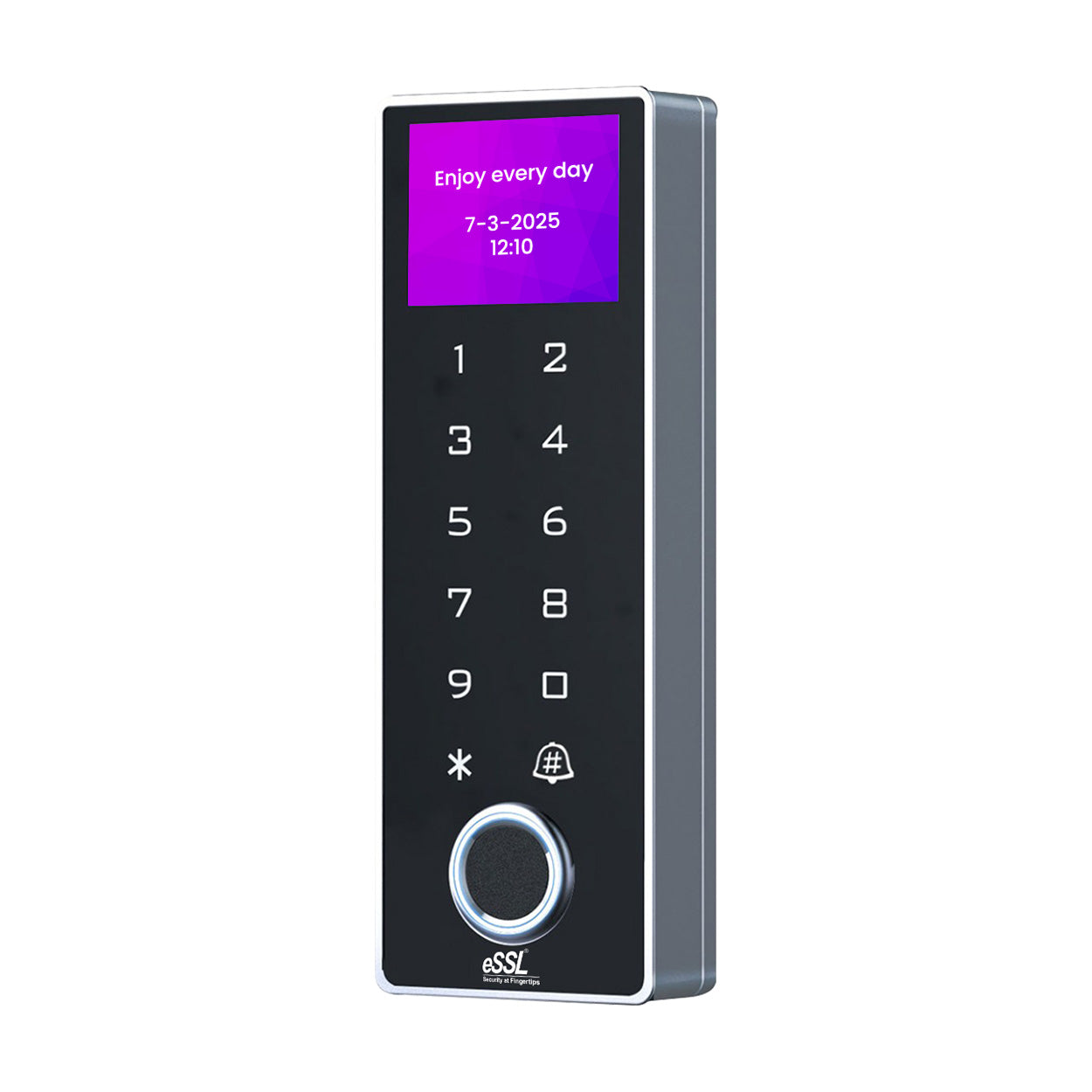

Mobile App Access Reader

JS-36E

Touch Fingerprint Access Control with LCD Screen

Card, fingerprint, PIN, or phone — the JS-36E handles all four. Built for sites that need real biometric security without the enterprise price tag.

✓ Fingerprint Sensor IP65 Rated

EM / MF Dual Card 10,000 Users LCD + Voice

Most card readers do one thing: read a card. The JS-36E does quite a bit more. It reads fingerprints, accepts PINs, works with both EM and Mifare cards, and talks to your phone via the Tuya app — all in one slim unit with an LCD screen and voice feedback so users always know what's happening. It stores up to 10,000 user credentials and 200 fingerprints, which makes it serious enough for mid-sized office buildings, warehouses, and gated communities, yet straightforward enough that you don't need an IT team to run it. If someone loses their card, just enrol their fingerprint instead. If the internet goes down, the reader keeps working locally. It's the kind of hardware that quietly handles itself.

Stepping up from the JS-35E? The JS-36E adds a semiconductor fingerprint sensor, LCD screen, voice broadcast, Mifare card support (MF), 5× the user capacity (10,000 vs 2,000), and IP65 weather protection — while keeping the same familiar Tuya app and installation footprint.

10K

Card/PIN Users

200

Fingerprints

IP65

Protection

6cm

Read Range

4 Ways to Get In

Fingerprint

No card needed. Stores up to 200 prints on-device.

EM / MF Card

Works with both 125 KHz EM and 13.56 MHz Mifare cards.

PIN Code

Reliable fallback when cards or fingers aren't available.

Mobile App

Unlock remotely via Tuya. Manage everything from your phone.

3 Working Modes — One Device

Mode 01

Standalone Access Control

Runs completely on its own — no external panel, no network dependency. The reader handles authentication and triggers the lock directly. Perfect for single-door deployments.

Mode 02

Pure Reader Mode

Passes credential data over Wiegand 26 to an existing access controller. Use this when you already have a panel managing multiple doors and just need a better reader at the entry point.

Mode 03

Relay Toggle Mode

Each valid credential toggles the relay on or off — useful for controlling gates, barriers, lights, or any device that needs a latching rather than momentary trigger.

Standout Features

LCD Screen

A clear display shows the access status, time, and prompts — users always know if they're granted or denied, no guessing required.

Voice Broadcast

Built-in speaker announces access results out loud. Adjustable volume and multiple language options available, so it works in any environment.

Data Backup

User data can be backed up so you're never starting from scratch after a power issue or hardware swap. Enrolment effort is never wasted.

Temporary Codes

Issue time-limited PINs for visitors, contractors, or delivery staff. They expire automatically — no manual revocation needed.

Visitor Records

Every door event is logged and viewable in the Tuya app. Know exactly who came and went, and when — without physically checking any hardware.

IP65 Weather Protection

Dust-tight and protected against water jets, so it can go on an exterior wall without any cover or housing. Handles −40°C to 60°C without complaint.

Technical Specifications

Electrical▾

Working Voltage

DC 12 – 24V

Operating Current

≤ 100 mA

Idle Current

≤ 35 mA

Lock Output Load

≤ 1 A

Short-Circuit Protect

≤ 100 μs

Reader & Credentials▾

Card Type

EM (125 KHz) and Mifare (13.56 MHz)

Reading Range

2 – 6 cm

Fingerprint Sensor

Semiconductor (capacitive)

Fingerprint Capacity

200

Card / Code Users

10,000

Wiegand Interface

Wg26 Input / Output

Environmental▾

Operating Temperature

−40°C to 60°C

Operating Humidity

0 % – 95 % RH

Ingress Protection

IP65 (Dustproof & Water-jet Resistant)

Access & App Features▾

Access Modes

Fingerprint, Card (EM/MF), PIN Code, Mobile App

Working Modes

Standalone access control / Pure reader / Relay toggle

App Platform

Tuya Smart (iOS & Android)

Remote Unlock

Yes — via internet from anywhere

Temporary Codes

Yes — set validity period via app

Visitor Records

Yes — viewable in Tuya app

User Management

Admin card enrolment or mobile app

Voice Broadcast

Yes — adjustable volume, multi-language

Data Backup

Yes

Display

LCD screen

Where It Works Best

Office Buildings

10,000 user slots handles even large staff rosters. Fingerprint means no card to lose, and the LCD screen makes the experience feel professional.

Warehouses & Factories

Workers in gloves can use a PIN; those without cards can use fingerprint. IP65 keeps it running through dust, moisture, and wide temperature swings.

Gated Residential

Residents get cards or fingerprint access; visitors get temporary PINs that expire automatically. Remote unlock means you can let someone in from your flat.

Schools & Institutions

Multiple language support and voice feedback help in diverse environments. The data backup means you won't lose enrolled students if something goes wrong.

Retrofit Installations

Pure reader mode over Wiegand 26 means you can drop this in front of any existing access controller without changing your backend infrastructure.

Gates & Barriers

Relay toggle mode is designed exactly for this — a latching trigger for barriers, shutters, and sliding gates that need to stay open between events.

Downloads

Product Datasheet (PDF)

Official eSSL Catalogue — JS-36E

Installation Manual (PDF)

Wiring diagram & setup guide

Manufacturer Page

esslsecurity.com — Official Source
