ZKTeco AMT-FAM-10 Biometric Module
ZKTeco AMT-FAM-10 Biometric Module
Couldn't load pickup availability
Product Details

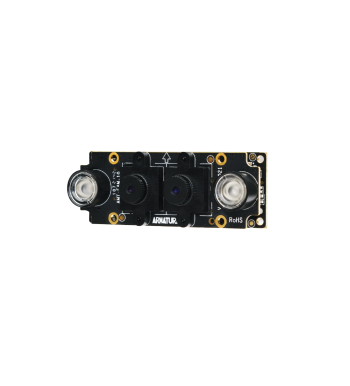

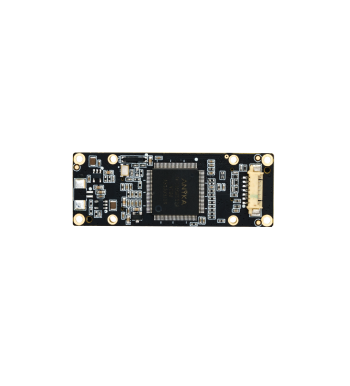

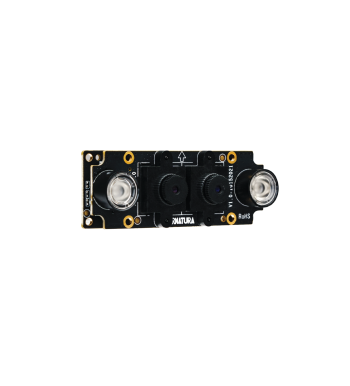

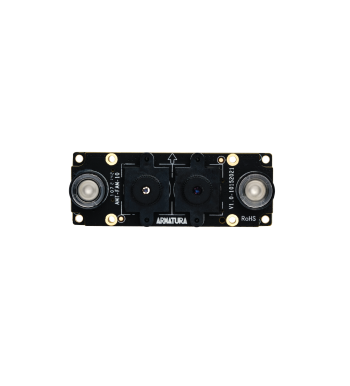

AMT-FAM-10 – Dual-Lens Near-Infrared & Visible Light Face Module
The AMT-FAM-10 is a dual-lens biometric face module designed to capture both Near-Infrared (NIR) grayscale face images and true-color RGB face images for accurate biometric recognition. Its dual-camera design combines visible light and infrared imaging to provide high-quality facial image capture across different recognition conditions.
Powered by Armatura FaceLite and LiveFace algorithms, the AMT-FAM-10 is designed to deliver accurate identification together with highly secure liveness detection. The combination of NIR and visible light imaging helps provide enhanced biometric recognition and anti-spoofing protection.
Key Features
- Dual-lens Near-Infrared and visible light face module.
- Captures NIR grayscale facial images.
- Captures true-color RGB facial images.
- Designed for high-quality biometric face recognition.
- Powered by Armatura FaceLite SDK 12.0.
- Supports LiveFace liveness detection technology.
- Provides enhanced anti-spoofing protection.
- Visible light and infrared cameras operate together for biometric imaging.
- USB 2.0 interface for host connectivity.
- Compact module and reader enclosure design.
Product Advantages
- Dual-spectrum facial image capture using visible light and NIR technology.
- True-color RGB imaging provides detailed facial image information.
- NIR grayscale imaging supports biometric recognition under infrared illumination.
- LiveFace technology provides liveness detection for improved anti-spoofing security.
- High-quality image capture supports accurate facial identification.
- Compact dimensions allow integration into compatible biometric terminals and systems.
- USB 2.0 interface provides straightforward system integration.
Dual-Lens Camera Technology
The visible light camera captures 24-bit RGB true-color facial images using a 1/2.7-inch HDR CMOS sensor. It provides a 440 nm to 650 nm optical wavelength range and a horizontal, vertical, and diagonal field of view of 40°, 65°, and 74° respectively.
The infrared camera captures 256-level grayscale facial images at an optical wavelength of 850 nm. The NIR camera provides infrared facial imaging for biometric recognition and works together with the visible light camera in the dual-lens design.
The AMT-FAM-10 is powered by Armatura FaceLite and LiveFace algorithms to provide highly secure liveness detection and anti-spoofing protection during biometric authentication.
Technical Specifications
| Specification | Details |
|---|---|
| Model | AMT-FAM-10 |
| Product Type | Dual-Lens Near-Infrared & Visible Light Face Module |
| Biometric Technology | Visible Light Face Recognition & Near-Infrared Face Recognition |
| Interface | USB 2.0 |
| Power Supply | DC 5.0V / 400mA |
| Operating Temperature | -10°C ~ 45°C / 14°F ~ 113°F |
| Storage Temperature | -20°C ~ 80°C / -4°F ~ 176°F |
| Operating Humidity | 0 ~ 90% RH |
| Module Dimensions | 60.0(L) × 22.0(W) × 18.3(H) mm (±1 mm) |
| Reader Dimensions | 95.5(L) × 29.0(W) × 26.4(H) mm (±1 mm) |
| SDK | Armatura FaceLite SDK 12.0 |
| Algorithms | Armatura FaceLite & LiveFace |
| Certification | CE, FCC, RoHS, WHQL |
Visible Light Camera Specifications
| Specification | Details |
|---|---|
| Camera Type | Visible Light Camera |
| CMOS | 1/2.7" HDR CMOS Sensor |
| Dynamic Range | 83 dB |
| Optical Wavelength | 440 nm ~ 650 nm |
| Image Type | 24-bit RGB True Color |
| Image Resolution | 720W × 1280H |
| Default Output Format | MJPEG |
| Distortion Rate | ≤1% |
| Field of View |
Horizontal: 40° Vertical: 65° Diagonal: 74° |
| Maximum Frame Rate | 12 fps |
| Recognition Distance | 40 cm ~ 90 cm / 16 inch ~ 35 inch |
Infrared Light Camera Specifications
| Specification | Details |
|---|---|
| Camera Type | Infrared Light Camera |
| Optical Wavelength | 850 nm |
| Image Type | 256 Grayscale Levels |
| Image Resolution | 720W × 1280H |
| Default Output Format | MJPEG |
| Recognition Technology | Near-Infrared Facial Recognition |
Biometric Security Features
- Dual-lens facial biometric imaging.
- Visible light RGB facial image capture.
- Near-infrared grayscale facial image capture.
- LiveFace liveness detection.
- Anti-spoofing protection.
- High-quality facial image acquisition.
- Accurate biometric identification support.
Applications
- Facial Recognition Systems
- Biometric Access Control
- Time Attendance Systems
- Secure Identity Verification
- Visitor Management Systems
- Security Authentication Systems
- Face Recognition Terminals
- Integrated Biometric Devices
Why Choose AMT-FAM-10?
- Dual-lens architecture combines visible light and NIR facial imaging.
- Captures both RGB true-color and infrared grayscale facial images.
- Supports high-quality biometric face recognition.
- Armatura FaceLite and LiveFace algorithms enhance recognition and liveness detection.
- Provides highly secure anti-spoofing protection.
- Compact module design simplifies integration into compatible biometric systems.
- USB 2.0 connectivity provides convenient host integration.
- Supports recognition at a distance of 40 cm to 90 cm for the visible light camera.
Frequently Asked Questions
The AMT-FAM-10 is a dual-lens face module that combines Near-Infrared and visible light cameras for biometric facial recognition.
The module captures 24-bit RGB true-color images using its visible light camera and 256-level grayscale images using its infrared camera.
Yes. The AMT-FAM-10 is powered by Armatura FaceLite and LiveFace algorithms and provides liveness detection for anti-spoofing protection.
The specified recognition distance for the visible light camera is 40 cm to 90 cm (approximately 16 to 35 inches).
The AMT-FAM-10 uses a USB 2.0 interface for connection with compatible host systems.
The module supports Armatura FaceLite SDK 12.0.
