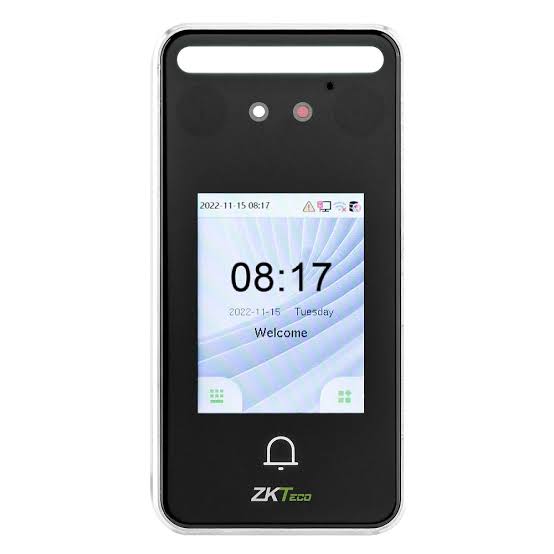

ZKTeco SpeedFace V3L Lite Entry-Level Face Recognition Terminal
ZKTeco SpeedFace V3L Lite Entry-Level Face Recognition Terminal
Couldn't load pickup availability
Product Details
SpeedFace-V3L (Lite) – Visible Light Facial Recognition Terminal
The ZKTeco SpeedFace-V3L (Lite) is a Linux-based Access Control and Time Attendance Terminal designed to provide secure, convenient, and touchless user authentication. It combines visible light facial recognition with RFID card and password verification to provide flexible authentication options for modern access control applications.
The SpeedFace-V3L (Lite) supports different card technologies, including 125kHz ID cards and 13.56MHz IC cards, allowing the terminal to be configured according to specific access control requirements. Its IP65 protection rating provides resistance against water and dust, making it suitable for demanding installation environments.
The terminal also supports an HD video door phone function through the ZSmart mobile application, allowing users to monitor and communicate with visitors remotely. The device includes an embedded web server for convenient system configuration and management.
Key Features
Provides convenient and touchless facial authentication using ZKTeco's visible light facial recognition technology.
Supports facial recognition, RFID card authentication, and password verification for flexible access control.
The IP65-rated enclosure provides protection against dust and water, making the terminal suitable for indoor and selected outdoor applications.
Supports 125kHz ID cards and optional 13.56MHz IC cards to accommodate different credential requirements.
The terminal features a hidden supplement light with adjustable brightness to support facial recognition in different lighting conditions.
The HD video door phone function allows users to monitor and communicate with visitors through the ZSmart mobile application. The video door phone function is subject to availability.
An integrated web server allows convenient system configuration and device management.
The terminal supports up to 200,000 log events, 3,000 RFID cards, and 500 face templates as standard, with optional higher capacities available.
Authentication Methods
- Visible Light Facial Recognition
- 125kHz ID Card
- 13.56MHz IC Card (Optional)
- Password / PIN
- Multiple Verification Methods
Access Control Features
- Third-party electric lock connection
- Door sensor connection
- Exit button connection
- Tamper switch alarm
- Wired doorbell support
- Web-based device configuration
- HTTPS support
- Record query
- Schedule bell
- Automatic daylight saving time (DST)
- ADMS support
Applications
- Corporate Offices
- Commercial Buildings
- Educational Institutions
- Factories and Industrial Facilities
- Retail Stores
- Residential Buildings
- Government Facilities
- Time Attendance Systems
- Access Control Systems
- Indoor and Sheltered Outdoor Installations
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | SpeedFace-V3L (Lite) |
| Product Type | Linux-Based Access Control & Time Attendance Terminal with Visible Light Facial Recognition |
| Display | 2.4-inch Touch Screen |
| Biometric | Face |
| Card Technology | RFID ID Card / IC Card (Optional) |
| User Capacity | 3,000 (Optional: 10,000) |
| Card Capacity | 3,000 (Optional: 10,000) |
| Face Capacity | 500 (1:N) (Optional: 1,500) |
| Logs Capacity | 200,000 |
| Facial Recognition Distance | 0.3 m ~ 1.2 m |
| Facial Recognition Rate | FAR ≤ 0.001%; FRR ≤ 1% |
| Card Reading Distance | ≤ 3 cm |
| Facial Recognition Algorithm | ZKFace 3.5 |
| Communication | TCP/IP, Wi-Fi (Optional) |
| Operating System | Linux |
| CPU | 1GHz Dual Core CPU |
| Memory | 256MB RAM / 512MB ROM |
| Camera | 1MP Binocular Camera |
| Wi-Fi | IEEE 802.11b/g/n, 2.4GHz |
| Supplement Light | Hidden supplement light with adjustable brightness |
| Standard Functions | ADMS, DST, Camera, 14-digit User ID, ID Card, Wired Doorbell, Record Query, Tamper Switch Alarm, Schedule Bell, T9 Input, Webserver, Multiple Verification Methods, HTTPS |
| Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button |
| Supported Software | ZKBio CVAccess / ZSmart App (Optional) |
| HD Video Door Phone | Supported through ZSmart Mobile App; function coming soon |
| Power Supply | 12V 1.5A |
| Ingress Protection Rating | IP65 |
| Operating Temperature | -5°C ~ 45°C |
| Operating Humidity | 10% ~ 90% RH |
| Dimensions (L × W × D) | 116.8 × 58.3 × 17.0 mm |
| Certifications | ISO 9001, ISO 14001, CE, FCC, RoHS |
Capacity & Performance
- User Capacity: 3,000 standard / 10,000 optional
- Face Capacity: 500 standard / 1,500 optional
- RFID Card Capacity: 3,000 standard / 10,000 optional
- Log Capacity: 200,000 events
- Facial Recognition Distance: 0.3 m to 1.2 m
- Card Reading Distance: Up to 3 cm
- Facial Recognition Algorithm: ZKFace 3.5
Why Choose SpeedFace-V3L (Lite)?
- Compact Linux-based access control and time attendance terminal.
- Touchless visible light facial authentication.
- Multiple verification methods for flexible access control.
- IP65 waterproof and dustproof protection.
- Supports both ID and optional IC card technologies.
- Hidden adjustable supplement light for improved facial recognition.
- Embedded web server for easy configuration.
- Supports ZKBio CVAccess and optional ZSmart App integration.
- High event, card, user, and biometric storage capacity.
- Third-party electric lock, door sensor, and exit button interfaces.
Frequently Asked Questions
The SpeedFace-V3L (Lite) supports visible light facial recognition, RFID card authentication, and password/PIN verification. It supports 125kHz ID cards and optional 13.56MHz IC cards.
Yes. The terminal has an IP65 protection rating, providing protection against dust and water.
The facial recognition distance is approximately 0.3 m to 1.2 m.
The standard face capacity is 500 templates, with an optional capacity of up to 1,500 face templates.
The standard RFID card capacity is 3,000 cards, with an optional capacity of up to 10,000 cards.
Yes. The SpeedFace-V3L (Lite) supports an HD video door phone function through the ZSmart mobile application. According to the supplied specifications, this function is coming soon.
The terminal supports ZKBio CVAccess, while ZSmart App support is available as an optional function.
Yes. With its IP65 protection rating, the terminal is suitable for outdoor use where the installation environment and temperature remain within the specified operating conditions.
