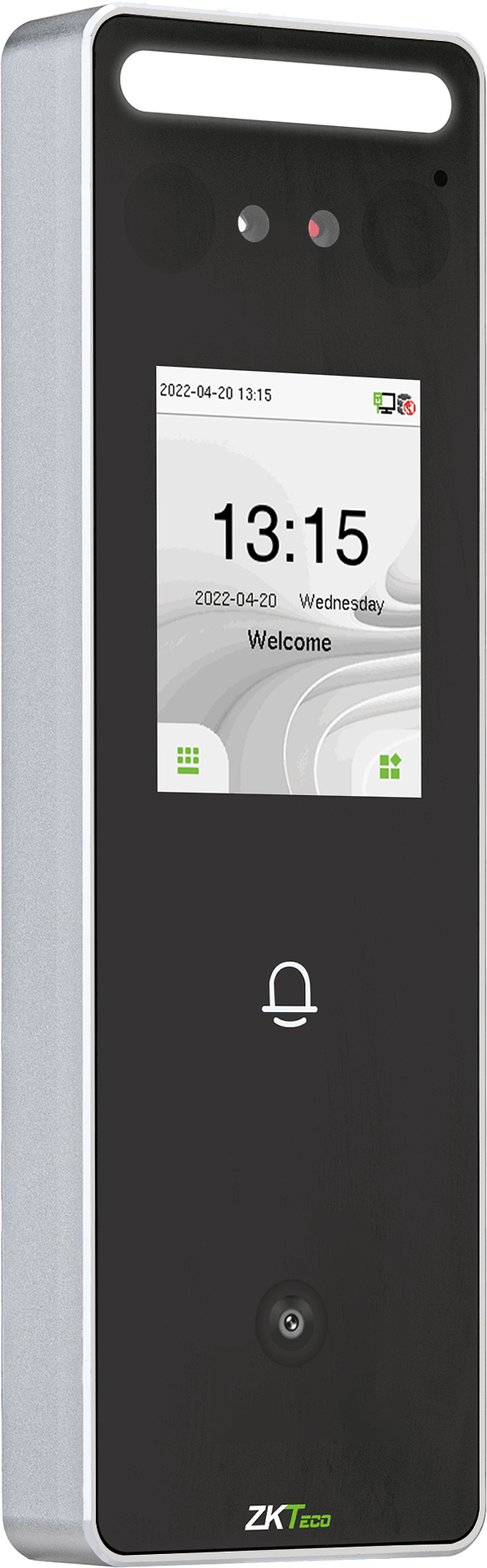

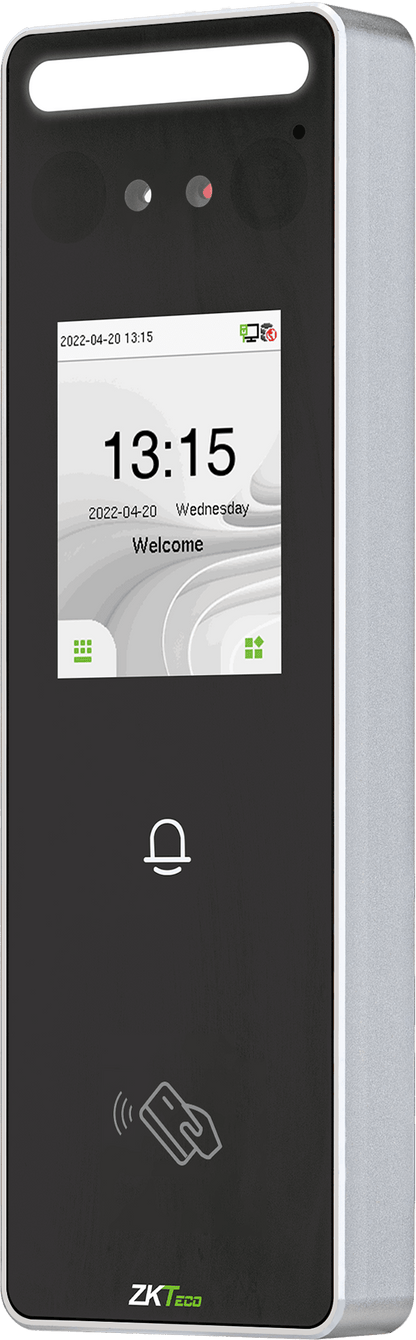

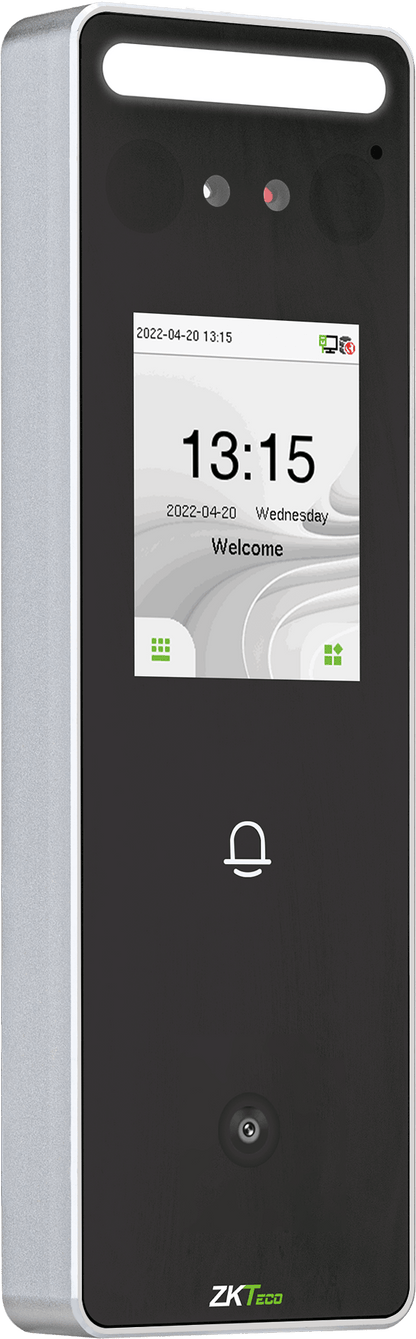

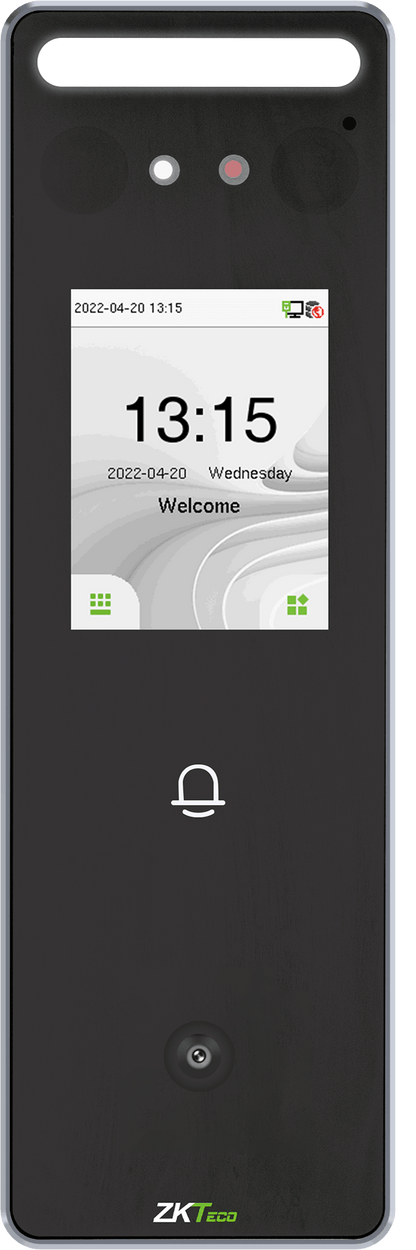

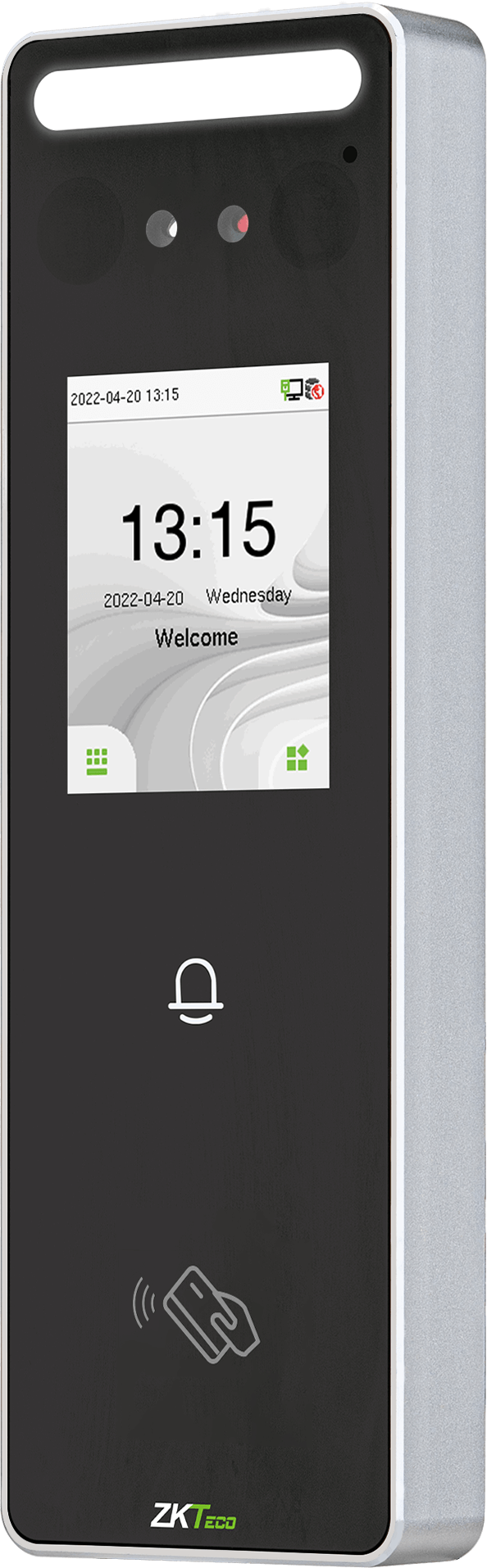

ZKTeco SpeedFace-V3L Compact Face Recognition Attendance Terminal
ZKTeco SpeedFace-V3L Compact Face Recognition Attendance Terminal
Couldn't load pickup availability
Product Details
ZKTeco SpeedFace-V3L Series Facial & Fingerprint Access Control Terminal
The ZKTeco SpeedFace-V3L Series is an efficient Linux-based biometric access control terminal designed for secure and convenient identity verification. It combines visible-light facial recognition and fingerprint verification to provide reliable multi-factor authentication for modern access control environments.
Equipped with a 1MP binocular camera, adjustable LED fill light and advanced anti-spoofing technology, the SpeedFace-V3L provides fast facial authentication while helping protect against fake photos and video-based attacks. Facial recognition can be completed in less than 1 second.
The terminal supports up to 3,000 users, 3,000 fingerprints, 3,000 cards and 200,000 access logs. With TCP/IP, optional WiFi, Wiegand and RS485 communication interfaces, it can be integrated into a wide range of access control systems and managed through ZKBio Access.
Key Features
- Linux-based biometric access control terminal.
- Visible-light facial recognition technology.
- Fingerprint authentication.
- Dual biometric authentication methods.
- Advanced facial anti-spoofing technology.
- 1MP binocular camera.
- Adjustable LED fill light.
- Facial recognition speed of less than 1 second.
- 2.4-inch touch screen.
- Up to 3,000 users.
- Up to 500 facial templates.
- Up to 3,000 fingerprint templates.
- Up to 3,000 cards.
- Storage for up to 200,000 logs.
- TCP/IP communication.
- Optional WiFi communication.
- Wiegand input/output.
- RS485 communication.
- IP65-rated protection.
- Compatible with ZKBio Access software.
Product Advantages
- Combines facial and fingerprint authentication in a single compact terminal.
- Visible-light facial recognition provides fast and convenient user authentication.
- Advanced anti-spoofing technology helps protect against fake facial images and videos.
- Large user and credential capacity makes it suitable for organizations with multiple users.
- Multiple communication interfaces provide flexible access control integration.
- IP65 protection allows use in demanding indoor and suitable semi-outdoor environments.
- Linux operating system provides a stable platform for access control applications.
- Optional WiFi provides additional installation flexibility.
Facial Recognition
Visible-Light Facial Recognition
The SpeedFace-V3L uses visible-light facial recognition technology to authenticate authorized users quickly and conveniently without requiring physical contact with the terminal.
Fast Authentication
The terminal provides a facial recognition speed of <1 second, supporting efficient access management in offices, commercial buildings and other controlled environments.
Anti-Spoofing Protection
The SpeedFace-V3L incorporates an advanced facial anti-spoofing algorithm designed to help protect against fraudulent authentication attempts using fake photographs and videos.
Fingerprint Authentication
Fingerprint Verification
The terminal supports up to 3,000 fingerprint templates, providing an additional biometric authentication method for secure access control.
Dual Biometric Authentication
By combining facial recognition and fingerprint verification, the SpeedFace-V3L provides flexible authentication options for different access control requirements.
Credential & User Capacity
Large Credential Capacity
The SpeedFace-V3L supports up to 3,000 users, 3,000 cards and 3,000 fingerprints, making it suitable for small and medium-sized organizations as well as larger access control deployments.
Facial Template Capacity
The SpeedFace-V3L supports up to 500 facial templates, allowing authorized users to be registered for fast facial authentication.
Large Log Storage
The terminal can store up to 200,000 access logs, supporting record management and access activity tracking.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SpeedFace-V3L Series |
| Product Type | Facial Recognition & Fingerprint Access Control Terminal |
| Operating System | Linux |
| Display | 2.4-inch Touch Screen |
| User Capacity | 3,000 |
| Card Capacity | 3,000 |
| Face Capacity | 500 |
| Fingerprint Capacity | 3,000 |
| Logs Capacity | 200,000 |
| Facial Recognition Speed | <1 second |
| Camera | 1MP Binocular Camera |
| Fill Light | Adjustable LED Fill Light |
| CPU | 1.2GHz Dual Core CPU |
| RAM | 256MB |
| Flash Memory | 512MB |
| Communication | TCP/IP, WiFi (Optional), Wiegand Input/Output, RS485 |
| Power Supply | 12V 3A |
| Ingress Protection Rating | IP65 |
| Operating Temperature | -5°C to 45°C |
| Operating Humidity | 10% to 90% RH |
| Supported Software | ZKBio Access |
Communication & Connectivity
- TCP/IP network communication.
- Optional WiFi connectivity.
- Wiegand input/output.
- RS485 communication.
- Compatible with integrated access control systems.
- Supports centralized management through ZKBio Access.
Access Control Interface
Flexible Door Control
The SpeedFace-V3L provides an access control interface for integration with a third-party electric lock, door sensor, exit button, alarm output and auxiliary input.
Advanced Access Functions
Standard access control functions include access levels, groups, holidays, anti-passback, record query, tamper switch alarm and multiple anti-passback capabilities.
Standard Functions
- ADMS support.
- DST support.
- Camera support.
- 14-digit User ID.
- Access Levels.
- Groups.
- Holidays.
- Anti-passback.
- Record Query.
- Tamper Switch Alarm.
- Multiple Anti-Passback.
IP65 Protection
The SpeedFace-V3L features an IP65-rated enclosure, providing protection against dust and water ingress. This makes the terminal suitable for a variety of indoor and appropriate protected access control installations.
Touch Screen & User Interface
The terminal features a 2.4-inch touch screen that provides an intuitive interface for user interaction and device configuration. The display helps simplify everyday operation and access management.
Hardware & Performance
Powerful Processing Platform
The SpeedFace-V3L is powered by a 1.2GHz dual-core CPU with 256MB RAM and 512MB Flash, providing the processing and storage resources required for biometric access control applications.
Binocular Camera System
The integrated 1MP binocular camera supports facial recognition, while the adjustable LED fill light helps provide suitable illumination for biometric authentication.
Applications
- Office Buildings
- Corporate Entrances
- Commercial Buildings
- Factories & Industrial Facilities
- Warehouses
- Educational Institutions
- Hotels & Hospitality
- Residential Buildings
- Government Facilities
- Restricted Access Areas
- Employee Access Control
- Secure Door Access
Why Choose ZKTeco SpeedFace-V3L?
- Combines facial recognition and fingerprint authentication.
- Fast facial recognition speed of less than 1 second.
- Advanced anti-spoofing protection against fake photos and videos.
- Supports up to 3,000 users and fingerprints.
- Supports up to 500 facial templates.
- Stores up to 200,000 access logs.
- 2.4-inch touch screen for convenient operation.
- TCP/IP, RS485 and Wiegand connectivity.
- Optional WiFi communication.
- IP65-rated protection.
- Compatible with ZKBio Access software.
- Suitable for modern biometric access control applications.
Package Includes
- 1 × ZKTeco SpeedFace-V3L Biometric Access Control Terminal
- Installation Accessories
- Installation Documentation
