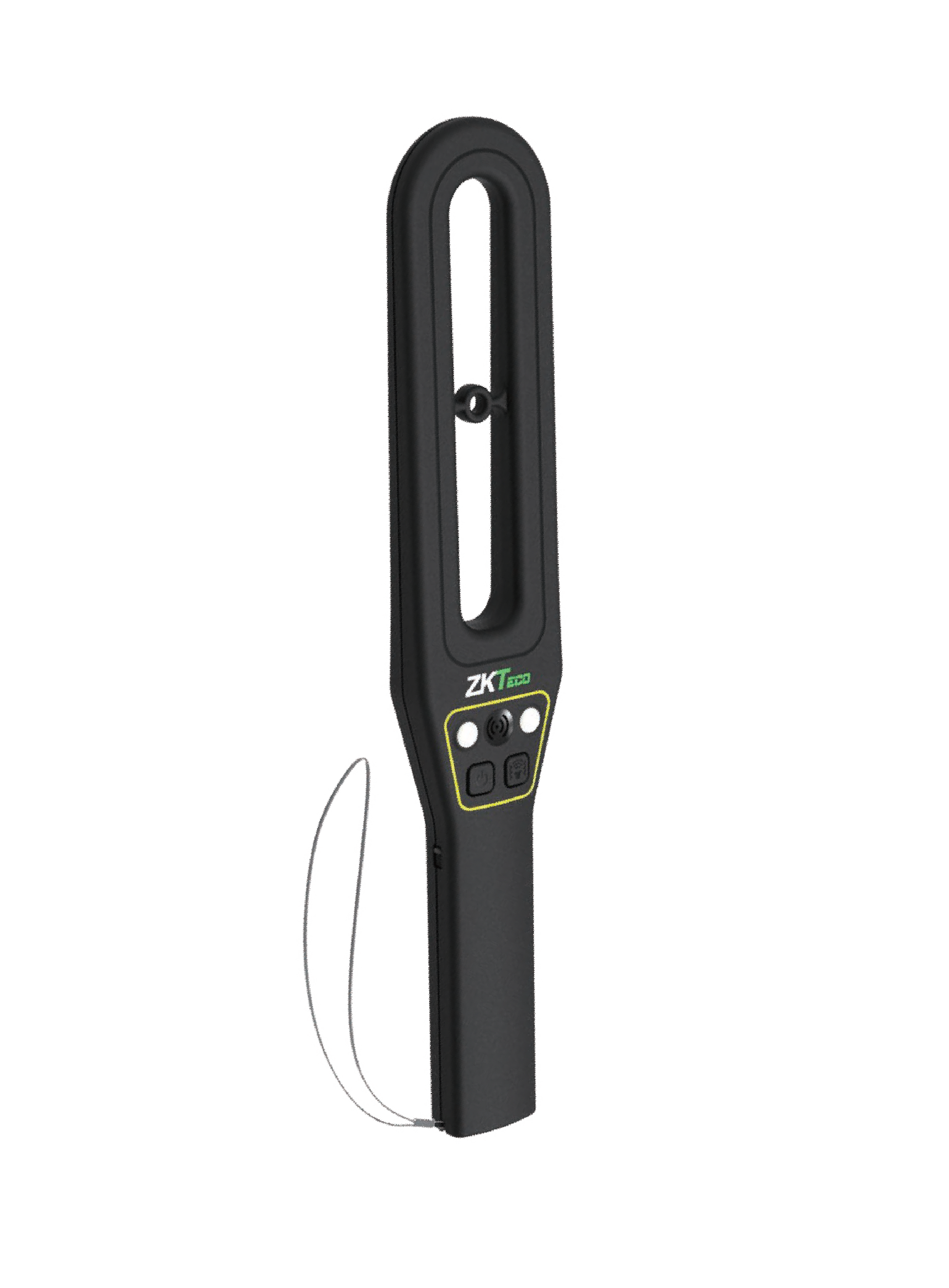

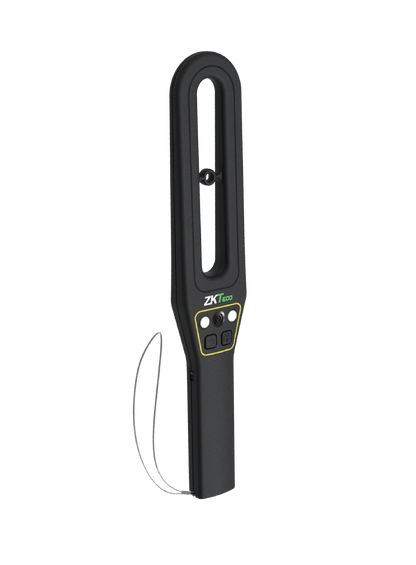

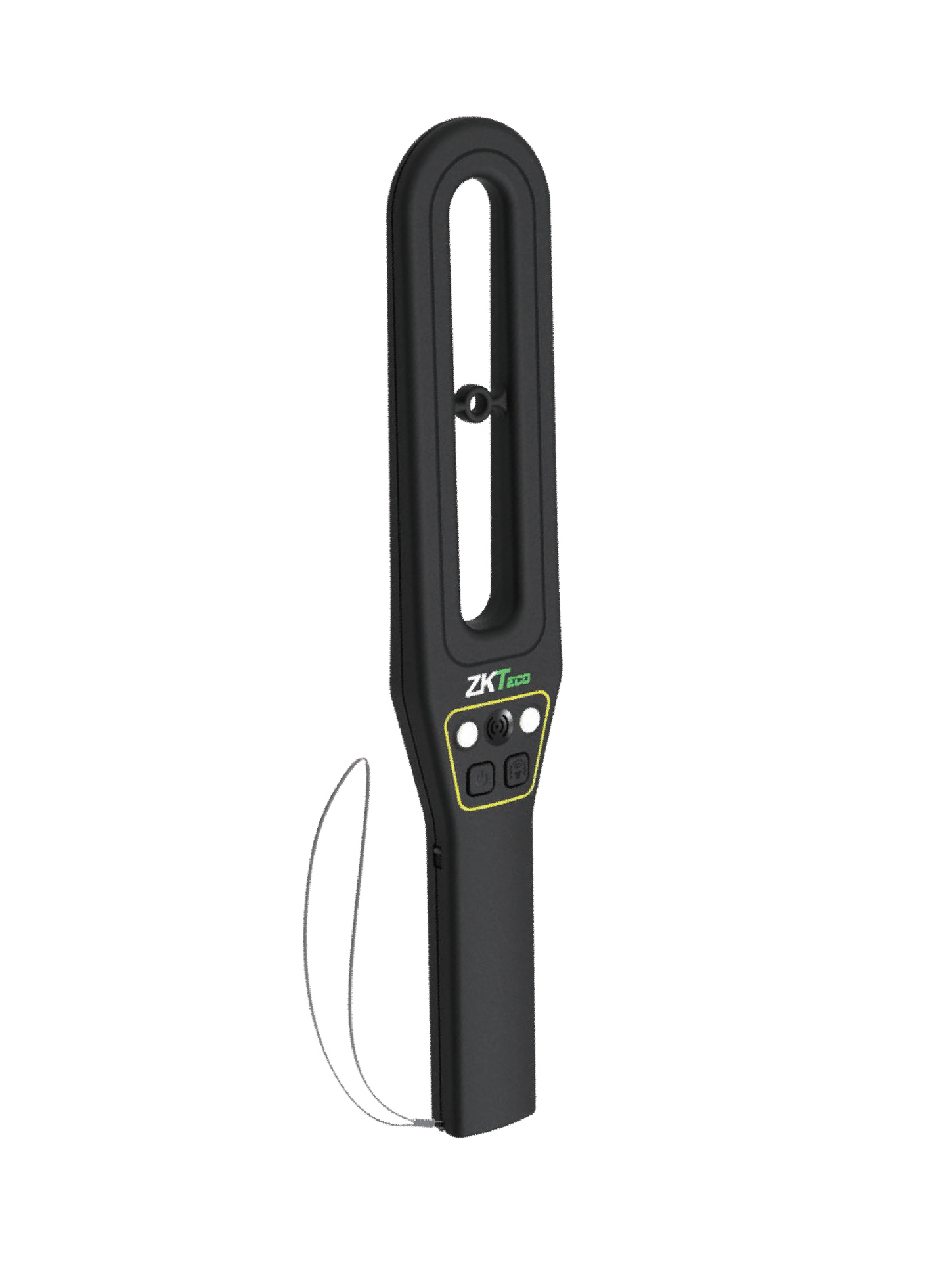

ZKTeco ZK-D160 – Handheld Metal Detector
The ZKTeco ZK-D160 is a compact handheld security metal detector designed to help identify concealed metal objects in security inspection environments. It is suitable for detecting potentially prohibited or unauthorized metal items at security checkpoints, factories, educational institutions, and other controlled areas.
Featuring a digital design with strong anti-interference capability, the ZK-D160 provides adjustable high, medium, and low sensitivity levels. Its high sensitivity to metal enables convenient inspection, while two selectable alarm modes provide both audible and vibration alerts with visual indication.
The detector operates using two commonly available AA batteries and can provide more than 70 hours of continuous operation. It also supports charging and low-battery indication, with a Ni-MH battery and DC charger available as optional accessories.
Key Features
The ZK-D160 provides high sensitivity to metal objects, helping security personnel identify concealed metallic items during inspections.
Three sensitivity levels—High, Medium, and Low—allow users to adjust the detector according to different inspection requirements.
The digital design provides strong anti-interference capability for stable and convenient operation in security inspection environments.
Provides selectable sound and light alarm or vibration and light alarm modes for flexible security screening.
Uses two AA batteries and can operate continuously for more than 70 hours, making it suitable for extended security inspection duties.
The detector provides a low-battery prompt to help users identify when the power source requires replacement or charging.
With a net weight of only 280 g and a compact handheld form factor, the ZK-D160 is convenient for security personnel to carry and operate.
A Ni-MH rechargeable battery and DC charger are available as optional accessories for users who prefer a rechargeable power solution.
Alarm Modes
- Sound & Light Alarm: Audible and visual indication when metal is detected.
- Vibration & Light Alarm: Silent vibration alert combined with visual indication.
Sensitivity Levels
- High Sensitivity
- Medium Sensitivity
- Low Sensitivity
Applications
- Security Inspection Checkpoints
- Factories and Industrial Facilities
- Educational Institutions
- Government Buildings
- Corporate Offices
- Warehouses
- Event and Venue Security
- Entrance Screening Areas
- Restricted Access Areas
- General Security Inspection
Security Applications
- Detection of concealed metal objects during security screening
- Inspection for prohibited metallic items
- Factory security and prevention of unauthorized removal of valuable objects
- Educational security screening for electronic devices and other metallic items
Specifications
| Parameter | Specification |
|---|---|
| Model | ZK-D160 |
| Product Type | Handheld Metal Detector |
| Detection | High Sensitivity to All Metals |
| Sensitivity Levels | High / Medium / Low |
| Alarm Modes | Sound & Light Alarm / Vibration & Light Alarm |
| Housing Material | ABS |
| Dimensions (L × W × H) | 400 × 72 × 26 mm |
| Packing Dimensions (L × W × H) | 405 × 76 × 30 mm |
| Net Weight | 280 g |
| Package Weight | 360 g |
| Power Consumption | <50 mW |
| Power Supply | Two AA Batteries |
| Battery Runtime | More Than 70 Hours of Continuous Operation |
| Working Frequency | 135 kHz |
| Low Battery Prompt | Supported |
| Charging | Supported |
| Optional Power Accessories | Ni-MH Battery & DC Charger |
Frequently Asked Questions
The ZK-D160 is a handheld metal detector used for security screening and inspection of concealed metal objects in locations such as factories, schools, offices, and security checkpoints.
The detector provides three adjustable sensitivity levels: High, Medium, and Low.
The ZK-D160 provides two alarm modes: sound and light, or vibration and light. This allows users to select either an audible or vibration-based alert.
The ZK-D160 uses two AA batteries and can operate continuously for more than 70 hours under the specified conditions.
Yes. A Ni-MH rechargeable battery and DC charger are available as optional accessories.
Yes. The ZK-D160 provides a low-battery prompt to alert the user when the battery power is running low.
The ZK-D160 operates at a working frequency of 135 kHz.
Yes. Its compact handheld design and 280 g net weight make it convenient for security personnel to carry and use during inspections.
