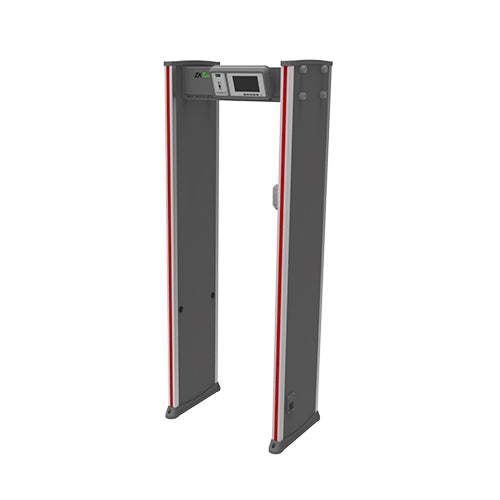

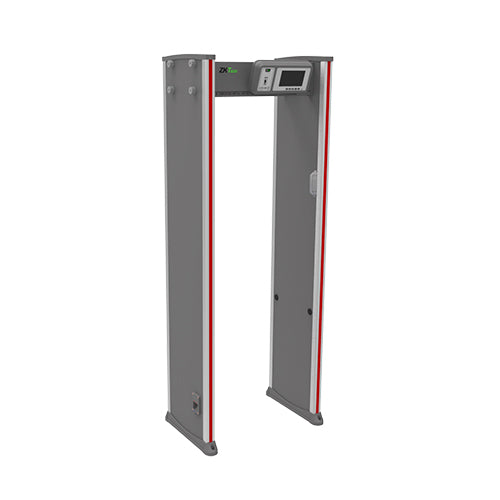

ZKTeco ZK-D3180V Walk Through Metal Detector
ZKTeco ZK-D3180V Walk Through Metal Detector
Regular price
Rs. 100,155.00
Regular price
Rs. 120,186.00
Sale price
Rs. 100,155.00
Quantity
Couldn't load pickup availability
Product Details
ZK-D3180V Walk Through Metal Detector
The ZK-D3180V is a high-precision walk-through metal detector designed for reliable and accurate security screening. It features 18 detection zones with 500 adjustable sensitivity levels per zone, allowing security personnel to detect small metal threats efficiently.

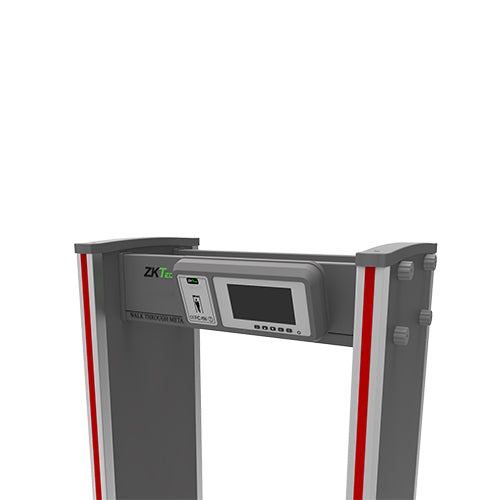

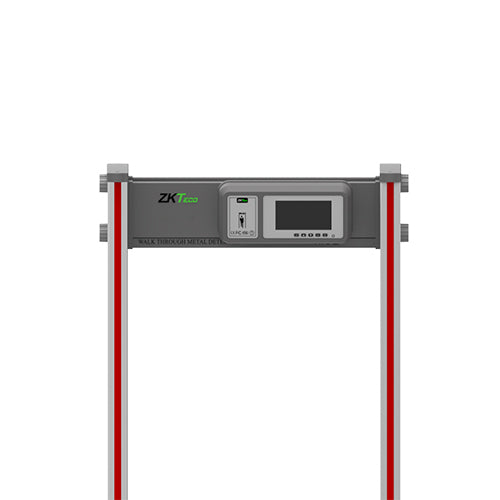

The ZK-D3180V is equipped with an embedded 2MP camera and an overhead control unit capable of displaying live video, alarm records, alarm count, pass count, channel information, date and time, and battery status. Its robust construction uses flame-retardant materials and is designed for dependable operation in demanding security environments.
Key Features
- 18 detection zones for precise security screening.
- 500 adjustable sensitivity levels.
- Embedded 2MP monocular camera.
- Live video monitoring through the overhead control unit.
- Photo linkage with up to 6 alarm records.
- Alarm count and pass count display.
- Automatic Detection Mode and Infrared Detection Mode.
- Detection distance from 20 mm to 2000 mm.
- Throughput of up to 40 persons per minute.
- 16 selectable alarm tones.
- Adjustable alarm volume from 0 to 100.
- Red LED visual indication when metal contraband is detected.
- Self-diagnosis functionality.
- 24/7 continuous operation capability.
- Remote control included as an accessory.
- Compatible with ZKBio SIS and ZK Metal Detector software.
Product Advantages
- 18-zone detection provides accurate localization of metal threats.
- 500 sensitivity levels allow precise adjustment for different screening requirements.
- Integrated camera provides visual evidence associated with alarm events.
- Overhead control unit provides convenient access to live video and screening information.
- High throughput supports busy security checkpoints.
- Multiple alarm tones and adjustable volume provide flexible alert configuration.
- Built-in pass and alarm counting assists with security monitoring.
- Self-diagnosis helps monitor device operating status.
- Designed for continuous 24/7 operation.
Technical Specifications
| Specification | Details |
|---|---|
| Model | ZK-D3180V |
| Product Type | Walk Through Metal Detector |
| Physical Keypad | 5 Keys |
| Detection Zones | 18 Zones |
| Sensitivity Level | 500 Levels |
| Detection Mode | Automatic Detection Mode / Infrared Detection Mode (Default) |
| Maximum Detection Distance | 20 mm - 2000 mm |
| Throughput | 40 Persons per Minute |
| Camera | Embedded Monocular 2MP Camera |
| Photo Resolution | 240 × 320 |
| Storage of Records | >100,000 Records |
| Overhead Control Unit | Live Video, Photo, Alarm Count, Pass Count, Channel, Date & Time, Battery Indicator |
| Photo Alarm Linkage | Up to 6 Alarm Records |
| Alarm | 16 Types of Alarm Tones (User Selectable) |
| Alarm Volume | 0 - 100 (Default Value: 80) |
| Visual Indicators |
2 Sets of Red LEDs distributed on the left and right door panels. Steady Red = Metal Contraband Detected |
| Detected Contrabands | Ferrous and Non-Ferrous Metal Weapons |
| Self-Diagnosis | Yes |
| Enclosure Material | Flame Retardant ABS Polymer, Medium Density Fiberboard, PVC |
| Ingress Protection Rating |
N/A (Waterproof and Dustproof) N/A (Vandal Resistant) |
| Power Supply | AC 100V to 240V (DC 12V / 3A) |
| Input Voltage | DC 12V |
| Operating Current | 1.5A |
| Operating Power | 18W |
| Operating Time | 24/7 Operation Capability (Continuous Operation) |
| Operating Frequency | 5.7KHz to 9.6KHz |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -25°C to 60°C |
| Operating Humidity | <95% RH (Non-condensing) |
| Dimensions (L × W × H) | 2226 × 845 × 580 mm |
| Lane Size (L × W × H) | 2000 × 710 × 498 mm |
| Dimensions with Packaging | 2280 × 347 × 660 mm |
| Application Environment | Indoor |
| Certifications | CE, FCC, ISO9001 |
| Supported Software | ZKBio SIS / ZK Metal Detector |
| Accessories | Remote Control |
Advanced Monitoring Features
- Live Video: The overhead control unit provides live video monitoring through the embedded camera.
- Alarm Photo Records: Photos can be linked with up to 6 alarm records for improved event monitoring.
- Alarm Count: Displays the number of detected alarm events.
- Pass Count: Helps monitor the number of people passing through the detector.
- Channel Information: Provides channel-related information through the overhead control unit.
- Date & Time: Displays current date and time for convenient event monitoring.
- Battery Indicator: Provides battery status information on the control unit.
Applications
- Corporate Offices
- Government Buildings
- Airports and Transportation Facilities
- Courthouses
- Prisons and Correctional Facilities
- Industrial Facilities
- Commercial Buildings
- Event Venues
- Security Checkpoints
- High-Security Facilities
Why Choose the ZK-D3180V?
- 18-zone metal detection for precise threat localization.
- 500 sensitivity levels for detailed detection adjustment.
- Integrated 2MP camera with live video functionality.
- Alarm photos can be linked to up to 6 alarm records.
- More than 100,000 records can be stored.
- Supports up to 40 persons per minute throughput.
- 16 selectable alarm tones with adjustable volume.
- Pass count and alarm count monitoring.
- Self-diagnosis functionality for device monitoring.
- 24/7 continuous operation capability.
- Compatible with ZKBio SIS and ZK Metal Detector software.
- Compact and robust construction for indoor security screening applications.
