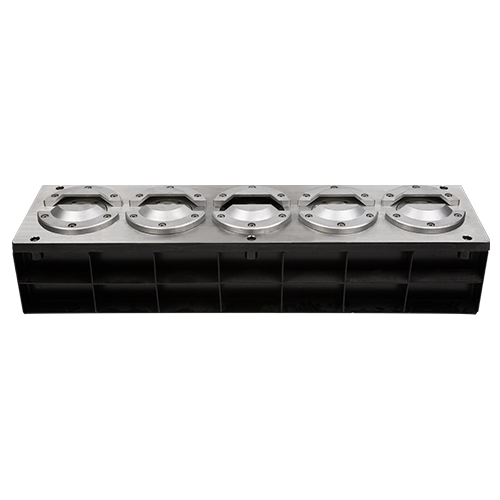

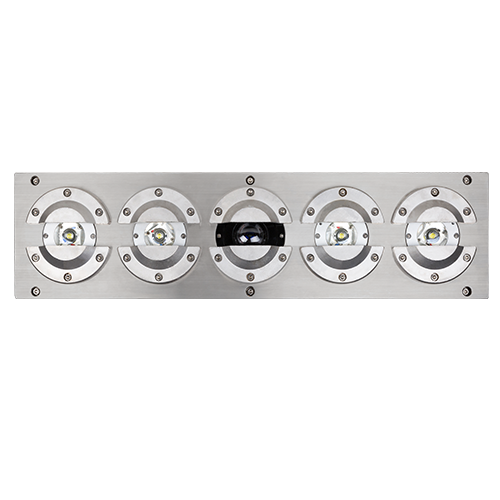

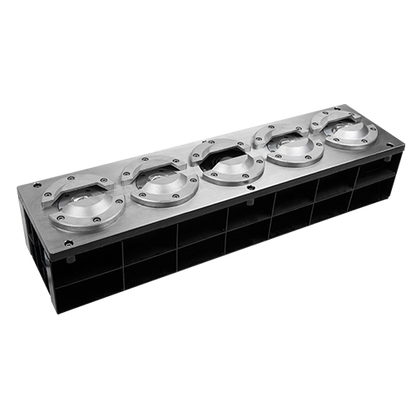

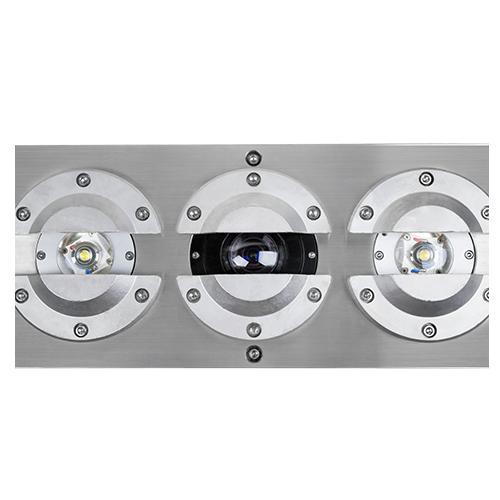

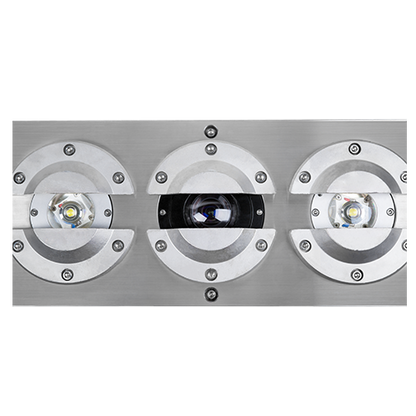

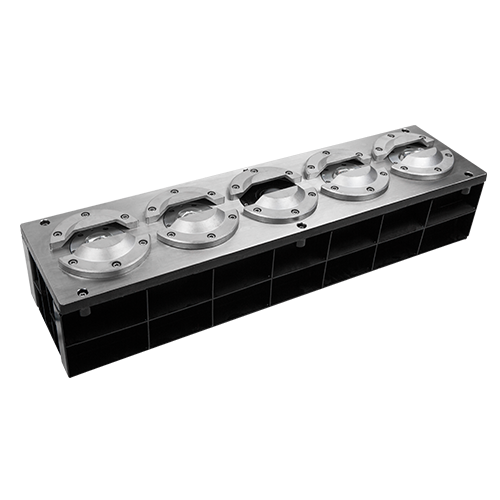

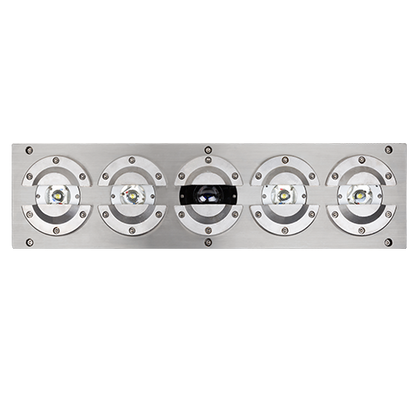

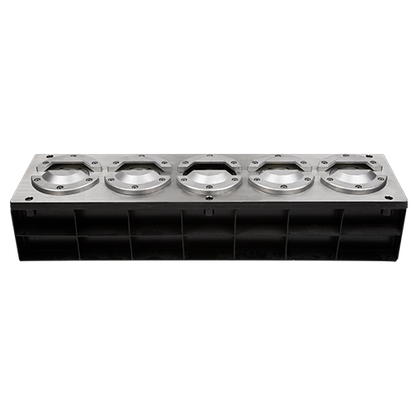

ZKTeco ZK-VSCN200 Permanent Under Vehicle Inspection System

ZK-VSCN200 Flush-Mount Under-Vehicle Scanning System

The ZK-VSCN200 is a flush-mount under-vehicle scanning system designed for comprehensive security inspection of vehicles. It uses high-speed line-scan CCD dynamic imaging technology to rapidly capture high-resolution images of a vehicle's undercarriage as the vehicle passes through the scanning area.

The system is suitable for inspecting a wide range of vehicles, including passenger cars, vans, buses, and tractor-trailers. Its specially designed CCD camera angles provide a wide field of view to help operators identify contraband or suspicious objects attached to the underside of vehicles.

Constructed from 304 stainless steel and featuring an IP68 protection rating for the scanner, the ZK-VSCN200 is designed for reliable operation in demanding environments. It can also integrate with surveillance cameras or License Plate Recognition (LPR) systems to associate vehicle license plate information with undercarriage images.

Key Features

• Flush-mount under-vehicle scanning system.
• High-speed line-scan CCD dynamic imaging technology.
• Rapid generation of high-resolution undercarriage images.
• Effective field of view of ≥170°.
• Designed for passenger cars, vans, buses, and tractor-trailers.
• 304 stainless steel scanner construction.
• IP68 protection rating for the scanner.
• Integrated 2MP HD surveillance camera.
• Supports integration with surveillance cameras and LPR systems.
• Can link license plate information with undercarriage images.
• Suitable for indoor and outdoor scanner installation.

Product Advantages

• High-speed scanning allows vehicles to be inspected efficiently.
• Wide ≥170° field of view provides extensive undercarriage coverage.
• High-resolution imaging helps operators inspect vehicle undersides in detail.
• 304 stainless steel construction provides durability for demanding environments.
• IP68-rated scanner provides protection against water and dust.
• LPR integration enables license plate and undercarriage image association.
• Suitable for high-security facilities requiring comprehensive vehicle screening.

Technical Specifications

Computer Specifications

Power & Operating Environment

System Components

• Scanner: Flush-mounted under-vehicle scanning unit for capturing vehicle undercarriage images.
• Console: Computer and display system for viewing and recording inspection images.
• Distribution Box: System connection and power distribution component.
• 2MP HD Camera: Surveillance camera for additional vehicle monitoring.

Applications

• Government Buildings
• Banks and Financial Institutions
• Customs Offices
• High-Security Facilities
• Corporate Security Entrances
• Industrial Facilities
• Restricted Access Areas
• Vehicle Inspection Checkpoints
• Security Screening Facilities

Why Choose the ZK-VSCN200?

• High-speed CCD imaging enables efficient vehicle undercarriage inspection.
• ≥170° effective field of view provides broad scanning coverage.
• IP68-rated scanner is designed for demanding environments.
• 304 stainless steel construction provides robust scanner durability.
• 2MP HD surveillance camera provides additional visual monitoring.
• LPR integration can associate license plate information with inspection images.
• Supports both indoor and outdoor scanner installation.
• Designed for comprehensive security screening of multiple vehicle types.
