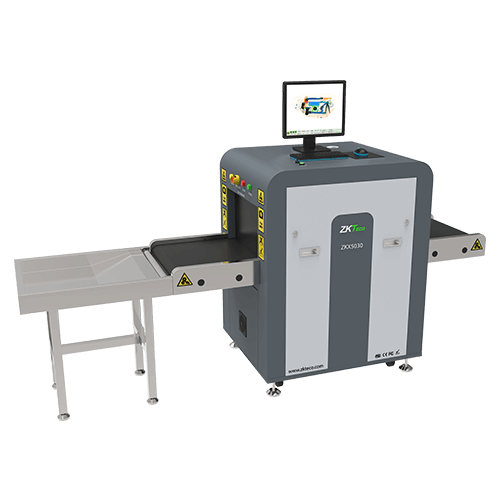

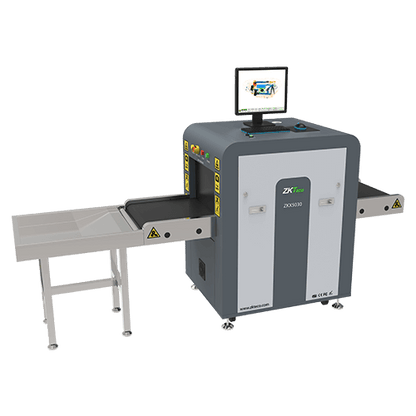

ZKTeco ZKX5030A X-Ray Baggage Scanner
ZKTeco ZKX5030A X-Ray Baggage Scanner
Couldn't load pickup availability
Product Details
ZKTeco ZKX5030A X-Ray Inspection System
The ZKTeco ZKX5030A is a compact X-ray inspection system designed for the security screening of briefcases, carry-on luggage, small parcels and other compact cargo. Featuring a 500 mm × 300 mm tunnel opening, the system provides an effective inspection solution for locations where space and mobility are important.
Its compact footprint and practical dimensions make the ZKX5030A easy to relocate and suitable for installation in areas with narrow doorways or limited available space. It is well suited for stadiums, shopping malls, hotels, commercial facilities and similar security-sensitive locations.
The ZKX5030A uses a reliable high-quality X-ray generator and detector system combined with advanced image-processing algorithms to produce clear inspection images. This enables security operators to visually examine baggage and identify potentially dangerous or prohibited items.
Note: The ZKX5030A is equipped with a computer keyboard.
Key Features
Compact X-Ray Inspection Design
The compact design and small footprint make the ZKX5030A suitable for locations where installation space is limited and equipment may need to be relocated.
500 × 300 mm Tunnel Opening
The inspection tunnel provides a 500 mm width × 300 mm height opening, suitable for briefcases, carry-on luggage and small cargo packages.
Clear X-Ray Imaging
High-quality X-ray generation, detection and image-processing technology provides clear inspection images to help operators identify potential threat items.
Reliable Conveyor System
The conveyor operates at a speed of 0.20 m/sec and supports a maximum distributed load of up to 120 kg.
Single-Energy Detection
The system uses a single-energy detector with a single-view inspection configuration for efficient baggage screening.
Advanced Image Storage
The integrated computer system supports storage of up to 200,000 scanned images, allowing operators to retain inspection records for review.
ZKBio SIS Software
The ZKX5030A supports ZKBio SIS software and provides RJ45 TCP/IP communication for system connectivity.
Product Advantages
- Compact and space-saving X-ray inspection system.
- 500 × 300 mm inspection tunnel suitable for small and medium-sized baggage.
- Suitable for briefcases, carry-on luggage and small cargo packages.
- High-quality X-ray generator and detector technology.
- Clear inspection images for visual threat identification.
- Single-energy X-ray detection system.
- Conveyor load capacity of up to 120 kg with adequate load distribution.
- Compact design allows easier relocation and transportation.
- RJ45 TCP/IP communication interface.
- Supports ZKBio SIS software.
- Storage capacity of up to 200,000 scanned images.
- Low operating noise of less than 58 dB(A).
- Suitable for indoor security screening applications.
Inspection Applications
- Stadiums
- Shopping Malls
- Hotels
- Corporate Buildings
- Commercial Facilities
- Government Buildings
- Transportation Facilities
- Event Venues
- Security Checkpoints
- Small Cargo Inspection Areas
- Carry-On Baggage Screening
- Briefcase and Parcel Inspection
Conveyor & Tunnel Specifications
Tunnel Size
The ZKX5030A features a 500 mm × 300 mm tunnel opening for inspecting compact baggage and packages.
Conveyor Performance
The conveyor operates at 0.20 m/sec and supports a maximum distributed load of 120 kg.
Conveyor Height
The conveyor is positioned at a height of 650 mm, providing a practical loading height for baggage screening.
X-Ray Generator & Image Performance
| Parameter | Specification |
|---|---|
| Anode Voltage | 80 kV |
| Tube Current | 0.6 mA |
| Wire Resolution | 36 AWG |
| Steel Penetration | 8 mm |
| Spatial Resolution | Horizontal Φ1.3 mm / Vertical Φ1.0 mm |
| Penetration Resolution | 30 AWG |
| Generator Cooling | Sealed Oil Bath with Forced Air |
| Beam Direction | Vertically Upward |
| X-Ray Converter Type | L-Shaped Detector Line |
| Detector | Single-Energy Detector |
| View | Single-View |
Technical Specifications
| Specification | Details |
|---|---|
| Model | ZKTeco ZKX5030A |
| Product Type | X-Ray Inspection System |
| Tunnel Size | 500 mm × 300 mm |
| Conveyor Speed | 0.20 m/sec |
| Conveyor Load | 120 kg, Adequate Distribution, Maximum Load |
| Conveyor Height | 650 mm |
| Detector | Single-Energy Detector |
| View | Single-View |
| Supported Software | ZKBio SIS |
| Communication Interface | RJ45 (TCP/IP) |
| Dimensions (L × W × H) | 1701 mm × 796 mm × 1150 mm |
| Package Dimensions (L × W × H) | 2000 mm × 1000 mm × 1500 mm |
| Net Weight | 340 kg |
| Gross Weight | 410 kg with Package |
| Film Safety | ASA/ISO 1600 |
| Certifications | CE-EMC, CE-MD, FCC sDOC, FDA |
Computer Specifications
| Parameter | Specification |
|---|---|
| Operating System | Windows 10 |
| RAM | 8 GB |
| Storage | 128 GB SSD + 2 TB HDD |
| Maximum Image Storage | Up to 200,000 Scanned Images |
| Keyboard | Computer Keyboard Included |
Power & Environmental Specifications
| Parameter | Specification |
|---|---|
| System Power | 220 VAC ±10%, 50/60 Hz 110 VAC ±10%, 50/60 Hz |
| Power Consumption | < 300 W |
| Noise Level | < 58 dB(A) |
| Operating Temperature | -10°C to +45°C |
| Storage Temperature | -20°C to +60°C |
Communication & Software
- RJ45 Ethernet communication interface.
- TCP/IP network communication.
- ZKBio SIS software support.
- Windows 10 operating system.
- 128 GB SSD for system storage.
- 2 TB HDD for inspection image storage.
- Storage capacity of up to 200,000 scanned images.
Why Choose ZKTeco ZKX5030A?
- Compact X-ray inspection solution for space-constrained security checkpoints.
- 500 × 300 mm tunnel accommodates briefcases, carry-on luggage and small packages.
- High-quality X-ray generator and detector provide clear inspection images.
- 8 mm steel penetration supports effective baggage inspection.
- 36 AWG wire resolution and 30 AWG penetration resolution.
- Reliable conveyor system supports loads up to 120 kg.
- Integrated computer system with Windows 10.
- Large 2 TB HDD supports extensive image storage.
- Supports up to 200,000 scanned images.
- ZKBio SIS software support enables professional security inspection management.
- TCP/IP connectivity simplifies network integration.
- Suitable for stadiums, shopping malls, hotels and commercial facilities.
Package Includes
- 1 × ZKTeco ZKX5030A X-Ray Inspection System
- Integrated Computer System
- Computer Keyboard
- X-Ray Generator and Detector System
- Conveyor System
- ZKBio SIS Software Support
- Standard Installation Components
- Product Documentation
