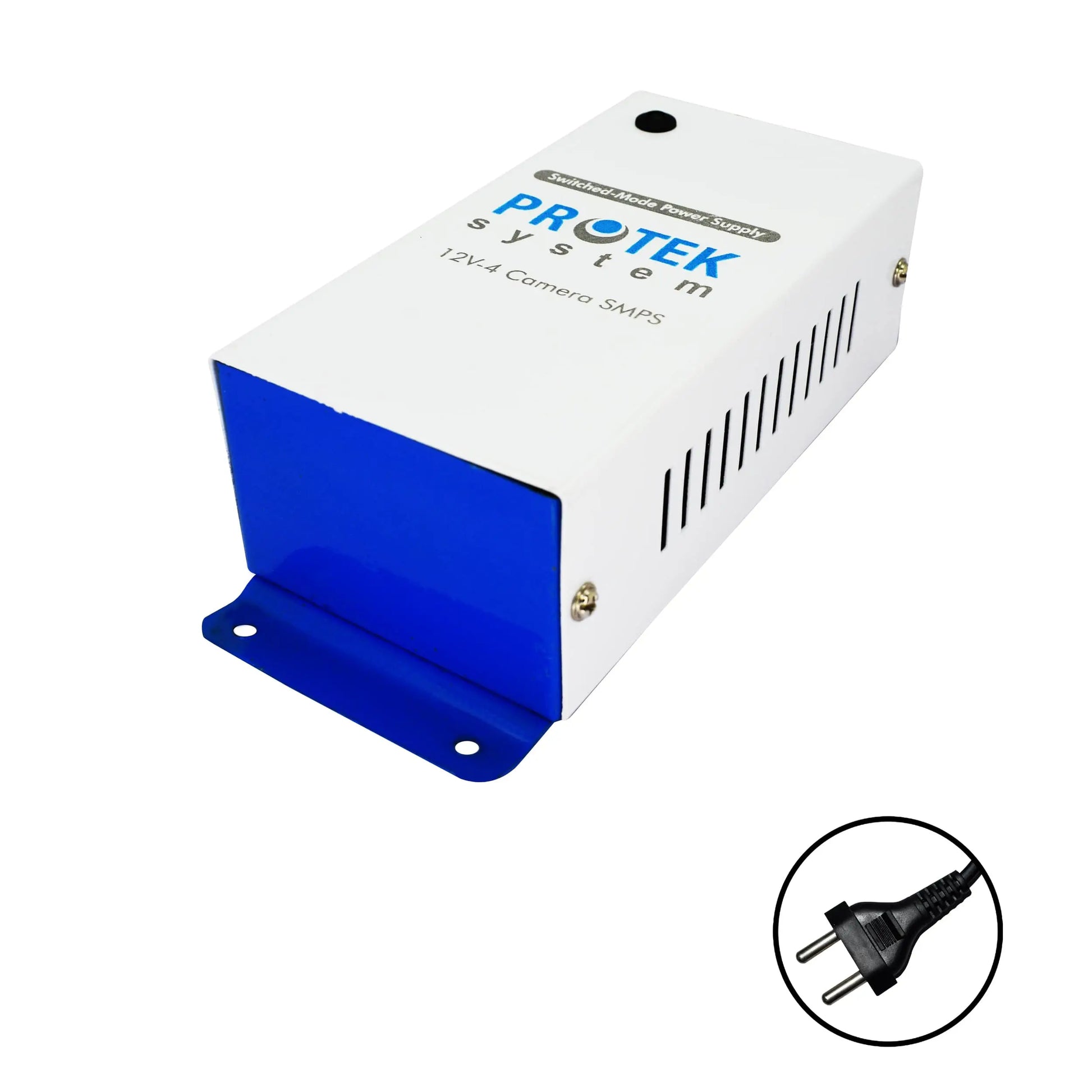

12V, 4 Camera Supply (PS4CPS)

The PS4CPS 12V, 4 Camera Supply is a fully regulated switch mode power supply designed specifically for CCTV surveillance systems. It provides a stable 12V DC output at 2A and is suitable for powering up to 4 IR cameras with up to 24 LEDs each. The high-frequency switching design ensures high efficiency, low power loss, compact size, and reliable performance.

The power supply operates over a wide input voltage range of 90V to 280V AC and incorporates multiple protection features including overload, short-circuit, over-voltage, under-voltage, and thermal protection, ensuring safe and dependable operation.

Key Features

Fully regulated switch mode power supply.
12V DC output with 2A maximum current.
Wide input voltage range of 90V to 280V AC.
Suitable for powering up to 4 IR CCTV cameras.
Overload cut-off and automatic recovery.
Short-circuit and over-voltage protection.
Input over-voltage and under-voltage protection.
Thermal shutdown protection with recovery.
Compact, lightweight, and high-efficiency design.

Product Advantages

Reliable and stable power output.
High efficiency with low power loss.
Multiple safety protection mechanisms.
Compact and lightweight design.
Ideal for CCTV surveillance systems.
Long operational life and dependable performance.

Technical Specifications

Specification	Details
Product Name	12V, 4 Camera Supply
Model No.	PS4CPS
Category	12V SMPS / CCTV SMPS Single Output
Input Voltage	90V – 280V AC
Input Frequency	45 – 55Hz
Output Voltage	12V DC
Output Current	2 Amps (Max)
Efficiency	>85% @ Full Load and 230V AC
Line Regulation	<1%
Load Regulation	<1%
Ripple	<50mV p-p
Isolation Between Input & Output	3000V AC
Isolation Between Input & Earth	1500V AC
Isolation Between Output & Earth	1500V AC
Operating Temperature	0°C to 55°C
Dimensions	170 × 80 × 45 mm
Weight	420 g
Application	For 4 IR Cameras up to 24 LEDs
