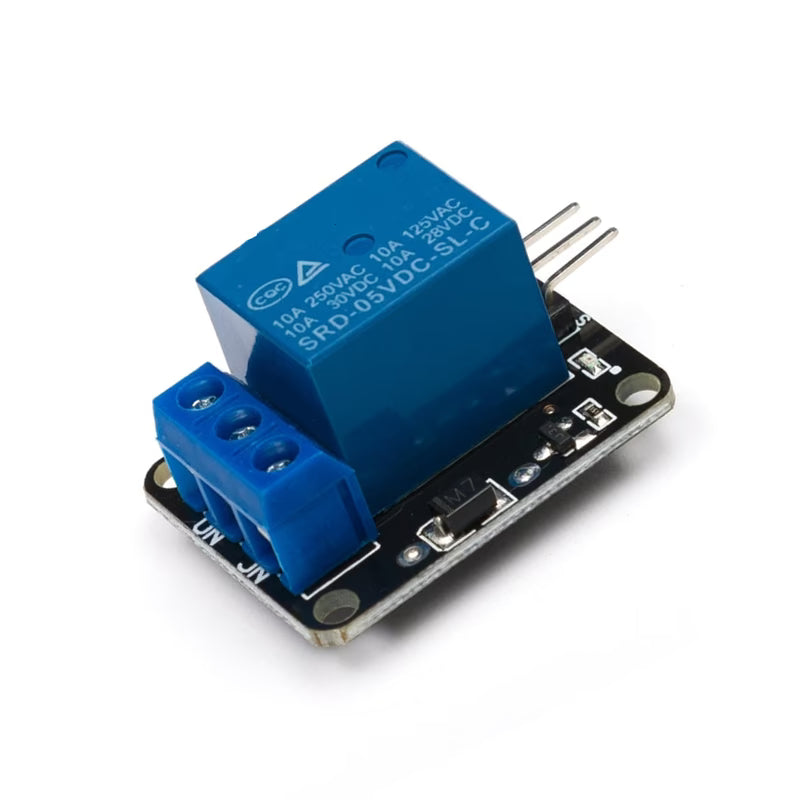

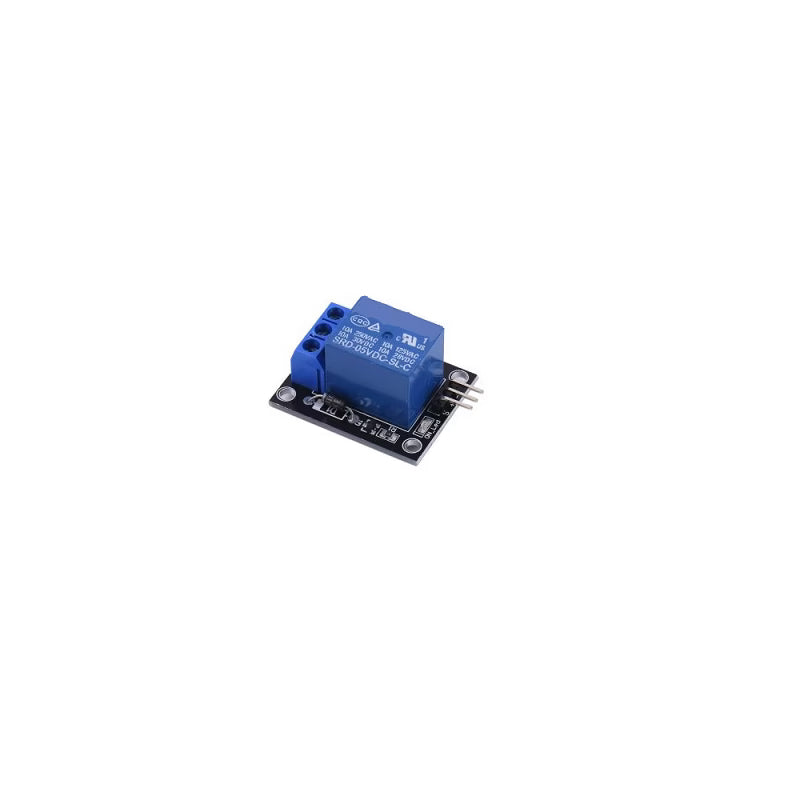

5V 1 Channel Relay Module

The 5V 1 Channel Relay Module is a compact and reliable relay board designed for controlling high-voltage AC and DC devices using low-voltage microcontrollers. Featuring a Single-Pole Double-Throw (SPDT) relay, the module can switch loads up to 250VAC at 10A or 30VDC at 10A, making it ideal for automation and control applications.

The relay module can be controlled directly by popular development boards such as Arduino, Raspberry Pi, ESP32, ESP8266, and other microcontrollers. It includes an onboard power indicator LED and isolated inputs to protect sensitive control circuits from electrical interference.

Key Features

Single-channel 5V relay module.
SPDT (Single Pole Double Throw) relay configuration.
Can switch AC loads up to 250VAC at 10A.
Can switch DC loads up to 30VDC at 10A.
Directly compatible with microcontrollers.
High-level trigger operation.
Input isolation for enhanced protection.
Power status indicator LED.
Compact and lightweight design.
Easy to integrate into automation projects.

Product Advantages

Allows low-voltage devices to control high-voltage appliances.
Reliable switching performance.
Protects control circuits through isolated inputs.
Compact design suitable for embedded applications.
Simple wiring and installation.
Ideal for DIY and industrial automation projects.

Technical Specifications

Specification	Details
Product Name	5V 1 Channel Relay Module
Model	Relay Module
Number of Channels	1
Relay Type	SPDT (Single Pole Double Throw)
Trigger Voltage	5V DC
Trigger Current	20mA
Maximum AC Switching Capacity	250VAC @ 10A
Maximum DC Switching Capacity	30VDC @ 10A
Control Method	High-Level Trigger
Indicator	Power Indicator LED
Length	38 mm
Width	26 mm
Weight	13 g
Shipping Weight	0.017 kg
Shipping Dimensions	7 × 5 × 2 cm
