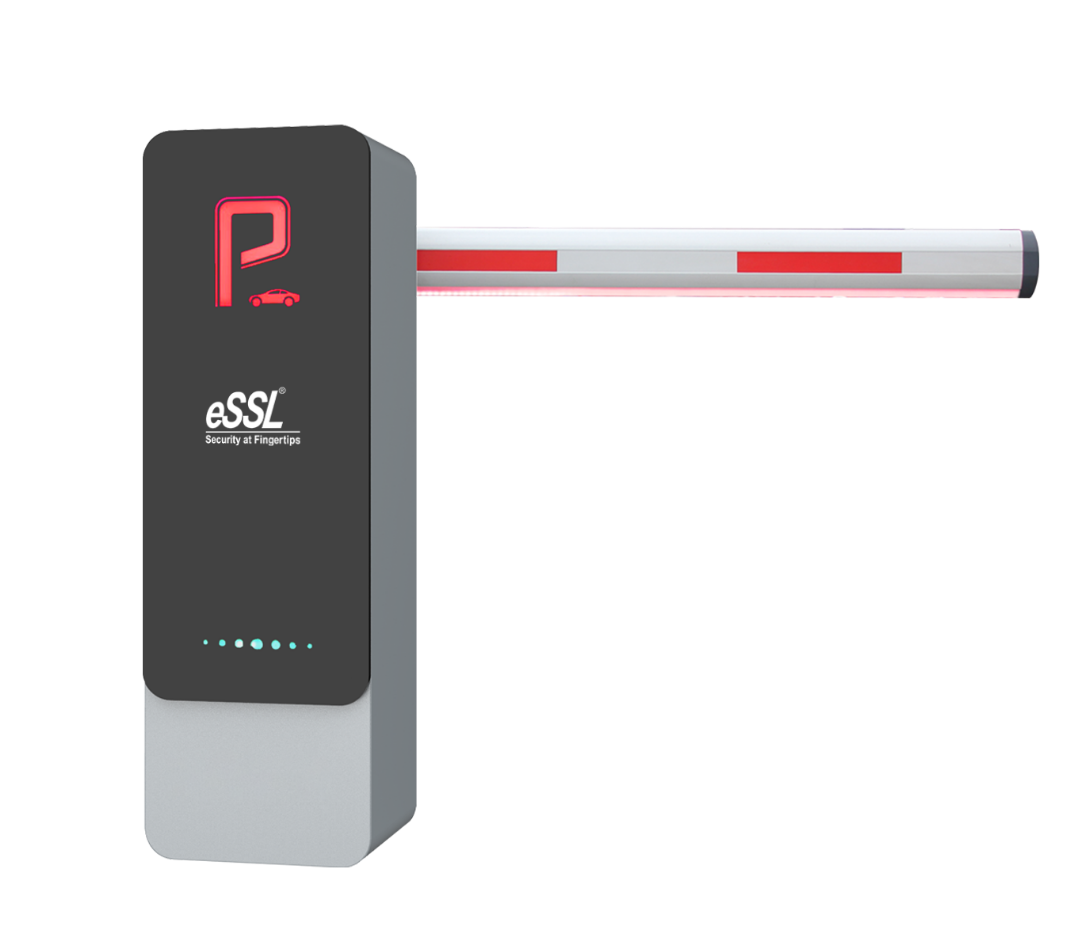

eSSL Auto-barrier with DC brushless motor BG180-BDC

eSSL Auto-barrier with DC brushless motor BG180-BDC

eSSL Technical data Feature and specification

The eSSL Auto-barrier BG180-BDC operates on a 24VDC ±5% working voltage and supports environmental humidity from 10% to 90% non-condensing, with an IP54 rating. It features a 120W 24VDC power supply compatible with 220V ±10% 50/60Hz or 110V ±10% 50/60Hz input. Designed for temperatures between -35°C and 70°C, it offers boom lengths up to 6m, operating at speeds from 1.5 to 6 seconds. The system uses a 24VDC brushless motor and mechanism ensuring electrical safety without leakage risk, along with a hull limit switch for quiet, stable operation and extended durability. It supports adjustable speeds with soft start/stop functions for efficient throughput, including reverse, auto-close, and intelligent auto-check features. Integration options include parking management systems, loop detectors, radar sensors, photocells, and optional RS485 communication. The cabinet is treated with electrophoresis and powder coating for robust outdoor performance. Manual operation is possible during power outages, with an optional automatic mode via backup battery connection.

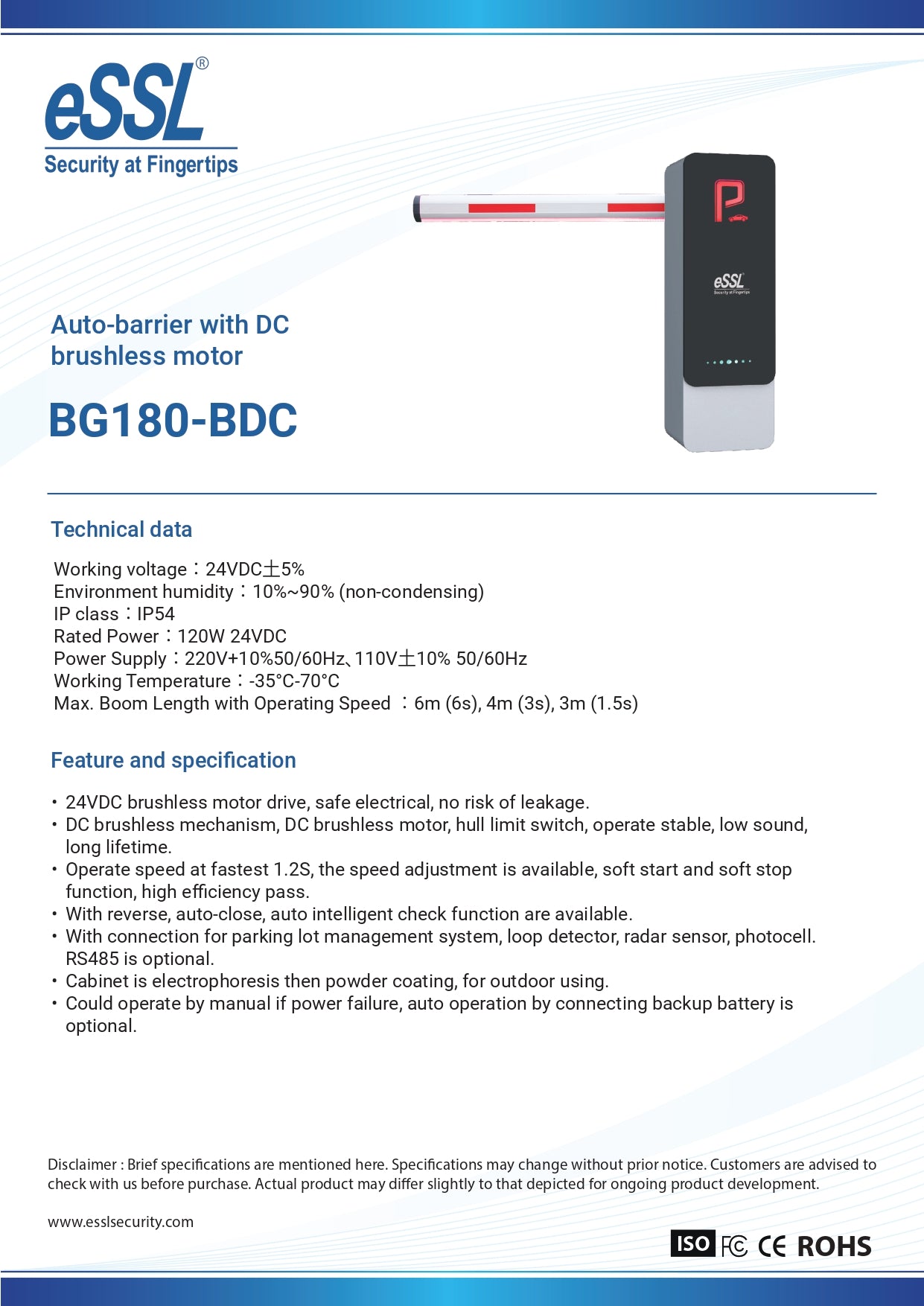

Technical data Feature and specification
Working voltage ： 24VDC土5%
Environment humidity ： 10%~90% (non-condensing)
IP class ： IP54
Rated Power ： 120W 24VDC
Power Supply ： 220V+10%50/60Hz、110V土10% 50/60Hz
Working Temperature ： -35°C-70°C
Max. Boom Length with Operating Speed ： 6m (6s), 4m (3s), 3m (1.5s)

Key Highlights

• ⚡ High Speed Operation – Fast response for smooth vehicle flow.

• 🔋 DC Brushless Motor – Energy efficient, quiet & long-lasting.

• 🛡️ Durable Build – Withstands continuous heavy-duty use.

• 🔑 Access Control Ready – Integrates with RFID, ANPR, face recognition, etc.

• 🌦️ All-Weather Resistant – Reliable performance in outdoor conditions.

• 🏢 Ideal For – Parking lots, gated communities, toll plazas, industrial premises.

• 24VDC brushless motor drive, safe electrical, no risk of leakage.

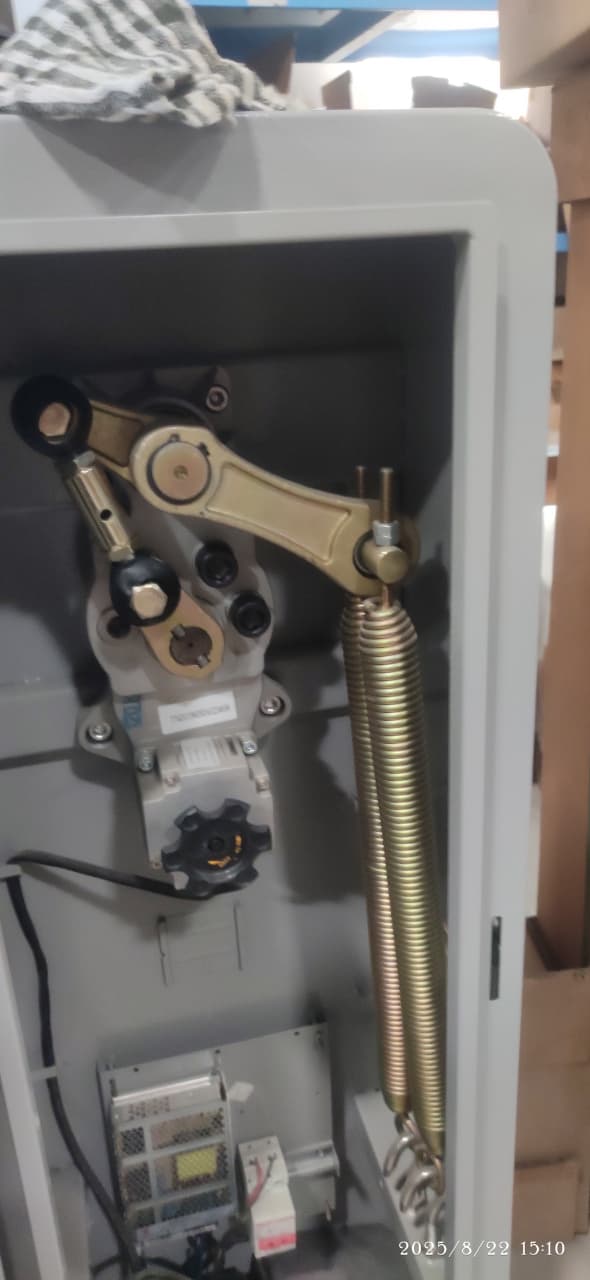

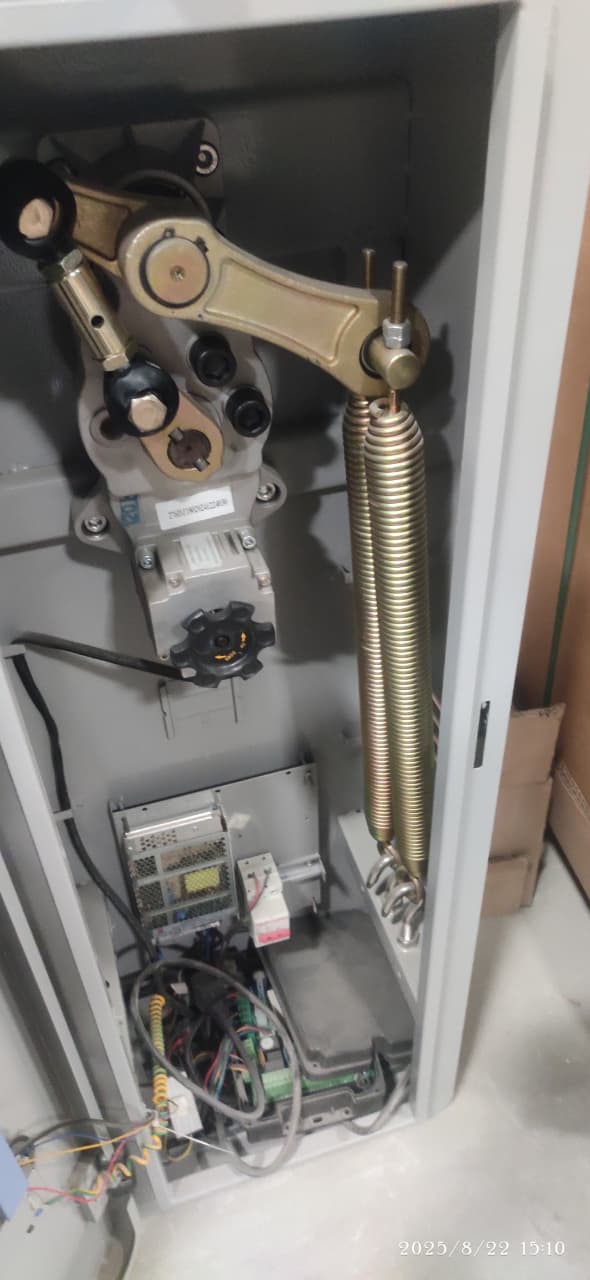

• DC brushless mechanism, DC brushless motor, hull limit switch, operate stable, low sound,
long lifetime.
• Operate speed at fastest 1.2S, the speed adjustment is available, soft start and soft stop
function, high efficiency pass.
• With reverse, auto-close, auto intelligent check function are available.
• With connection for parking lot management system, loop detector, radar sensor, photocell.
RS485 is optional.

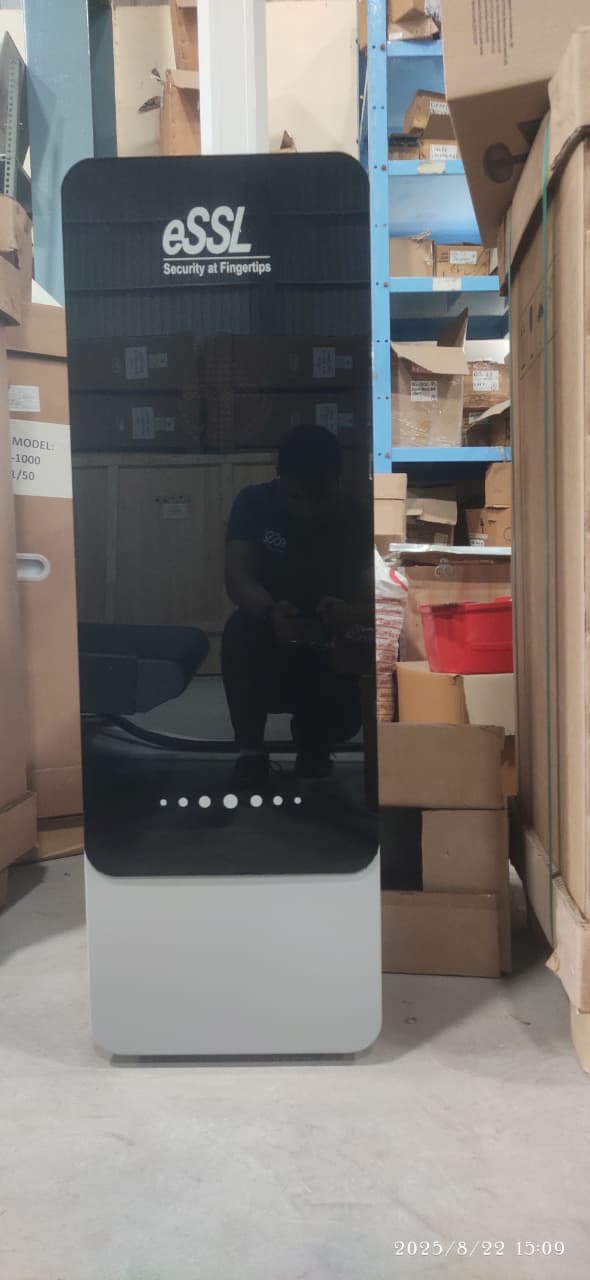

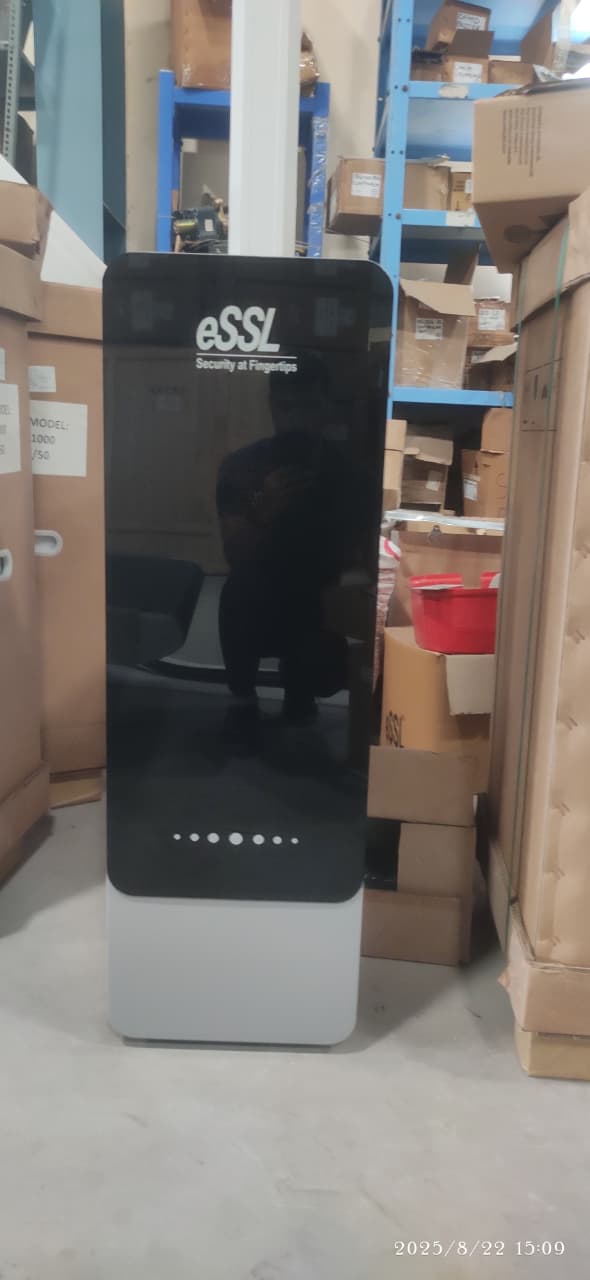

• Cabinet is electrophoresis then powder coating, for outdoor using.
• Could operate by manual if power failure, auto operation by connecting backup battery is optional.
