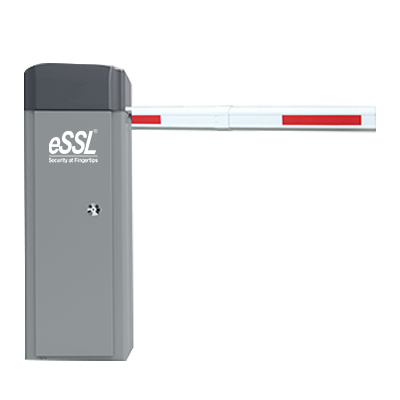

eSSL BG-100 GREY Automatic Boom Barrier Gate – 6M Arm for Vehicle Access
eSSL BG-100 GREY Automatic Boom Barrier Gate – 6M Arm for Vehicle Access
Regular price
Rs. 37,746.00
Regular price
Rs. 45,296.00
Sale price
Rs. 37,746.00
Quantity
Couldn't load pickup availability
BG-100 Grey Automatic Boom Barrier
The BG-100 Grey Boom Barrier is a heavy-duty automatic vehicle access control solution designed for parking lots, residential communities, commercial buildings, industrial facilities, and toll plazas. Featuring a robust die-cast aluminum motor, intensive-duty operation, and support for RFID, biometric, and access control integration, it provides reliable and secure vehicle entry management with smooth barrier operation.
Key Features
- Supports boom arm lengths up to 6 meters
- Fast opening and closing time of 6 seconds
- Heavy-duty die-cast aluminum motor with excellent heat dissipation
- Automatic and Manual operating modes
- Supports RFID readers, biometric devices, and Wiegand access control
- Auto-close function with adjustable delay (1–99 seconds)
- Remote control operation up to 25 meters
- Manual release during power failure
- Optional anti-bumping infrared photocell support
- Suitable for intensive-duty applications with 3 million MCBF
Technical Specifications
| Specification | Details |
|---|---|
| Model | BG-100 Grey |
| Product Type | Automatic Boom Barrier |
| Maximum Boom Length | 6 m |
| Boom Rest Stand | Yes |
| Boom Arm Material | Aluminum |
| Opening / Closing Time | 6 Seconds |
| Operating Mode | Automatic / Manual |
| Input Control Signal | Dry Contact |
| Ingress Protection | IP54 |
| Input Interfaces | Photocell, Air Switch |
| Output Interface | Traffic Lamp |
| Optional Interfaces | Access Control Panel, Standalone Access Control, Control Button |
| Remote Control Range | Up to 25 m |
| Auto Close Timer | 1 – 99 Seconds (Adjustable) |
| Control Panel | Built-in STOP / UP / DOWN Push Buttons |
| Anti-Bumping | Optional Infrared Photocell Support |
| Power Supply | AC 110V / 220V, 50/60Hz |
| Motor Power | 90W, 240V AC |
| Dimensions (L × W × H) | 268 × 348 × 1050 mm |
| Operating Temperature | -20°C to +50°C |
| Duty Cycle | Intensive |
| MCBF | 30 Lakhs Cycles |
Product Features
- Remote control operation with OPEN, CLOSE, and STOP functions
- High-performance compression spring mechanism for enhanced safety
- Efficient motor cooling fan for continuous operation
- Optional double safety limit switches
- Adjustable automatic closing function
- Manual release for emergency operation
- Optional traffic light interface
- Supports wire control and wireless remote control
- Compatible with RFID readers, biometric systems, and Wiegand devices
- Supports infrared photocell for anti-collision protection
Applications
- Residential Communities
- Commercial Buildings
- Corporate Offices
- Industrial Facilities
- Parking Management Systems
- Shopping Malls
- Toll Plazas
- Hospitals
- Educational Institutions
- Government Premises
Why Choose BG-100 Grey?
- Reliable heavy-duty vehicle access control solution
- Supports multiple access control integrations
- Fast and smooth boom operation
- Built for intensive daily operation
- Durable aluminum construction with IP54 protection
- Easy installation and maintenance
- Excellent safety features for secure vehicle management
Package Includes
- 1 × BG-100 Grey Boom Barrier Unit
- 6 m Aluminum Boom Arm
- Boom Rest Stand
- Remote Controls
- Mounting Accessories
- User Manual
