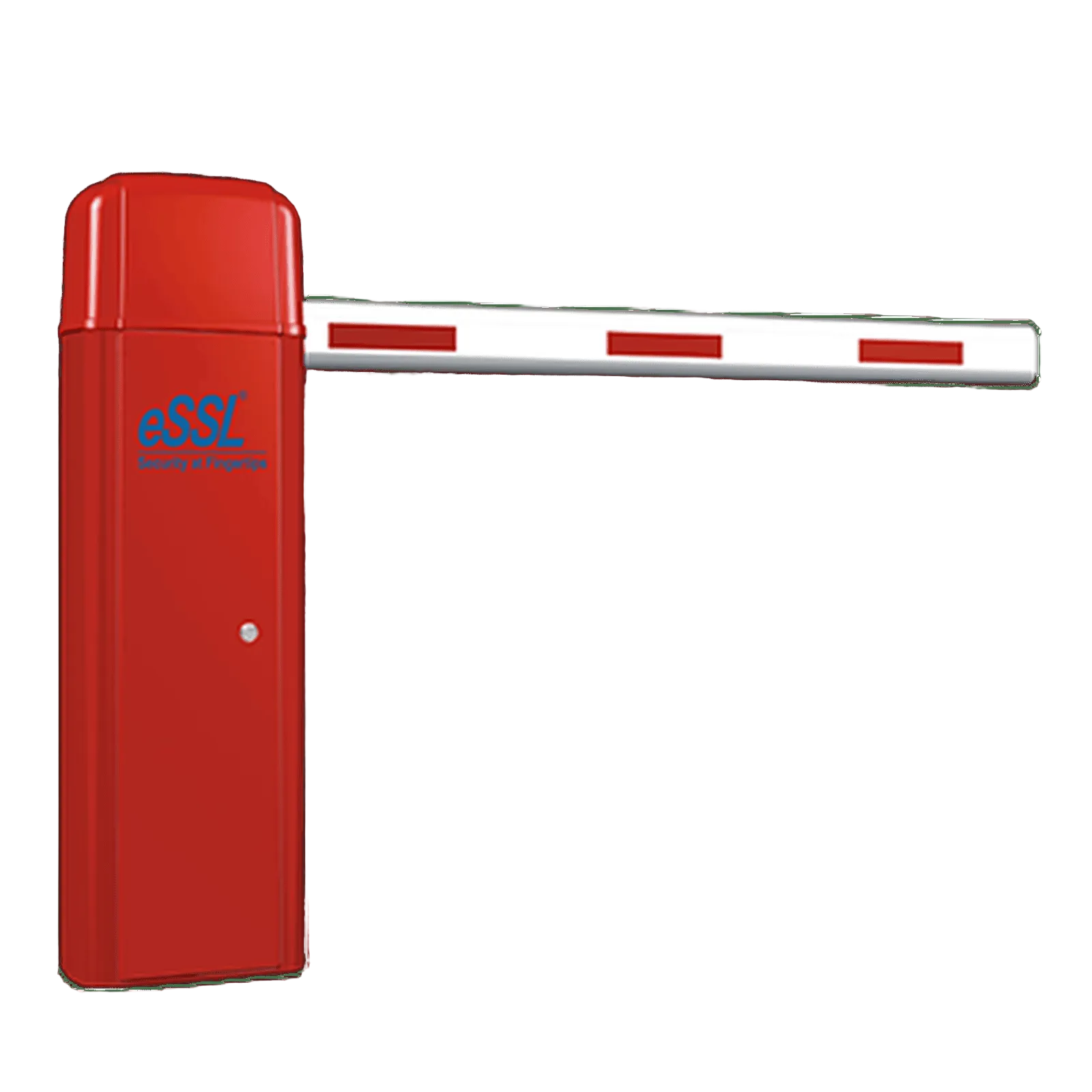

eSSL BG-108 (8M) Automatic Boom Barrier Gate – 8M Aluminium Arm

eSSL BG-108 (8M) Automatic Boom Barrier Gate – 8M Aluminium Arm

Rs. 60,002.56
Rs. 72,003.00 Rs. 60,002.56
Sale Sold out
Product Details

eSSL BG-108 Automatic Boom Barrier – 8M Arm

The eSSL BG-108 Automatic Boom Barrier is a heavy-duty vehicle access control solution engineered for parking facilities, residential societies, commercial buildings, industrial premises, and toll lanes. Supporting an aluminum boom arm of up to 8 meters, it delivers smooth and reliable operation with automatic and manual control modes. Its robust construction, IP54 protection, and multiple interface options make it ideal for continuous outdoor vehicle management applications.

Key Features

  • Supports boom arm lengths up to 8 meters.
  • Smooth opening and closing in approximately 8 seconds.
  • Automatic and manual operating modes.
  • Dry contact control input.
  • Built-in STOP / UP / DOWN control buttons.
  • Adjustable auto-close timer (1–80 seconds).
  • Supports photocell, air switch, and optional loop detector.
  • Boom rest stand for long boom support.
  • Optional anti-collision and obstacle detection.
  • Weather-resistant IP54 enclosure.

Product Advantages

  • Ideal for wide vehicle lanes up to 8 meters.
  • Reliable operation for continuous traffic management.
  • Easy integration with parking and access control systems.
  • Supports indoor and outdoor installations.
  • Simple installation and maintenance.
  • Robust aluminum boom with stable performance.
  • Enhanced safety through optional obstacle detection.

Technical Specifications

Specification Details
Product Name eSSL BG-108 Automatic Boom Barrier
Category Boom Barrier
Boom Arm Length Up to 8 meters
Boom Arm Material Aluminum
Operation Time Approximately 8 Seconds
Motor Type AC Motor
Motor Power 90 W
Control Signal Dry Contact
Control Modes Automatic / Manual
Input Interfaces Photocell, Air Switch, Optional Loop Detector
Built-in Controls STOP / UP / DOWN Push Buttons
Auto Close Timer Adjustable (1–80 Seconds)
Ingress Protection IP54
Operating Temperature -20°C to +50°C
Dimensions (H × W × D) 1050 × 348 × 268 mm
Usage Environment Indoor / Outdoor (Covered Installation)
Duty Cycle Continuous Traffic Operation
Safety Features Auto Stop on Obstacle (with Supported Sensors)
Power Supply AC 220V / 110V
Frequency 50 / 60 Hz
Current Rating 0.5 – 1 A
Backup Option Optional UPS / Battery Backup
Remote Frequency 433 MHz

Main Features

  • Heavy-duty automatic boom barrier.
  • 8-meter aluminum boom arm support.
  • Automatic and manual control modes.
  • Built-in control panel with STOP, UP & DOWN buttons.
  • Adjustable auto-close timer.
  • Photocell and loop detector compatibility.
  • Optional anti-collision protection.
  • Continuous-duty operation.
  • IP54 weather-resistant cabinet.

Applications

  • Parking Management Systems
  • Commercial Buildings
  • Residential Communities
  • Corporate Offices
  • Industrial Facilities
  • Warehouses
  • Shopping Malls
  • Hospitals
  • Educational Institutions
  • Toll Plazas

Why Choose eSSL BG-108?

  • Supports extra-long 8-meter boom arms.
  • Reliable continuous-duty performance.
  • Easy integration with RFID and access control systems.
  • Robust IP54-rated outdoor construction.
  • Adjustable automatic closing function.
  • Multiple safety and control options.
  • Low maintenance with long service life.

Package Includes

  • 1 × eSSL BG-108 Boom Barrier Unit
  • 1 × 8 Meter Aluminum Boom Arm
  • 1 × Boom Rest Stand
  • 2 × Remote Controls
  • 1 × Mounting Accessories Kit
  • 1 × User Manual
Technical Specifications
