BG-BDC-RL-100 | eSSL Security

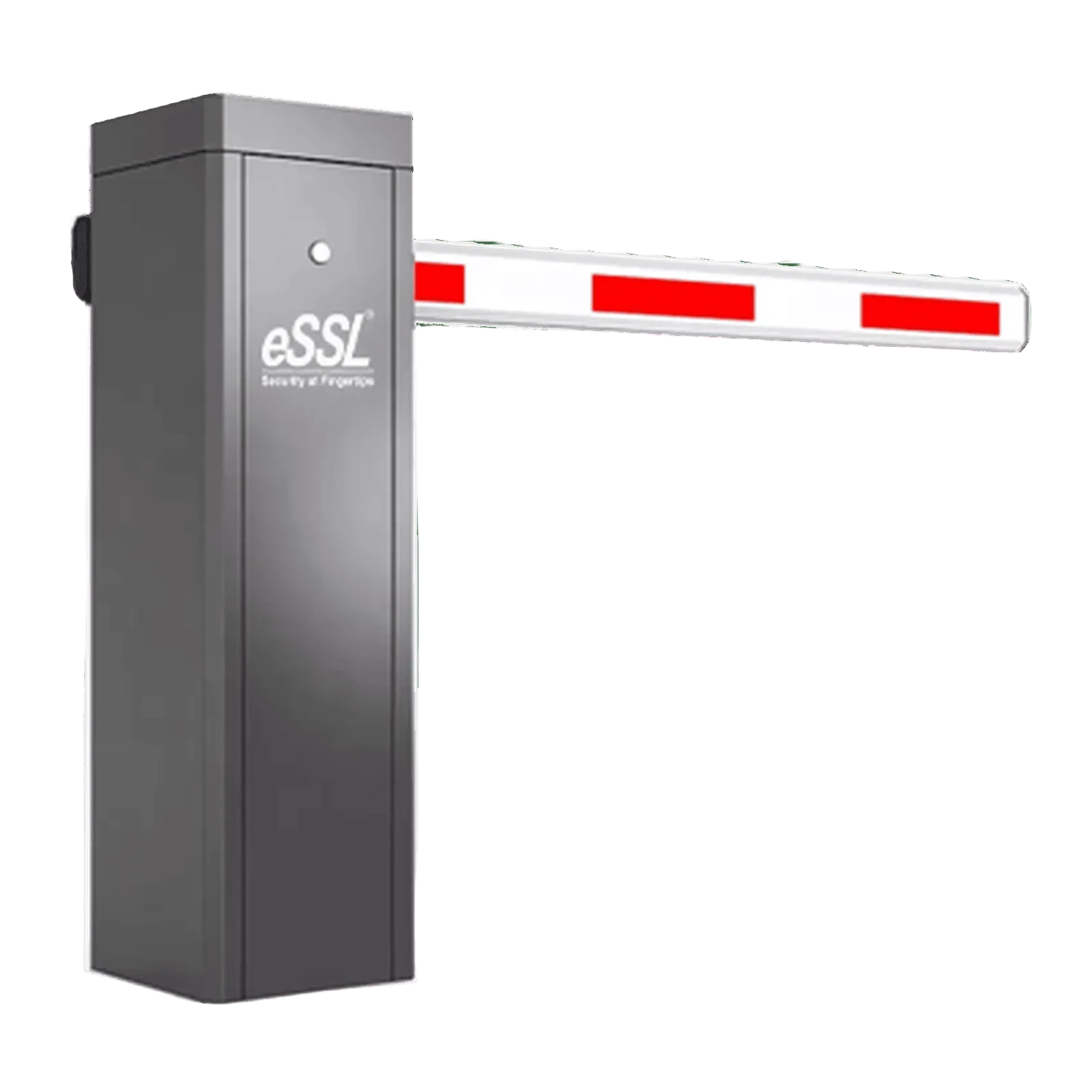

The BG-BDC-RL-100 is a high-performance DC brushless boom barrier designed for intensive vehicle entry and exit control applications such as parking areas, commercial buildings, toll plazas, and industrial facilities. Equipped with a DC motor and intelligent control board, it delivers smooth, fast, and low-maintenance operation with enhanced safety features and high reliability for continuous usage.

Key Highlights

• DC Brushless Motor: Energy-efficient, silent, and long-life operation.
• Fast & Adjustable Speed: Opening and closing time configurable from 1.5 to 6 seconds.
• High Duty Cycle: Designed for intensive and continuous traffic flow.
• Multiple Control Interfaces: Supports remote, push button, loop detector, and access control systems.
• Advanced Safety: Obstacle detection, auto-reverse, and manual release during power failure.

Features

• Intelligent Control Board: Provides precise motion control with built-in protection logic.
• Auto Close Timer: Programmable automatic closing delay for enhanced traffic management.
• Manual Release Mechanism: Allows barrier operation during power failure.
• Left / Right Configuration: Supports flexible installation based on site requirements.
• Weather-Resistant Cabinet: Powder-coated steel housing with IP54 protection.

Barrier Mechanism Features

• Spring Balancing System: Ensures smooth boom movement and reduces motor load.
• Soft Start & Soft Stop: Minimizes mechanical shock and extends component life.
• Obstacle Detection & Auto Reverse: Automatically reverses boom movement upon obstruction.
• Adjustable Boom Speed: Allows speed tuning based on boom length and traffic requirements.
• Emergency Manual Operation: Enables manual boom lifting during power outage.

Technical Specifications
