Attendance Machine
BG-S-105 | eSSL Security
BG-S-105 | eSSL Security
Regular price
Rs. 0.00
Regular price
Sale price
Rs. 0.00
Quantity
Couldn't load pickup availability

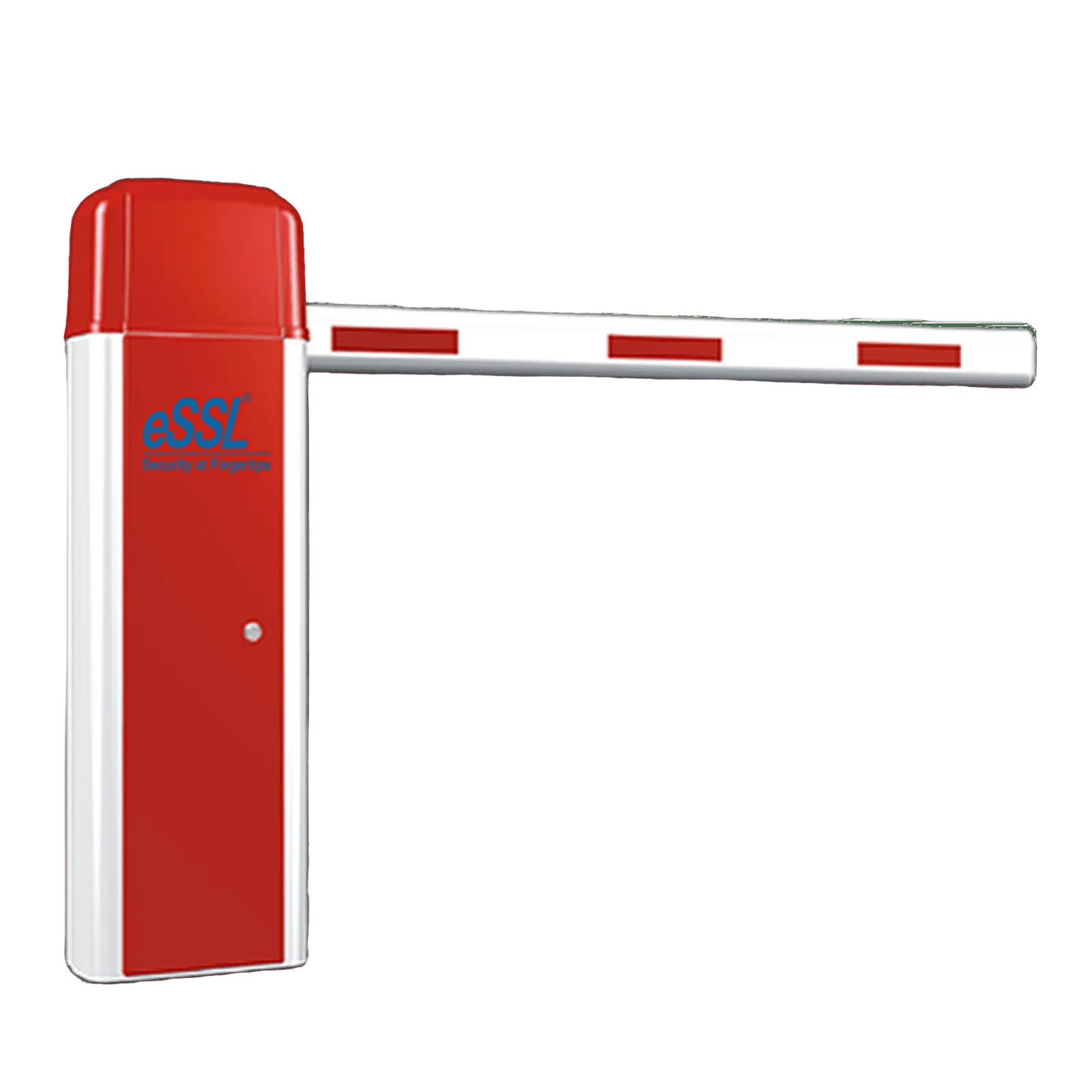

The eSSL BG‑S‑105 is a 2-Meter Slim Boom Barrier designed for smooth vehicle entry and exit control in parking lots and gated facilities. Featuring a DC brushless motor, adjustable boom speed, and remote or push-button operation, it ensures reliable traffic management. With robust construction and IP54 protection, it is suitable for both indoor and outdoor installations.
Key Highlights
- Slim Design: Ideal for limited space installations.
- DC Brushless Motor: Ensures smooth, quiet, and low-maintenance operation.
- Adjustable Boom Speed: Configurable opening and closing times between 1–6 seconds.
- Control Options: Supports push button and remote control operation.
- Weather-Resistant: IP54-rated for outdoor usage.
Features
- Reliable Vehicle Access Control: Accurate operation for parking or gated access.
- Wide Temperature Range: Operates from −40 °C to +60 °C.
- Easy Integration: Compatible with loop detectors, sensors, and access control systems.
- Durable Build: Corrosion-resistant housing for long-term performance.
- Compact Chassis: Saves space without compromising functionality.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | BG‑S‑105 |
| Category | Boom Barrier |
| Motor Type | DC Brushless |
| Working Voltage | 24 V DC ±5 % |
| Rated Power | 150 W |
| Boom Arm Length | 2 m |
| Opening / Closing Time | 1–6 seconds (adjustable) |
| Control Modes | Push Button / Remote Control |
| Duty Cycle | Continuous / Heavy-duty traffic |
| Operating Temperature | −40 °C to +60 °C |
| Operating Humidity | 10 %–90 % non-condensing |
| Protection Class | IP54 |
| Environment | Indoor / Outdoor (covered) |
| Weight | Approx. 55 kg |
| Dimensions (L×W×H) | 410 × 330 × 1050 mm |
| Safety Features | Automatic stop on obstacle detection, emergency manual release |
| Compliance | CE Certified |
| Accessories Supported | Loop Detector, Photo Cells, Remote Controller, Push Switch |
| Mounting | Floor mounted |
| Material (Housing) | Powder-coated steel |
Power Supply Specifications
| Specification | Details |
|---|---|
| Operating Voltage | 24 V DC ±5 % (for DC models) / 220 V AC ±10 % (for AC models) |
| Power Consumption | 120–150 W (depending on boom type and length) |
| Current | 6–8 A peak (DC models) / 0.5–1 A (AC models) |
| Power Type | DC Brushless / AC Motor (as per model) |
| Frequency | 50/60 Hz (for AC models) |
| Battery Backup | Optional UPS / Battery backup support for power failure |
| Efficiency | ≥85 % (for DC motor drive systems) |
| Remote Power | 433 MHz or 868 MHz wireless control |
