Attendance Machine
BG-SC-300
BG-SC-300
Regular price
Rs. 45,453.60
Regular price
Sale price
Rs. 45,453.60
Quantity
Couldn't load pickup availability

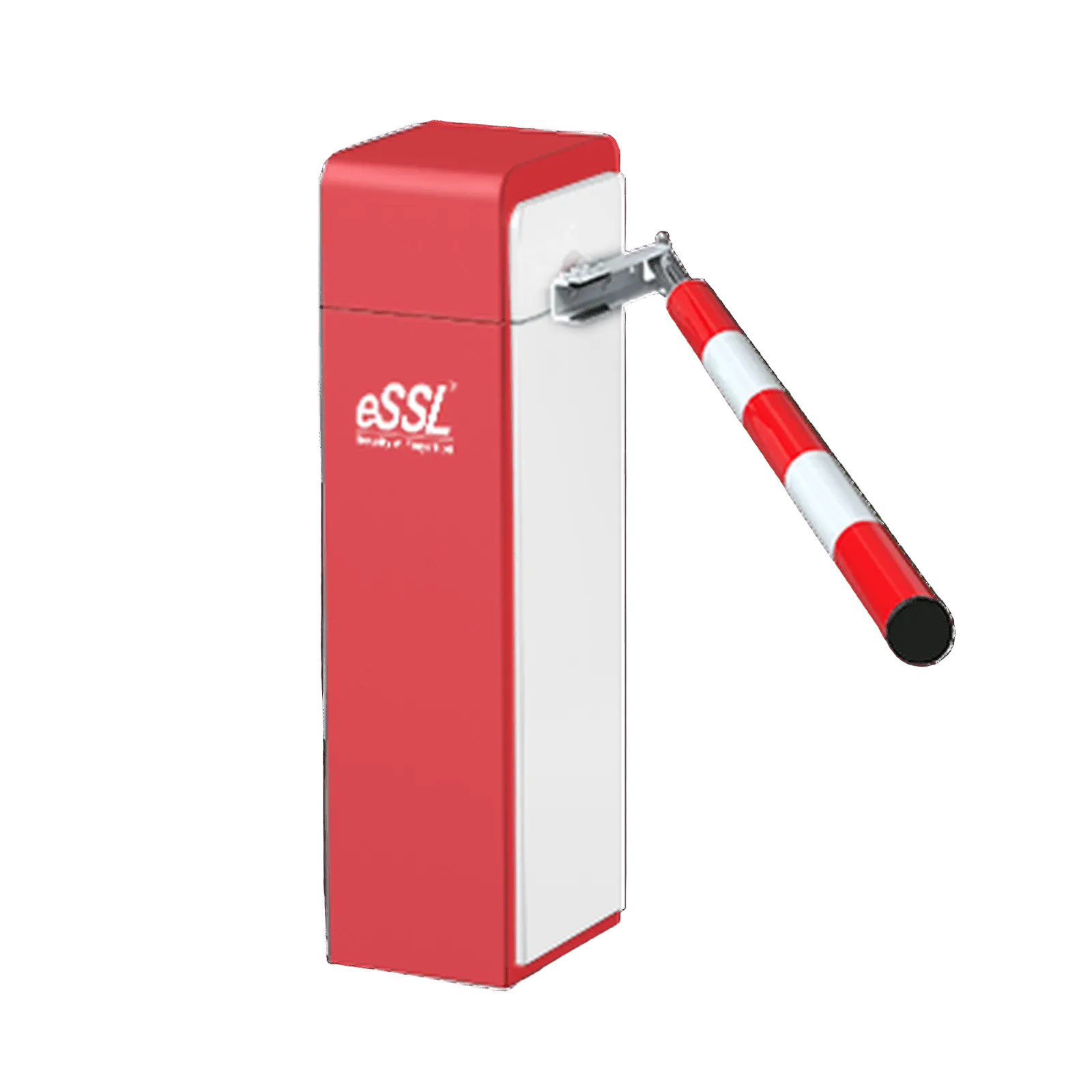

The eSSL BG‑SC‑300 is a Slim & Compact Boom Barrier designed for smooth vehicle entry and exit control. Featuring a DC brushless motor, adjustable boom speed, and remote or push-button operation, it ensures efficient and safe traffic management. Built with durable construction and IP54 protection, it is suitable for both indoor and outdoor installations.
Key Highlights
- Slim Design: Fits in tight spaces while providing reliable barrier control.
- DC Brushless Motor: Low maintenance, smooth, and quiet operation.
- Adjustable Boom Speed: Configurable opening and closing times for traffic flow optimization.
- Multiple Control Options: Supports push button and remote control operation.
- Weather-Resistant: IP54 protection for outdoor usage.
Features
- Reliable Access Control: Detect vehicles and operate access systems accurately.
- Wide Temperature Range: Operates from −40 °C to +60 °C.
- Easy Integration: Compatible with loop detectors, sensors, and parking management systems.
- Compact Chassis: Space-saving design without compromising performance.
- Durable Build: Resistant to wear and suitable for long-term use.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | BG-SC-300 |
| Type | Slim Boom Barrier |
| Motor Type | DC Brushless / AC Motor (depending on model) |
| Motor Power | 150 W |
| Supply Voltage | 24 V DC ±5 % |
| Current Rating | 6–8 A (peak) |
| Boom Arm Length | 2 m standard, up to 5 m optional |
| Boom Material | Aluminum / Steel with reflective strips |
| Opening / Closing Time | 1–6 seconds (adjustable) |
| Control Modes | Remote, Push Button, Access Controller |
| Relay Outputs | Optional dry contact for barrier integration |
| Duty Cycle | Continuous / Heavy-duty traffic (as specified) |
| Operating Temperature | −40 °C to +60 °C |
| Operating Humidity | 10 %–90 % non-condensing |
| Protection Class | IP54 (dust and splash-proof) |
| Environment | Indoor / Outdoor (covered) |
| Remote Frequency | 433 MHz (for remote models) |
| Weight | Approx. 55–60 kg (depending on boom length) |
| Dimensions (L×W×H) | 410 × 330 × 1050 mm (housing) |
| Safety Features | Automatic stop on obstacle detection, emergency manual release |
| Compliance | CE Certified / ISO standards |
| Accessories Supported | Loop Detector, Photo Cells, Remote Controller, Push Switch |
| Mounting | Floor mounted with anchor bolts |
| Material (Housing) | Powder-coated steel / corrosion-resistant paint |
| Optional Features | LED boom indicator, Boom arm flashing lights, Boom arm springs for manual override |
