Attendance Machine
BG100 TII
BG100 TII
Regular price
Rs. 54,291.80
Regular price
Sale price
Rs. 54,291.80
Quantity
Couldn't load pickup availability

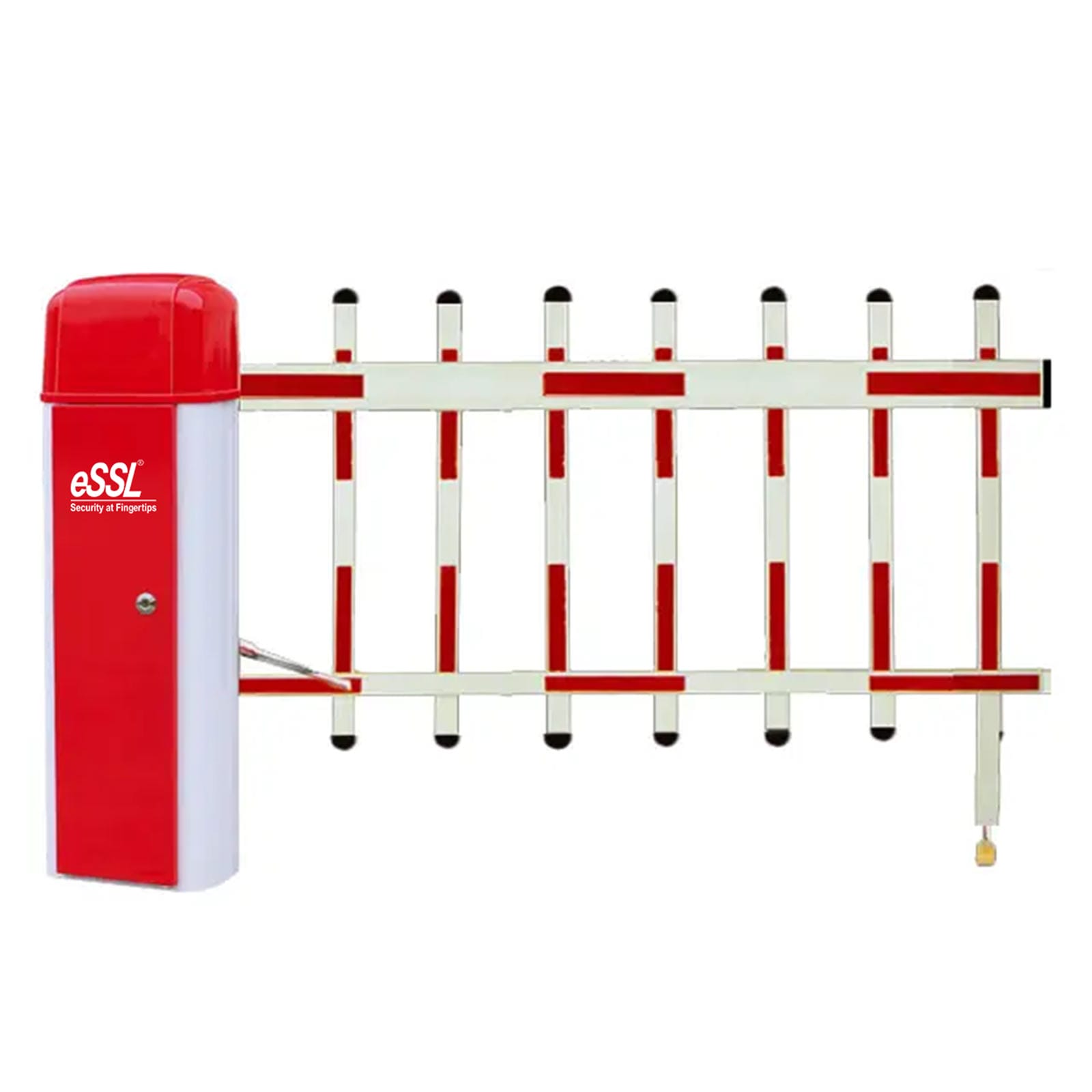

The BG100-TII is a heavy-duty automatic boom barrier designed for reliable vehicle access control in parking areas, industrial premises, commercial complexes, and gated communities. Built for continuous operation, it offers smooth performance, robust construction, and easy integration with access control and safety devices.
Key Highlights
- Heavy-Duty Design: Suitable for high-traffic and continuous operation.
- Stable Performance: Smooth and reliable opening and closing movement.
- Wide Boom Support: Compatible with long boom arms for wide lanes.
- Multiple Control Options: Supports push button, remote control, and access systems.
- Enhanced Safety: Supports photocell and loop detector integration.
Features
- Built-in Control Panel: Integrated control board for easy configuration.
- Manual Release: Allows manual boom operation during power failure.
- Auto Close Function: Adjustable auto-closing timer for efficient traffic flow.
- Left / Right Installation: Flexible mounting configuration.
- Weather-Resistant Housing: Powder-coated steel cabinet with IP54 protection.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | BG100-TII |
| Category | Boom Barrier |
| Motor Type | AC Motor |
| Boom Arm Length | Up to 6 meters |
| Boom Arm Material | Aluminum |
| Opening / Closing Time | 6 – 8 seconds |
| Control Signal | Dry Contact |
| Control Modes | Automatic / Manual |
| Input Interfaces | Photocell, Loop Detector, Push Button |
| Ingress Protection | IP54 |
| Operating Temperature | -20 °C to +50 °C |
| Housing Material | Powder-Coated Steel |
| Duty Cycle | Continuous |
| Safety Features | Auto Stop on Obstacle, Manual Release |
Power Supply Specifications
| Specification | Details |
|---|---|
| Input Power Supply | AC 220 V ±10% |
| Frequency | 50 / 60 Hz |
| Motor Voltage | 220 V AC |
| Motor Power | 90 – 120 W |
| Current Rating | 0.5 – 1 A |
| Backup Power | Optional UPS / Battery Backup |
| Remote Frequency | 433 MHz |
