eSSL BGL-100 Automatic Boom Barrier Gate – 5M Arm for Vehicle Access
eSSL BGL-100 Automatic Boom Barrier Gate – 5M Arm for Vehicle Access
Couldn't load pickup availability

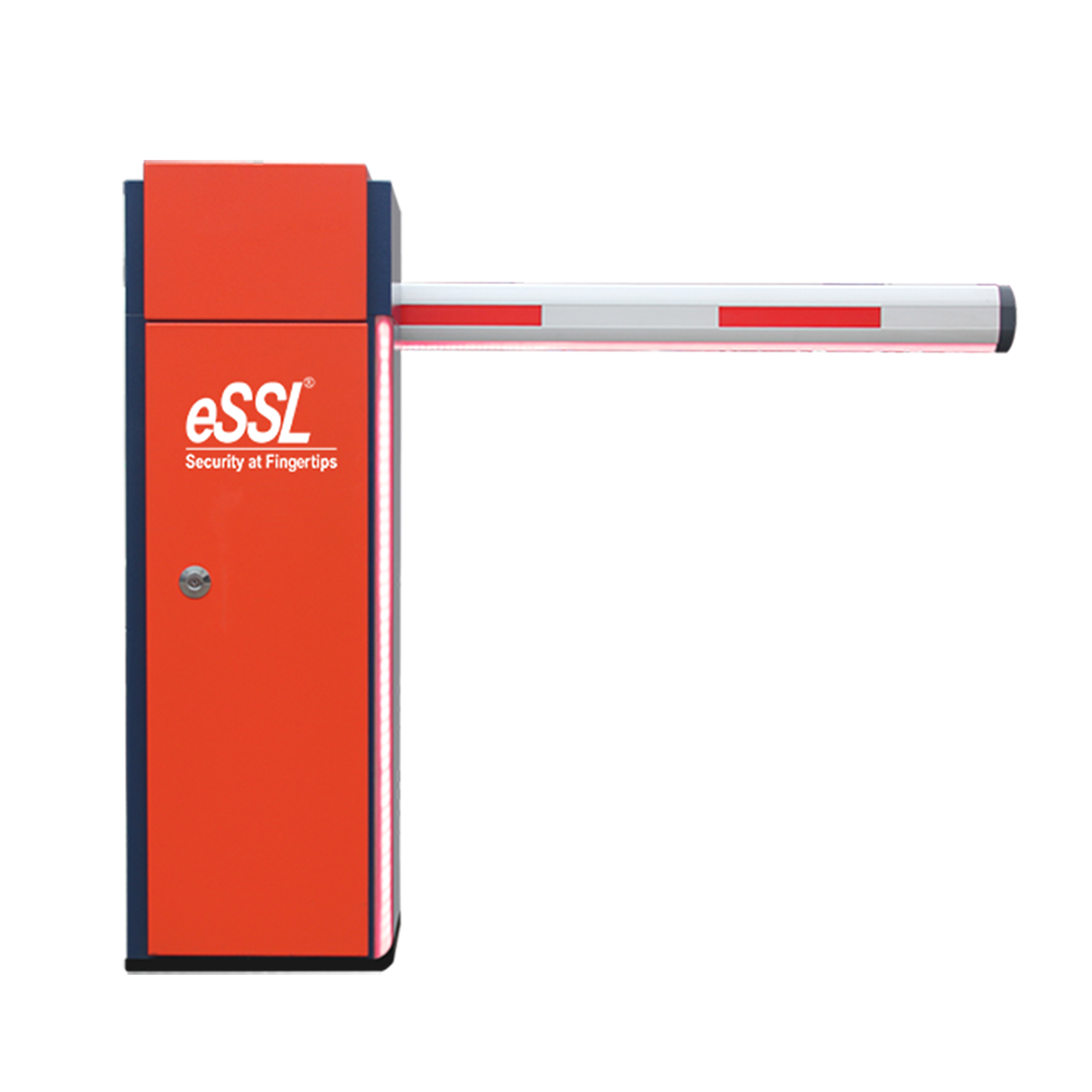

BGL-100 LED Boom Barrier
The BGL-100 Boom Barrier is a heavy-duty automatic vehicle access control solution designed for parking lots, residential complexes, industrial facilities, commercial buildings, toll plazas, and gated communities. Equipped with a 5-meter aluminum boom arm featuring integrated Red & Green LED indicators, it provides clear visual guidance while ensuring fast, reliable, and secure vehicle access control. With support for RFID readers, biometric systems, loop detectors, and photocells, the BGL-100 is ideal for high-traffic environments requiring continuous operation.
Key Features
- Maximum boom arm length of 5 meters
- Integrated Red & Green LED indication on aluminum boom arm
- Fast 6-second opening and closing time
- Supports automatic and manual operation modes
- Remote control operation up to 25 meters
- Compatible with RFID readers, biometric devices, and access control systems
- Supports photocell and loop detector integration
- IP54 weather-resistant protection for outdoor installations
Technical Specifications
| Specification | Details |
|---|---|
| Model | BGL-100 |
| Product Type | Automatic LED Boom Barrier |
| Maximum Boom Length | 5 meters |
| Boom Material | Aluminum with Red & Green LED Indication |
| Boom Rest Stand | Yes |
| Opening / Closing Time | 6 Seconds |
| Control Signal | Dry Contact |
| Ingress Protection | IP54 |
| Input Interfaces | Photocell, Air Switch, Loop Detector |
| LED Indicator | Red / Green |
| Optional Interfaces | Access Control Panel, Standalone Access Control, Control Button |
| Remote Control Range | Up to 25 meters |
| Operating Mode | Automatic / Manual |
| Built-in Control Panel | STOP / UP / DOWN Push Buttons |
| Auto Bounce Back | Optional |
| Power Supply | AC 220V / 110V, 50Hz / 60Hz (SMPS Input) |
| Motor Power | 90W, 240V AC |
| Dimensions (L × W × H) | 268 × 348 × 1050 mm |
| Operating Temperature | -20°C to +50°C |
Product Features
- Integrated LED boom arm with Red & Green traffic indication
- Supports three-position switch and wireless remote operation
- Automatic and manual operating modes
- Compatible with RFID, biometric, and access control systems
- Supports photocell and loop detector for enhanced vehicle safety
- Built-in motor control panel with STOP, UP, and DOWN controls
- Weather-resistant IP54 enclosure for outdoor use
- Reliable performance for continuous heavy-duty operation
Applications
- Commercial Parking Facilities
- Residential Townships & Gated Communities
- Corporate Offices
- Industrial Plants
- Hotels & Resorts
- Hospitals
- Educational Institutions
- Toll Booths & Vehicle Entry Gates
Why Choose BGL-100?
- Integrated LED boom provides clear traffic guidance
- Fast 6-second barrier operation
- Supports multiple access control integrations
- Durable aluminum boom for long service life
- IP54-rated protection for reliable outdoor performance
- Ideal for high-traffic vehicle access management
Package Includes
- 1 × BGL-100 Boom Barrier Unit
- 1 × 5 Meter LED Aluminum Boom Arm
- 1 × Boom Rest Stand
- Remote Control
- Installation Accessories
- User Manual
