Attendance Machine

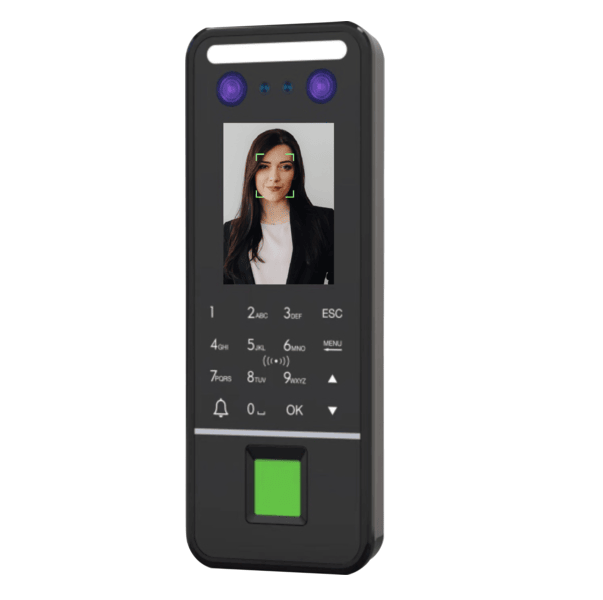

Biomax Faceguard 22 | Visible Light Indoor Facial Recognition
Biomax Faceguard 22 | Visible Light Indoor Facial Recognition
Couldn't load pickup availability
Storage capacity
|
Specification |
Capacity |
|---|---|
|
Face capacity |
1,500 |
|
Palm capacity |
500 |
|
Finger capacity |
5,000 |
|
Log capacity |
2,00,000 |
|
Mifare card capacity |
1,500 |
|
Max. user |
1,500 / 30 (as positioned in extracted text; association is unclear) |
Features
- Speedy recognition to avoid long queue.
- Dual camera for live body sensing and observation.
- Feather touch keypad for intuitive operation.
- Visible Light Indoor Facial Recognition.
- Slim access control to secure your premises.
- Multiple authentication modes like Face, Palm and Fingerprint (optional).
Storage Capacity
| Specification | Capacity |
|---|---|
| Face Templates | 1,500 |
| Palm Templates | 500 |
| Fingerprint Templates | 5,000 |
| Transaction Logs | 2,00,000 |
| Mifare Cards | 1,500 |
| Maximum Users | 1,500 / 30 (as listed in the brochure; exact association requires confirmation) |
Key Features
- Fast User Identification: Designed to recognize users quickly and reduce waiting times during attendance or access verification.
- Dual-Camera Technology: Equipped with two cameras for live body sensing and observation.
- Touch-Responsive Keypad: Features a feather-touch keypad for convenient operation.
- Visible-Light Face Recognition: Supports facial identification in indoor environments.
- Compact Access Control Design: A slim profile makes the device suitable for workplace entry points.
- Multiple Verification Methods: Supports face, palm, and fingerprint authentication, with some modes available as optional features.
Connectivity
The device supports the following communication interfaces:
- Wi-Fi
- TCP/IP
- USB
Audio and User Interface
- Feather-touch keypad for user interaction.
- 16-bit Hi-Fi voice output with audio status indications.
- Voice-guided instructions.
- English language support.
Biometric and Verification Specifications
| Specification | Details |
|---|---|
| Biometric Function | Supported |
| Sensor Resolution | 500 DPI |
| Verification Speed | ≤ 1 second |
| False Acceptance Rate (FAR) | 0.01% |
| False Rejection Rate (FRR) | 0.001% |
| Operating System | Linux |
| Push Data | 3000 (as listed; exact specification requires confirmation) |
| Supported RFID Card | 13.56 MHz Mifare |
| Autofocus | Listed in the brochure |
| Long-Distance Verification | Listed in the brochure |
| Operating Temperature | 0°C to 45°C |
Access Control Capabilities
The Faceguard 22 includes access management features for controlling and monitoring entry points.
- Relay output for access control integration.
- Wiegand input and output support.
- Anti-passback functionality.
- Auxiliary input for access control applications.
- Multi-identification mode.
- Compatible exit and access accessories listed in the brochure include the N-FR12 exit reader, Wiegand reader, push button, no-touch control, and bell.
Power and Physical Dimensions
| Specification | Details |
|---|---|
| Power Supply | DC 12V / 2A |
| Device Dimensions | 185 × 72 × 25 mm |
| Operating Temperature | 0°C to 45°C |
Compatible Software and Management Functions
The brochure lists compatibility with the following platforms and functions:
- Desktop Software
- Web-Based Management
- Cloud-Based Management
- Time and Attendance Management
- Access Control Management
- Employee Self-Service (ESS)
- Mobile Application
Product Information
The Faceguard 22 combines visible-light facial recognition with additional biometric authentication options and access control interfaces. Its listed connectivity options and software support make it suitable for attendance recording and entry management applications.
Note: Product specifications may change without prior notice. Confirm the latest technical details and optional features with the supplier before purchasing.
