Biomax Faceguard 500 – Biometric Attendance and Access Control
Biomax Faceguard 500 – Biometric Attendance and Access Control
Couldn't load pickup availability

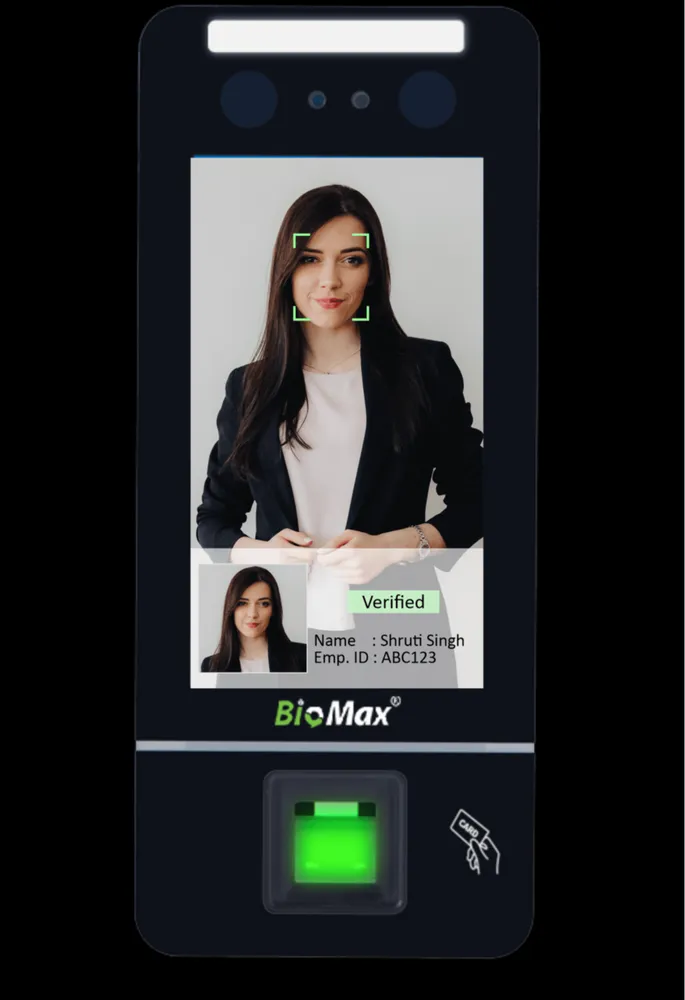

The Faceguard 500 is a biometric terminal designed for employee attendance recording and entry management. It features a capacitive touchscreen, binocular camera technology, and network connectivity for integration with supported attendance and access control software.
Storage Capacity
- Face Capacity: 1,500
- Finger Capacity: 5,000
- Palm Capacity: 500
- Card Capacity: 2,000
- Log Capacity: 2,00,000
- Max User: 2,000
Features
- Large display with easy handling features
- Dual camera for live body sensing & observation
- Camera support low light and normal light
- Auto ON/OFF Energy saving light
- Visible Light Indoor Facial Recognition
- Visible Light Facial & Fingerprint Recognition
- Access control to secure your premises
- Speedy recognition to avoid long queue
- Multiple authentication modes like Face, Palm, Fingerprint & Card
Connectivity and Communication
The device offers multiple connection options for communication and system integration:
- Wi-Fi: Wireless network connectivity.
- TCP/IP: Network-based communication.
- USB: Wired interface for supported data operations.
Display, Camera and Audio
- Display Type: 4.3-inch IPS capacitive touchscreen.
- Camera System: 2 MP binocular camera.
- Display Technology: LCD.
- Screen Resolution: 480 × 272 pixels.
- Audio Output: 16-bit Hi-Fi voice.
- Voice Guidance: Supported.
Biometric Recognition Specifications
| Parameter | Specification |
|---|---|
| Fingerprint Sensor | 3000 5 DPI Optical Sensor (wording unclear in the source) |
| Recognition Distance | 0.5–1 metre |
| False Acceptance Rate (FAR) | 0.00001% |
| False Rejection Rate (FRR) | 0.001% |
| Operating System | Linux |
Access Control Functions
The Faceguard 500 includes interfaces and accessories for access management applications:
- Relay connection for compatible access control equipment.
- Exit reader support.
- Push-button exit functionality.
- Touch-free exit option.
Recognition and Verification Features
- Autofocus: Listed as a supported feature.
- Low-Light Verification: Supports verification in low-light conditions, as specified in the brochure.
- Long-Distance Verification: Listed among the device's recognition features.
- Specified Distance: 1 metre, as shown in the source brochure.
Power Supply and Environmental Conditions
| Parameter | Specification |
|---|---|
| Power Input | DC 12V / 2A |
| Dimensions | 125 × 139 × 28.4 mm |
| Operating Temperature | Indoor: 0°C to 45°C |
| Operating Humidity | 10%–90% |
RFID Card Compatibility
-
Card Type: 125 kHz Proxy, as listed in the brochure.
Supported Software and Applications
The manufacturer lists compatibility with the following software categories and management functions:
- Desktop software
- Web-based management
- Cloud-based management
- Time and attendance management
- Access control management
- Employee Self-Service (ESS)
- Mobile application
Product Overview
The Faceguard 500 brings together biometric verification, a touchscreen interface, camera-based recognition features, and access control connectivity in one terminal. Its listed software compatibility supports attendance and entry management workflows, subject to the capabilities of the connected platform.
