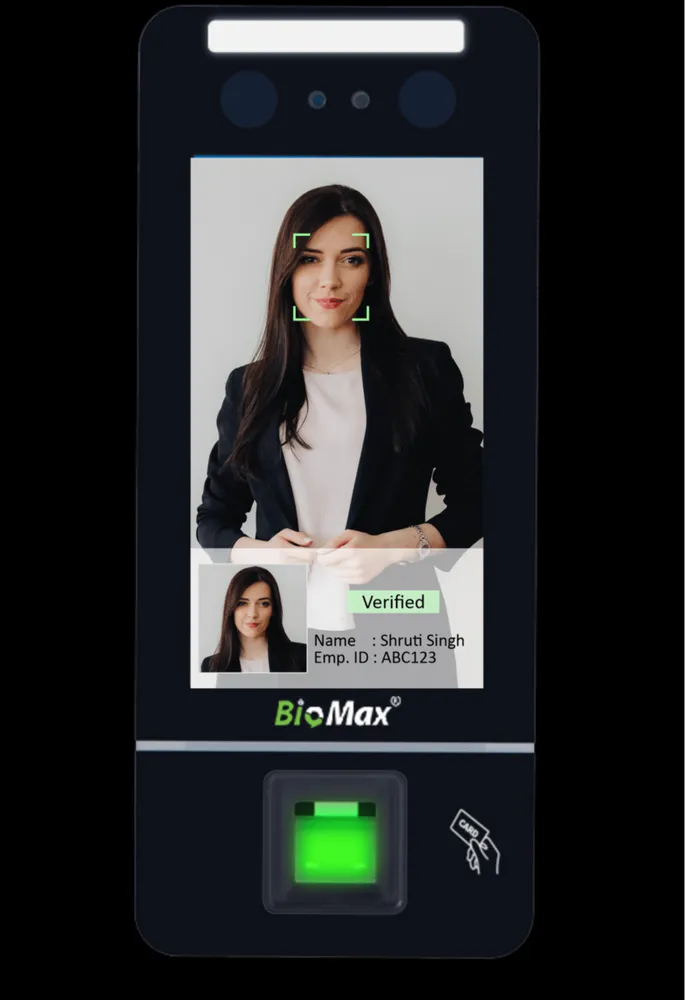

Biomax Faceguard 8 – Facial Recognition Attendance

The Faceguard 8 is a biometric terminal designed for employee attendance tracking and controlled entry management. It combines a touchscreen interface, facial verification capabilities, and multiple connectivity options to support attendance and access control operations.

Storage capacity

Features

• Large display with easy handling features.
• Dual camera for live body sensing and observation.
• Camera support low light and normal light.
• Auto ON/OFF energy-saving light.
• Visible Light Indoor Facial Recognition.
• Visible Light Facial Recognition.
• Access control to secure your premises.
• Speedy recognition to avoid long queue.
• Strong metal build quality with negligible maintenance.
• Multiple authentication modes like face, palm, fingerprint and card.

Communication and Connectivity

• Network Support: Wi-Fi and TCP/IP connectivity
• USB Interface: Available for data communication

Display and Audio Features

• Screen Type: 5-inch TFT IPS touchscreen
• Screen Resolution: 720 × 1280 pixels
• Fingerprint Sensor: 500 DPI optical sensor
• Voice Output: 16-bit Hi-Fi audio
• Voice Guidance: Supported

Biometric Recognition

• Recognition Range: Approximately 0.5–1 metre
• False Acceptance Rate (FAR): 0.00001%
• False Rejection Rate (FRR): 0.001%
• Operating System: Linux

Access Control Capabilities

• Wiegand interface support
• Relay connection for access control
• Wiegand input and output support
• External reader compatibility through Wiegand and RS485 interfaces, including remote connectivity as specified
• Push-button exit support
• Touch-free exit option

Recognition Functions

• Autofocus functionality
• Verification in low-light conditions
• Long-range verification capability
• Specified recognition distance of up to 1 metre

Power and Environmental Specifications

• Power Supply: DC 12V / 2A
• Device Dimensions: 200 × 85 × 25 mm
• Operating Temperature: 0°C to 50°C
• Operating Humidity: 10%–90% RH

RFID Card Compatibility

The terminal supports the following card options:

• 125 kHz EM cards
• 13.56 MHz MIFARE cards (optional)

Compatible Software and Management Platforms

The Faceguard 8 can be used with software and platforms supporting:

• Web-based management
• Cloud-based management
• Employee time and attendance tracking
• Access control administration
• Employee Self-Service (ESS)
• Mobile application access
