Attendance Machine

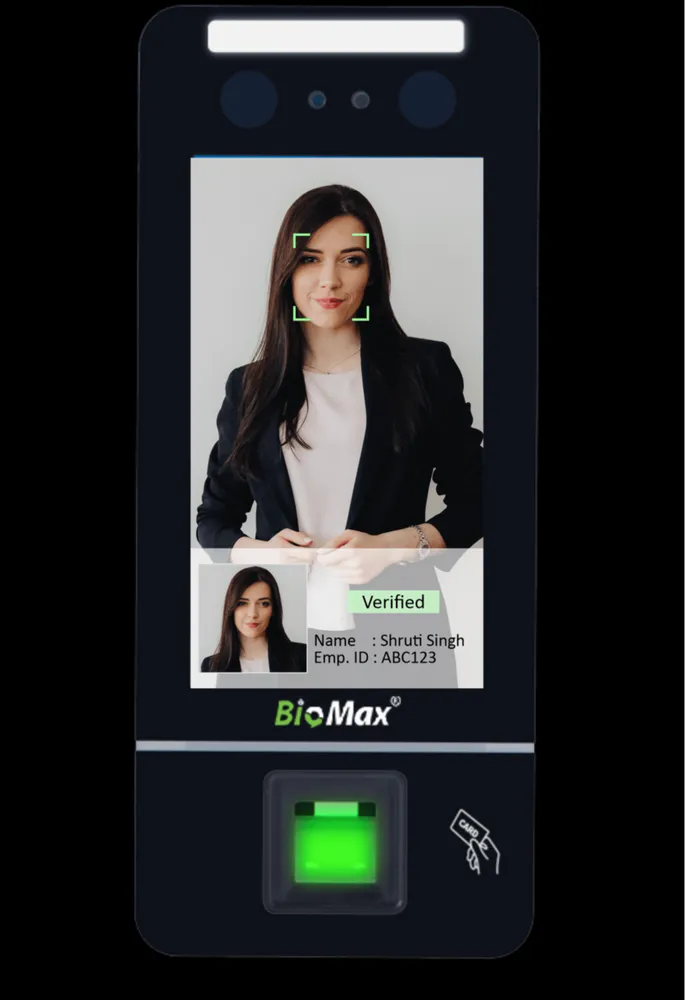

Biomax Faceguard 900 - Bimetric and Access Control Device
Biomax Faceguard 900 - Bimetric and Access Control Device
Couldn't load pickup availability
The Faceguard 900 is a biometric identification terminal designed for employee attendance management and controlled access applications. It combines facial and fingerprint recognition capabilities with RFID card support, network connectivity, and access control interfaces.
Storage Capacity
| Specification | Capacity |
|---|---|
| Face Templates | 3,000 |
| Fingerprint Templates | 10,000 |
| Card Records | 3,000 |
| Password Records | 3,000 |
| Attendance and Event Logs | 2,00,000 |
| Maximum Users | 3,000 |
Main Features
- Facial Recognition: Supports visible-light facial identification for indoor applications.
- Dual-Camera System: Uses a binocular camera arrangement for live body sensing and observation.
- Variable Lighting Support: Camera operation is listed for both normal and low-light conditions.
- Automatic Lighting Control: Includes an automatic light ON/OFF function to help manage illumination.
- Fingerprint Identification: Provides fingerprint-based verification alongside facial recognition.
- RFID Card Authentication: Supports compatible MIFARE cards for user identification.
- Metal Construction: Features a robust metal body designed for regular operational use.
- Multiple Authentication Options: Supports face, fingerprint, and card-based verification.
Communication and Connectivity
The terminal provides several interfaces for connecting with compatible networks and systems:
- Wi-Fi wireless connectivity
- TCP/IP network communication
- USB interface
Display, Camera and Audio Specifications
| Specification | Details |
|---|---|
| Display | 4.3-inch RGB capacitive touchscreen |
| Camera | 2 MP binocular camera |
| Display Technology | LCD |
| Screen Resolution | 480 × 272 pixels |
| Audio Output | 16-bit Hi-Fi voice |
| Voice Instructions | Supported |
Biometric Performance
| Parameter | Specification |
|---|---|
| Fingerprint Sensor | 500 DPI optical sensor |
| Recognition Distance | 0.5–1 metre |
| False Acceptance Rate (FAR) | 0.00001% |
| False Rejection Rate (FRR) | 0.001% |
| Operating System | Linux |
| Colour Finger Detection | Supported, as listed in the brochure |
Access Control Interfaces
The Faceguard 900 provides interfaces for integration with compatible access control equipment.
- Wiegand Interface: Supports connection with compatible access control devices.
- Relay Output: Available for access control integration.
- External Exit Reader: Wiegand output and remote output are listed in the brochure.
- Push-Button Exit: Supported.
- Touch-Free Exit: Listed as an available function.
Additional Recognition Functions
- Autofocus capability.
- Low-light verification.
- Long-distance verification.
- A verification distance of 4 feet is specified separately in the brochure.
Power and Environmental Specifications
| Specification | Details |
|---|---|
| Power Supply | DC 12V / 2A |
| Dimensions | 185 × 90 × 23.8 mm |
| Operating Temperature | −20°C to +60°C |
| Operating Humidity | 10%–90% RH |
| Protection Rating | IP65 water and dust resistance |
RFID Card Compatibility
-
Supported Card Type: 13.56 MHz MIFARE.
Software and Management Compatibility
The brochure lists support for the following software platforms and functions:
- Web-based management
- Cloud-based management
- Time and attendance management
- Access control management
- Employee Self-Service (ESS)
- Mobile application
Product Overview
The Faceguard 900 combines facial and fingerprint verification with card authentication and access control connectivity. Its listed storage capacities, touchscreen interface, and IP65-rated enclosure make it a model worth considering for attendance and entry management installations where environmental protection is required.
