BioMax BM-TDA Temperature Detection with Access Control – Entry Temperature Screening
BioMax BM-TDA Temperature Detection with Access Control – Entry Temperature Screening
📞 Call 9315441078 for Best Price
Couldn't load pickup availability
Product Details

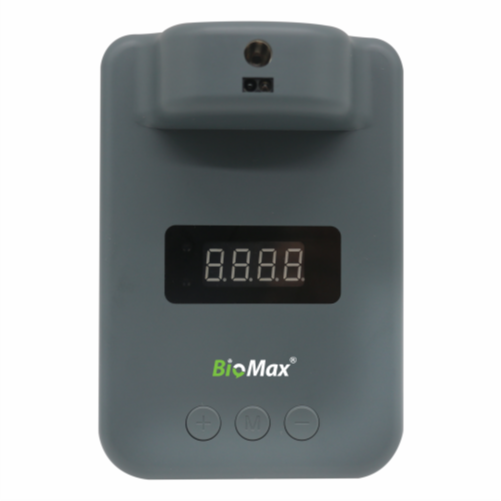

BioMax EP-TWGD Infrared Thermometer with Access Controller
The BioMax EP-TWGD is a non-contact infrared temperature measurement device integrated with an access control controller. Designed for secure entry environments, it provides quick and accurate body temperature screening while supporting access control functions such as Wiegand communication, relay output, and alarm notification.
Featuring an infrared LED sensor, digital display, and rapid measurement capability of less than 0.5 seconds, the device helps organizations maintain safer access points by identifying abnormal temperatures before allowing entry.
Key Features
Non-Contact Temperature Detection
Measures body temperature without physical contact, helping reduce contamination risks in high-traffic areas.
High Measurement Accuracy
Provides accurate temperature measurement with ±0.2°C precision for reliable screening.
Fast Temperature Reading
Completes temperature measurement in less than 0.5 seconds for smooth user flow.
Integrated Access Control
Supports relay output and Wiegand input/output communication for connection with access control systems.
Temperature Alarm Function
Provides configurable high-temperature alarm settings with support for external alarm connection.
Wall Mounted Design
Compact wall-mounted structure suitable for entrances, offices, and controlled access points.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | BioMax |
| Model | EP-TWGD |
| Product Type | Infrared Thermometer with Access Controller |
| Temperature Sensor | WTTS00 Infrared LED Sensor |
| Temperature Accuracy | ±0.2°C |
| Measurement Time | < 0.5 Seconds |
| Measuring Distance | 5–10 cm |
| Body Temperature Range | 35°C to 42.9°C |
| Working Voltage | 5V–12V DC Input |
| Working Temperature | 5°C to 40°C |
| Display | Digital Display with Infrared LED Indicator |
| Relay Output | Built-in Relay |
| Communication | Wiegand Input / Output |
| Alarm Function | Built-in Alarm with External Alarm Support |
| Dimensions | 130 × 90 × 53 mm |
| Weight | 240 g |
| Installation Type | Wall Mounted |
| Certificates | CE / FCC |
| Packaging | Neutral Packaging |
Configuration Settings
- Administrator Password: Default password 0000 with option to set a new password.
- High Temperature Alarm Setting: Adjustable temperature threshold (default 37.5°C).
- Temperature Compensation: Adjustable compensation value in 0.1°C steps.
- Alarm Control: Alarm can be enabled or disabled as required.
- Interval Time Setting: Adjustable measurement interval from 3 to 90 seconds.
- Password Management: Administrator password can be modified through menu settings.
Applications
- Office Building Entrances
- Corporate Access Points
- Hospitals and Healthcare Facilities
- Schools and Institutions
- Factories and Industrial Areas
- Security Checkpoints
- Restricted Access Locations
Why Choose BioMax EP-TWGD?
The BioMax EP-TWGD combines temperature screening and access control in a single compact device. With fast non-contact measurement, configurable alarms, relay control, and Wiegand connectivity, it provides an efficient solution for safer and smarter entry management.
