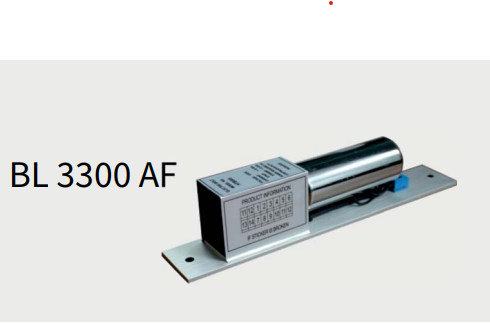

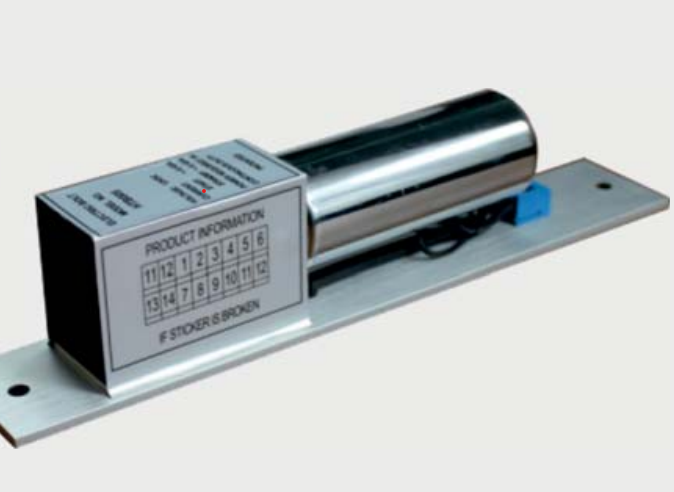

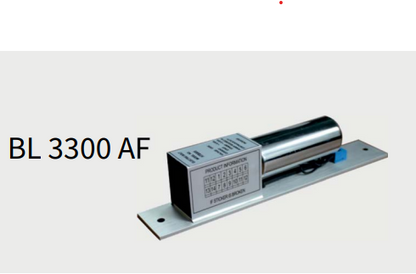

BioMax BL-3300-AF Heavy Duty Electric Drop Bolt Lock
The BioMax BL-3300-AF is a heavy-duty mortise-mounted electric drop bolt lock designed for concealed, high-security door locking applications. Unlike conventional surface-mounted electromagnetic locks, it uses a solid steel deadbolt mechanism that securely engages with the door frame, providing superior strength and a clean architectural appearance.
Engineered for commercial and industrial access control environments, the BL-3300-AF is suitable for wooden doors, metal doors, and framed glass doors. Its concealed installation design makes it ideal for modern offices, security rooms, and premium access-controlled entrances where aesthetics and protection are equally important.
Key Features
Concealed Mortise Installation
Designed for in-door or frame installation, providing a clean appearance without external locking hardware.
High Security Deadbolt Mechanism
Uses a solid locking bolt that engages directly into the frame for enhanced resistance against forced entry.
Heavy Duty 400 kg Holding Force
Provides strong locking performance suitable for high-security commercial applications.
Low Voltage Operation
Operates on a DC 12V power supply for compatibility with modern access control systems.
Wide Door Compatibility
Supports wooden doors, metal doors, and framed glass door installations.
Access Control Integration
Works with RFID readers, biometric systems, exit switches, and centralized access controllers.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | BioMax |
| Model | BL-3300-AF |
| Product Type | Mortise Mounted Electric Drop Bolt Lock |
| Locking Mechanism | Solid Steel Deadbolt System |
| Wiring Configuration | 2-Wire Direct Low Voltage Power Circuit |
| Working Voltage | DC 12V |
| Standby Current | 450 mA |
| Holding Force | Up to 400 kg (Approx. 880 lbs) |
| Dimensions | 200 × 34 × 42 mm |
| Hardware Weight | 0.4 kg to 0.8 kg (Depending on Faceplate Accessories) |
| Door Compatibility | Wooden Doors, Metal Doors, Framed Glass Doors |
| Operating Humidity | 0% to 95% RH (Non-Condensing) |
Applications
- Corporate Office Entrances
- High-Security Rooms
- Server Rooms
- Industrial Facilities
- Banking and Financial Areas
- Premium Glass and Wooden Doors
- Restricted Access Zones
Why Choose BioMax BL-3300-AF?
The BioMax BL-3300-AF delivers a powerful concealed locking solution with exceptional holding strength and reliable access control integration. Its mortise design, heavy-duty deadbolt mechanism, and compatibility with multiple door types make it an excellent choice for secure and aesthetically sensitive installations.
