BioMax C22 Network Access Controller – 2-Door Access Management
BioMax C22 Network Access Controller – 2-Door Access Management
📞 Call 9315441078 for Best Price
Couldn't load pickup availability
Product Details

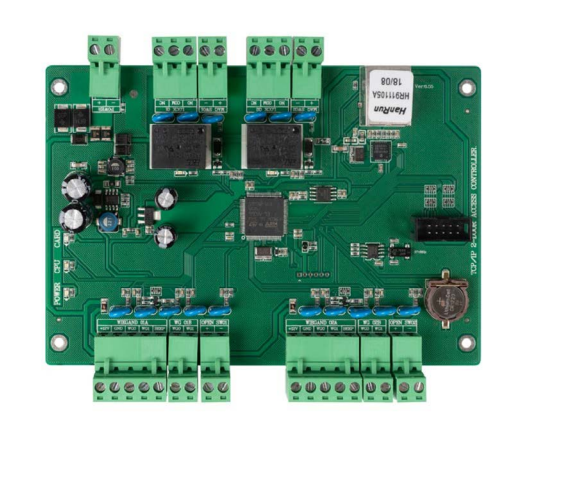

BioMax Security C-22 Two Door Access Controller
The BioMax Security C-22 is a next-generation intelligent network access control board designed for secure and efficient two-door access management. Equipped with a powerful network processor and large-capacity memory, it enables high-speed data processing, real-time network communication, and reliable user data management for professional security applications.
The C-22 provides centralized control for offices, schools, factories, residential communities, and commercial buildings. With support for up to 42,000 registered cards and 200,000 access records, it delivers a scalable and dependable access control solution with TCP/IP networking and multiple Wiegand reader compatibility.
Key Features
Two Door Access Control
Manages two doors with support for four Wiegand readers, providing secure entry and exit management for different areas.
High-Speed Network Processing
Uses an advanced network processor to provide fast data exchange and stable communication with access management systems.
Large User & Record Capacity
Supports up to 42,000 registered cards and stores up to 200,000 access records for efficient monitoring and reporting.
Multiple Reader Compatibility
Supports Wiegand 26, Wiegand 34, and Wiegand 66 communication protocols for flexible reader integration.
TCP/IP Communication
Provides reliable network communication through TCP/IP for centralized access management and remote operation.
Optional Alarm Integration
Supports connection with an optional alarm panel to enhance security monitoring and emergency response capabilities.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | BioMax Security |
| Model | C-22 |
| Product Type | Two Door Access Control Board |
| Door Control | 2 Doors |
| Readers Supported | 4 Readers |
| Exit Button | 2 Groups |
| Door Sensor Interface | 2 Groups |
| Relay Output | 2 Groups |
| Alarm Extension | Optional Alarm Panel |
| Reading Protocol | Wiegand 26 / Wiegand 34 / Wiegand 66 |
| Registered Cards | 42,000 (Expandable) |
| Record Capacity | 200,000 Records (Expandable) |
| Working Voltage | DC 9V – 14V |
| Working Current | < 300 mA |
| Operating Temperature | 0°C – 70°C |
| Operating Humidity | 10% – 90% RH |
| Communication Type | TCP/IP |
| Communication Distance | TCP/IP: 100 m |
| Wiegand Distance | 80 m |
| Dimensions (L × W × H) | 157 × 130 × 20 mm |
Applications
- Corporate Offices
- Commercial Buildings
- Factories & Warehouses
- Schools & Universities
- Residential Communities
- Hospitals
- Server Rooms
- Restricted Access Areas
Why Choose BioMax Security C-22?
The BioMax Security C-22 Two Door Access Controller combines powerful processing, high-capacity storage, reliable TCP/IP networking, and flexible reader compatibility into a compact access control solution. Its expandable design, optional alarm integration, and professional-grade performance make it suitable for organizations requiring secure and scalable door management.
