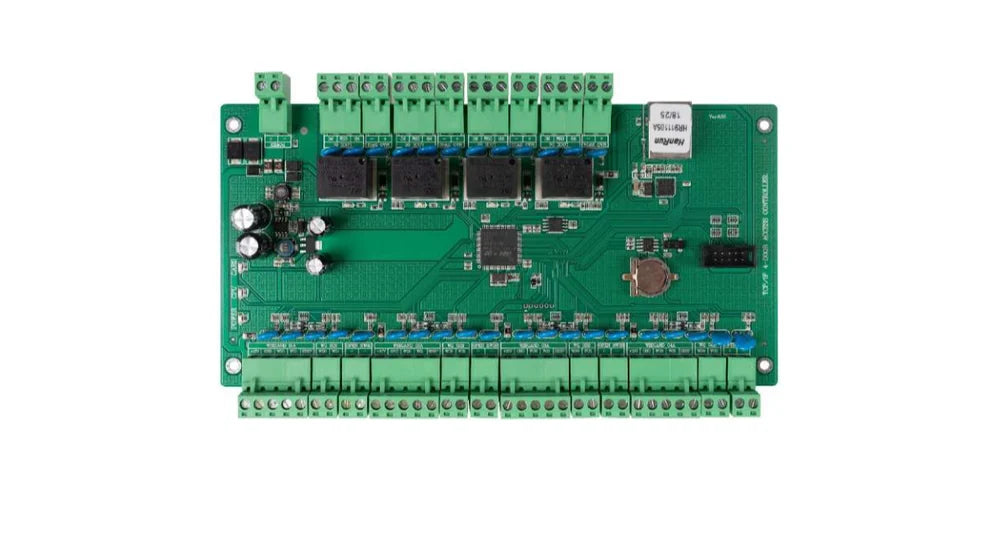

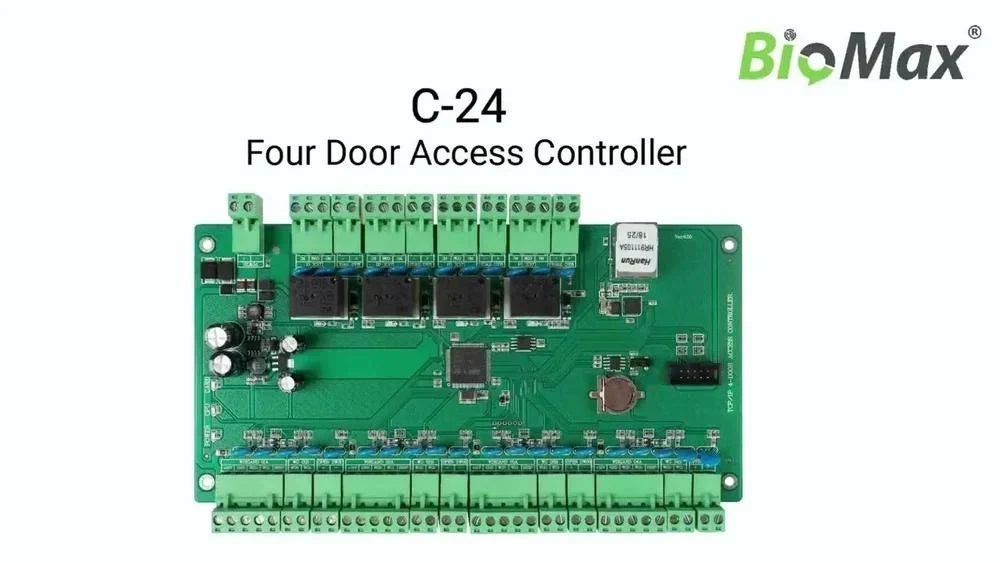

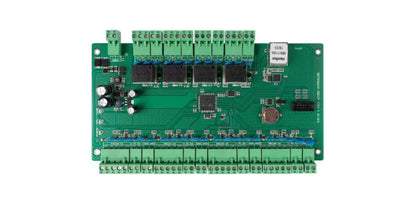

BioMax C-24 Four Door Access Control Board
The BioMax C-24 is a next-generation intelligent four-door access control board designed for professional access management in offices, commercial buildings, educational institutions, factories, residential communities, and high-security facilities. Powered by a high-performance network processor with large-capacity memory, it delivers fast data processing, reliable network communication, and efficient management of thousands of users.
Supporting up to 42,000 registered users and 200,000 event records, the C-24 provides secure four-door management through TCP/IP networking, multiple Wiegand reader support, alarm expansion interfaces, and flexible integration with modern access control systems.
Key Features
Four Door Access Management
Controls up to four independent doors while supporting eight Wiegand readers for secure entry and exit control.
Large User & Event Storage
Supports up to 42,000 registered cards and stores 200,000 access event records for reliable long-term operation.
High-Speed TCP/IP Communication
Built with an advanced network processor to provide fast and stable communication with centralized access control software.
Comprehensive Alarm Integration
Supports multiple alarm inputs and outputs, including fire alarm, burglar alarm, gas alarm, and security probe integration.
Wide Wiegand Compatibility
Compatible with Wiegand 26, Wiegand 34, and Wiegand 66 readers for flexible system integration.
Reliable Industrial Design
Engineered for continuous operation with stable performance, low power consumption, and dependable access management.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | BioMax |
| Model | C-24 |
| Product Type | Four Door Access Control Board |
| Door Capacity | 4 Doors |
| Supported Readers | 8 Wiegand Readers |
| Reading Protocol | Wiegand 26 / Wiegand 34 / Wiegand 66 |
| User Capacity | 42,000 Cards |
| Event Log Capacity | 200,000 Records |
| Working Voltage | DC 9V – 14V |
| Working Current | < 300 mA |
| Operating Temperature | 0°C – 70°C |
| Operating Humidity | 10% – 90% RH |
| Exit Button Inputs | 4 Groups |
| Door Sensor Interfaces | 4 Groups |
| Relay Outputs | 4 Groups |
| Alarm Expansion | 4 Inputs & 4 Outputs (Fire Alarm, Burglar Alarm, Gas Alarm, Probe Alarm) |
| Communication Type | TCP/IP |
| Communication Distance | TCP/IP: 100 m | Wiegand: 80 m |
| Dimensions (L × W × H) | 212 × 130 × 20 mm |
Applications
- Corporate Offices
- Commercial Complexes
- Factories & Industrial Facilities
- Educational Institutions
- Residential Communities
- Hospitals
- Banks & Financial Institutions
- Government Buildings & High-Security Areas
Why Choose BioMax C-24?
The BioMax C-24 Four Door Access Control Board combines intelligent networking, large-capacity user management, TCP/IP communication, and flexible alarm integration into a reliable access control platform. Supporting four-door control, multiple Wiegand protocols, and enterprise-grade event storage, it offers an efficient, scalable, and secure solution for professional access control installations.
