eSSL Security

eSSL C3-100 Plus 1-Door Card-Based Access Control Panel

Rs. 11,409.00

~~Rs. 14,832.00~~ Rs. 11,409.00

Sale Sold out

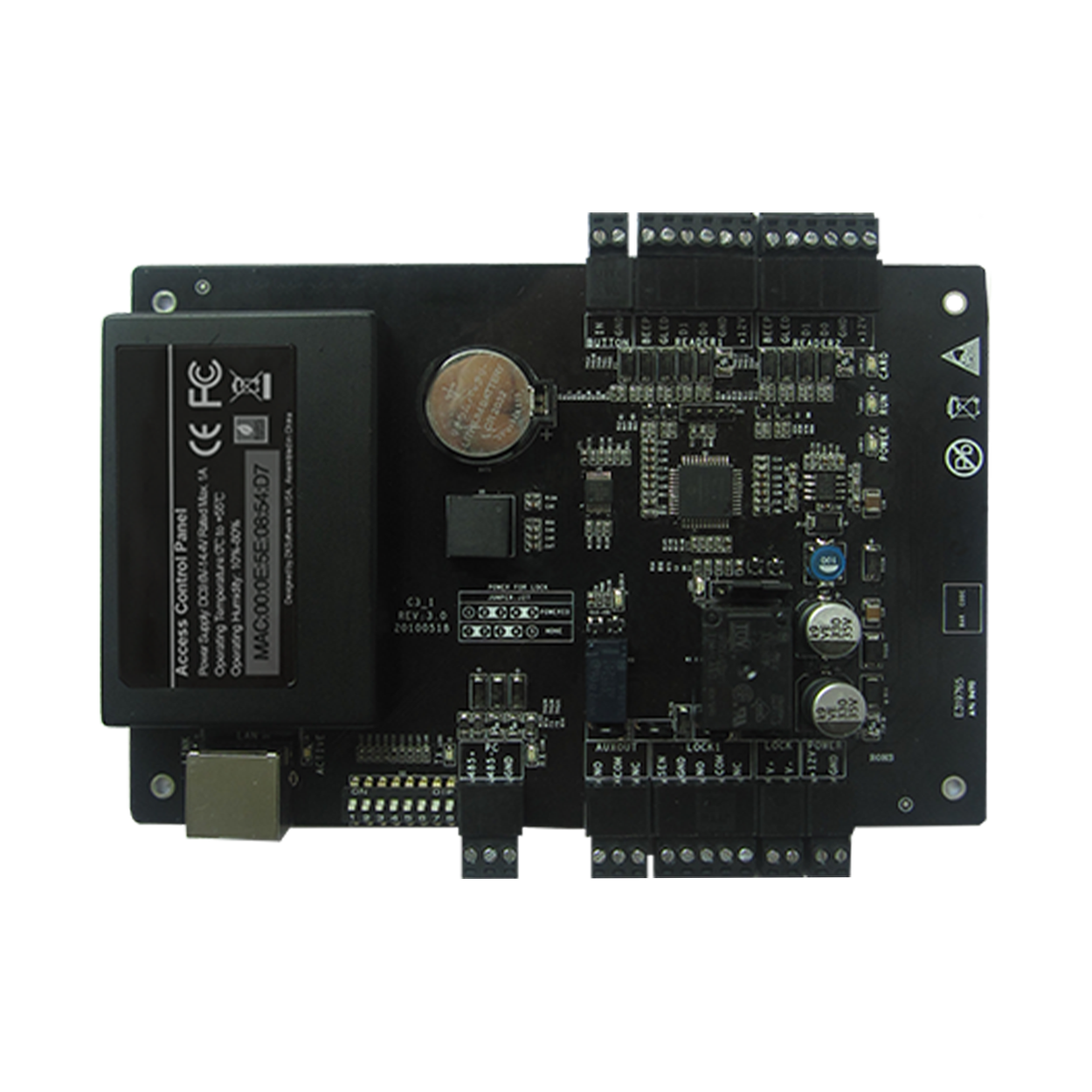

eSSL C3-100 Plus Door Access Control Controller

The eSSL C3-100 Plus is a professional single-door access control panel designed for secure and centralized access management. Powered by Linux OS, it supports large card and transaction capacities along with advanced access control functions, making it suitable for offices, commercial buildings, and high-security installations.

Key Features

Controls 1 door from a single controller
Linux operating system for stable and reliable performance
30,000 card capacity, expandable to 100,000 with a license
Stores up to 500,000 transaction records
Supports 26-bit Wiegand readers
Real-time monitoring through web browser
Supports remote door opening and closing
Advanced Anti-passback and Interlock functions
Multiple verification methods support
Centralized access management solution

Technical Specifications

Specification	Details
Model	C3-100 Plus
Product Type	Single Door Access Control Controller
Operating System	Linux OS
Number of Doors	1 Door
Card Capacity	30,000 Cards (Default), Expandable to 100,000 with License
Transaction Capacity	500,000 Records
Communication	TCP/IP
Number of Readers Supported	2 × 26-bit Wiegand Readers
Reader Type	26-bit Wiegand
Number of Inputs	2 (1 Exit Button, 1 Door Status)
Number of Outputs	2 (1 Form-C Relay for Lock and 1 Form-C Relay for AUX Output)
Mounting	Wall Mount
Power Supply	9.6V – 14.4V DC
Operating Temperature	0°C to 45°C
Operating Humidity	20% to 80% RH (Non-Condensing)
Dimensions (L × W × H)	175 × 99 × 19.3 mm
Access Control Interface	Wiegand (Card Reader / QR Code Reader)
Communication Ports	TCP/IP, Wiegand Input ×2, AUX Output ×1, Lock ×1, Door Sensor ×1, Exit Button ×1, Alarm ×1
Supported Software	eSSL Bio CV Security 6.4.1 (Web Version)
Supported Databases	PostgreSQL (Default), MS SQL, Oracle
