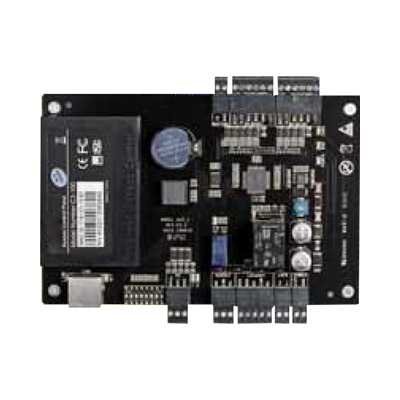

eSSL C3-200 Network Access Controller – 2-Door Access Management

📞 Call 9315441078 for Best Price

eSSL C3-200 Door Access Control Controller

The eSSL C3-200 is a professional 2-door access control panel designed for secure and centralized access management. It supports TCP/IP and RS485 communication, large card and event capacities, and integrates seamlessly with a wide range of card readers for commercial and enterprise security applications.

Key Features

Controls up to 2 doors from a single controller
Stores up to 30,000 card holders
Stores up to 100,000 event records
Supports TCP/IP and RS485 communication
Built-in auxiliary input and output interfaces
Supports a full range of card readers
Wall-mount design with powder-coated aluminium enclosure
Centralized access control and monitoring

Technical Specifications

Specification	Details
Model	C3-200
Product Type	2-Door Access Control Controller
Number of Doors	2 Doors
Card Holder Capacity	30,000 Cards
Log Events Capacity	100,000 Records
Communication	TCP/IP and RS485
Number of Readers Supported	4 Readers
Reader Types Supported	26-bit Wiegand, others upon request
Number of Inputs	6 (2 Exit Devices, 2 Door Status Inputs, 2 AUX Inputs)
Number of Outputs	4 (2 Form-C Relays for Locks and 2 Form-C Relays for AUX Outputs)
Enclosure	Powder Coated Aluminium
Mounting	Wall Mount
Recommended Power Supply	12V DC, 1.5A
Board Dimensions	160 × 106 mm
Bundle Dimensions	380 × 80 × 280 mm (L × W × H)
Weight	7.5 lbs (3.4 kg)
