eSSL Security

eSSL C3-200 Plus 2-Door Card-Based Access Control Panel

Rs. 16,306.00

~~Rs. 19,567.00~~ Rs. 16,306.00

Sale Sold out

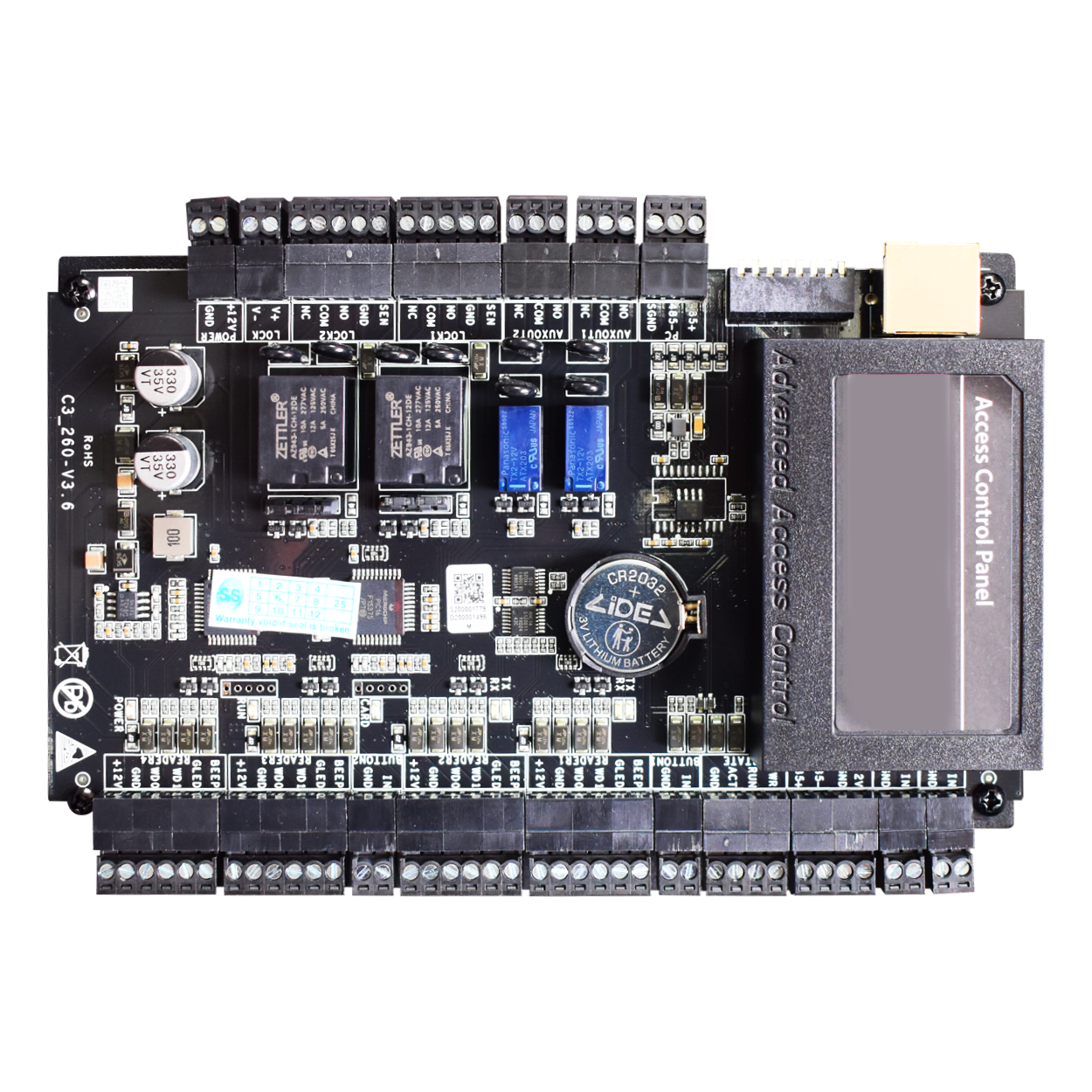

eSSL C3-200 Plus Door Access Control Controller

The eSSL C3-200 Plus is a professional 2-door access control panel designed for centralized security management in offices, commercial buildings, and industrial facilities. Powered by Linux OS, the controller offers large user capacity, advanced access control features, and seamless integration with Wiegand and RS485 readers.

Key Features

Controls up to 2 doors from a single controller
Linux operating system for reliable performance
30,000 card capacity, expandable to 100,000 with a license
Stores up to 500,000 transaction records
Supports Wiegand and RS485 readers
Real-time monitoring through web browser
Supports remote door opening and closing
Advanced Anti-passback and Interlock functions
Supports multiple verification methods
Centralized and scalable access management solution

Technical Specifications

Specification	Details
Model	C3-200 Plus
Product Type	2-Door Access Control Controller
Operating System	Linux OS
Number of Doors	2 Doors
Card Capacity	30,000 Cards (Default), Expandable to 100,000 with License
Transaction Capacity	500,000 Records
Communication	TCP/IP
Supported Readers	4 × RS485 Readers or 4 × 26-bit Wiegand Readers
Reader Types	26-bit Wiegand and RS485 Readers
Number of Inputs	6 (2 Exit Devices, 2 Door Status Inputs, 2 AUX Inputs)
Number of Outputs	4 (2 Form-C Lock Relays and 2 Form-C AUX Relays)
Mounting	Wall Mount
Power Supply	9.6V – 14.4V DC
Operating Temperature	0°C to 45°C
Operating Humidity	20% to 80% RH (Non-Condensing)
Dimensions (L × W × H)	175 × 99 × 19.3 mm
Access Control Interface	Wiegand (Card Reader / QR Code Reader), RS485 (Card Reader)
Communication Ports	TCP/IP ×1, RS485 ×4, Wiegand ×4, AUX Inputs ×2, AUX Outputs ×2, Lock ×2, Door Sensor ×2, Exit Button ×2, Alarm ×2
Supported Software	eSSL Bio CV Security 6.4.1 (Web Version)
Supported Databases	PostgreSQL (Default), MS SQL, Oracle
