eSSL C3-400 Plus 4-Door Card-Based Access Control Panel

Rs. 18,954.00

~~Rs. 24,640.00~~ Rs. 18,954.00

Sale Sold out

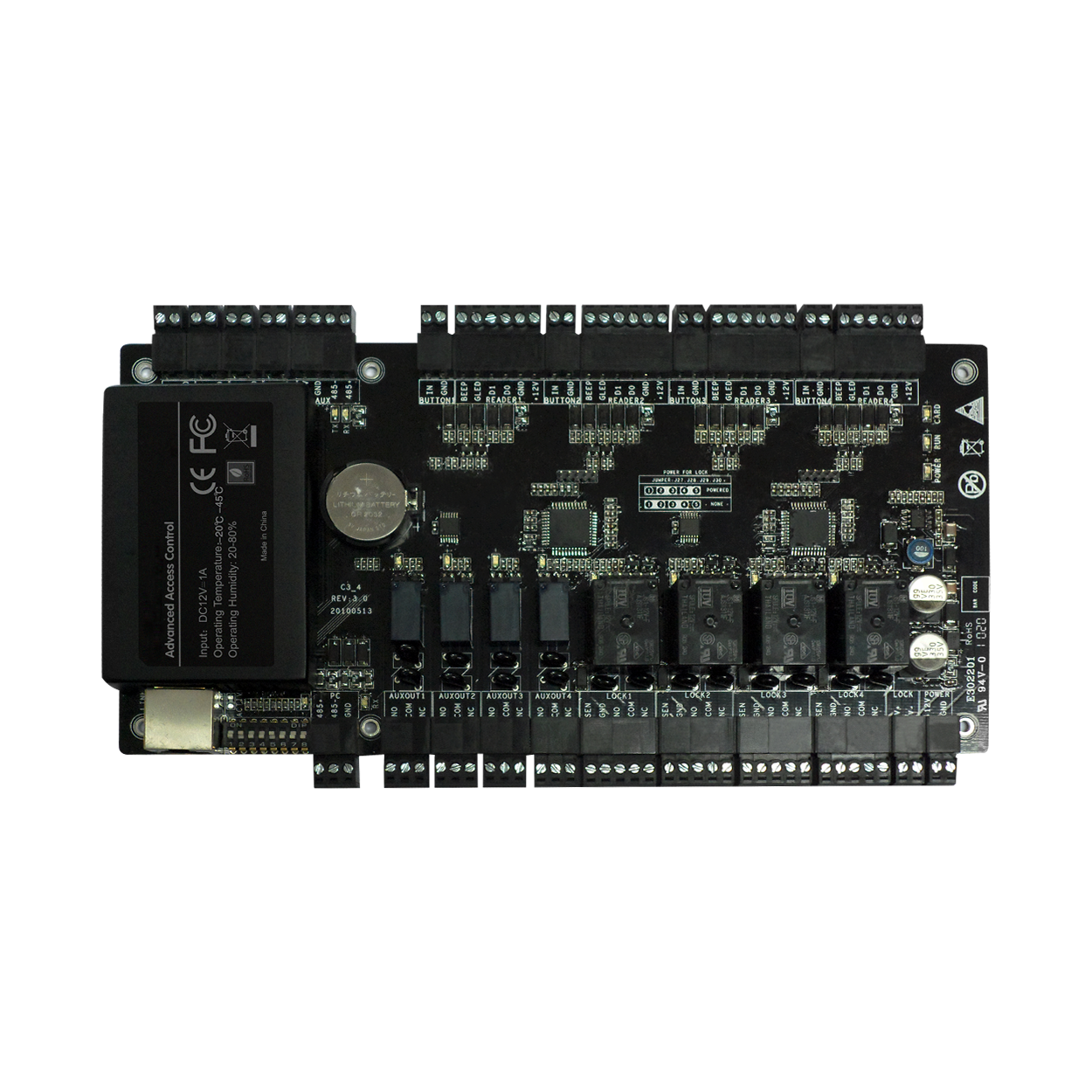

eSSL C3-400 Plus Door Controller

The eSSL C3-400 Plus is a professional 4-door access control panel designed for enterprise security applications. Powered by Linux OS, it offers high user capacity, advanced access control features, and centralized management through TCP/IP communication, making it ideal for commercial and industrial installations.

Key Features

Controls up to 4 doors from a single controller
Linux operating system for reliable performance
30,000 card capacity, expandable to 100,000 with a license
Stores up to 500,000 transaction records
Supports Wiegand and RS485 readers
Real-time monitoring through web browser
Supports remote door opening and closing
Advanced Anti-passback and Interlock functions
Supports multiple verification methods
Scalable and centralized access management solution

Technical Specifications

Specification	Details
Model	C3-400 Plus
Product Type	4-Door Access Controller
Operating System	Linux OS
Number of Doors	4 Doors
Card Capacity	30,000 Cards (Default), Expandable to 100,000 with License
Transaction Capacity	500,000 Records
Communication	TCP/IP
Supported Readers	8 × RS485 Readers or 4 × 26-bit Wiegand Readers
Reader Types	26-bit Wiegand and RS485 Readers
Number of Inputs	12 (4 Exit Devices, 4 Door Status Inputs, 4 AUX Inputs)
Number of Outputs	8 (4 Form-C Lock Relays and 4 Form-C AUX Relays)
Mounting	Wall Mount
Power Supply	9.6V – 14.4V DC
Operating Temperature	0°C to 45°C
Operating Humidity	20% to 80% RH (Non-Condensing)
Dimensions (L × W × H)	215.88 × 99.14 × 19.3 mm
Access Control Interface	Wiegand (Card Reader / QR Code Reader), RS485 (Card Reader)
Communication Ports	TCP/IP ×1, RS485 ×8, Wiegand ×4, AUX Inputs ×4, AUX Outputs ×4, Lock ×4, Door Sensor ×4, Exit Button ×4, Alarm ×4
Supported Software	eSSL BioCVSecurity 6.4.1 (Web Version)
Supported Databases	PostgreSQL (Default), MS SQL, Oracle
