Product Details

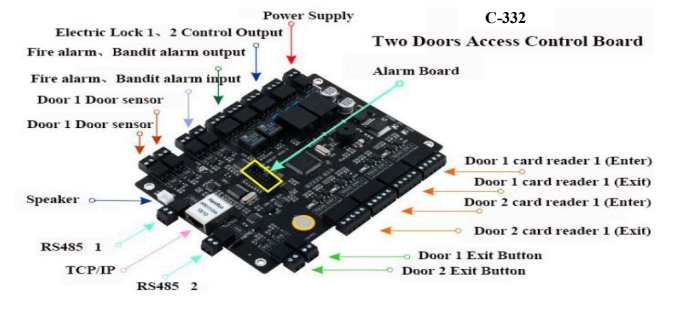

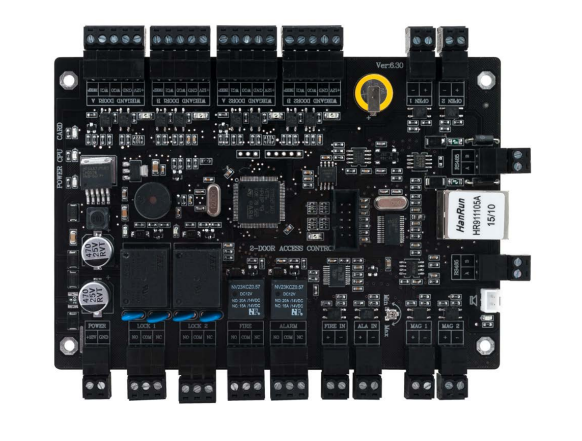

BioMax C-332 Two Door Access Control Board
The BioMax C-332 is a high-performance two-door access control board built around a powerful 32-bit core processor with high-capacity FLASH memory. Designed for professional access control systems, it provides secure and reliable management of two doors while supporting LAN and WAN communication through TCP/IP and RS485 interfaces.
Ideal for offices, commercial buildings, banks, schools, factories, and residential communities, the C-332 supports up to 120,000 users and 300,000 event logs. It offers advanced security functions including anti-passback, multi-door interlocking, remote management, attendance tracking, alarm monitoring, and encrypted communication for enterprise-level access control.
Key Features
Two Door Access Management
Controls up to two independent doors with support for four Wiegand readers for secure entry and exit management.
High User & Event Capacity
Stores up to 120,000 user cards and 300,000 access event records, making it suitable for medium and large-scale installations.
Advanced Access Control Functions
Supports card authentication, password access, card + password verification, remote unlock, anti-passback, multi-card unlocking, interlocking, duress alarm, blacklist management, and scheduled access.
Professional Communication
Features TCP/IP and RS485 communication for reliable networking, centralized monitoring, and remote controller management.
Integrated Security Features
Built-in fire linkage, bandit alarm interface, voice speaker, door monitoring, emergency lock, and intelligent alarm management enhance system security.
Smart Enterprise Functions
Supports encrypted communication, remote firmware upgrades, attendance management, automatic clock correction, voice guidance, patrol management, and system diagnostics.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | BioMax |
| Model | C-332 |
| Product Type | Two Door Access Control Board |
| Door Capacity | 2 Doors |
| Supported Readers | 4 Wiegand Readers |
| Reading Protocol | Wiegand 26 / Wiegand 34 / Wiegand 66 |
| User Capacity | 120,000 Cards |
| Event Log Capacity | 300,000 Records |
| Working Voltage | 12V DC |
| Working Current | < 350 mA |
| Operating Temperature | -25°C to 70°C |
| Operating Humidity | 10% – 90% RH |
| Exit Button Inputs | 2 |
| Door Sensor Inputs | 2 |
| Fire Linkage Input | 1 |
| Bandit Alarm Input | 1 |
| Built-in Voice Speaker | Yes |
| Communication | TCP/IP + RS485 |
| Communication Distance | RS485: 1200 m | TCP/IP: 100 m | Wiegand: 80 m |
| Dimensions (L × W × H) | 150 × 105 × 20 mm |
| Color | Black |
Applications
- Corporate Offices
- Commercial Buildings
- Banks & Financial Institutions
- Educational Institutions
- Factories & Warehouses
- Residential Communities
- Hospitals
- Government & High-Security Facilities
Why Choose BioMax C-332?
The BioMax C-332 Two Door Access Control Board combines powerful processing, large storage capacity, intelligent access control functions, and enterprise-grade communication into a compact controller. With advanced security features such as anti-passback, multi-door interlocking, encrypted communication, attendance management, and remote firmware upgrades, it offers a reliable and scalable solution for professional two-door access control systems.
