BioMax C334 Network Access Controller – 4-Door Access Management
BioMax C334 Network Access Controller – 4-Door Access Management
Couldn't load pickup availability
Product Details

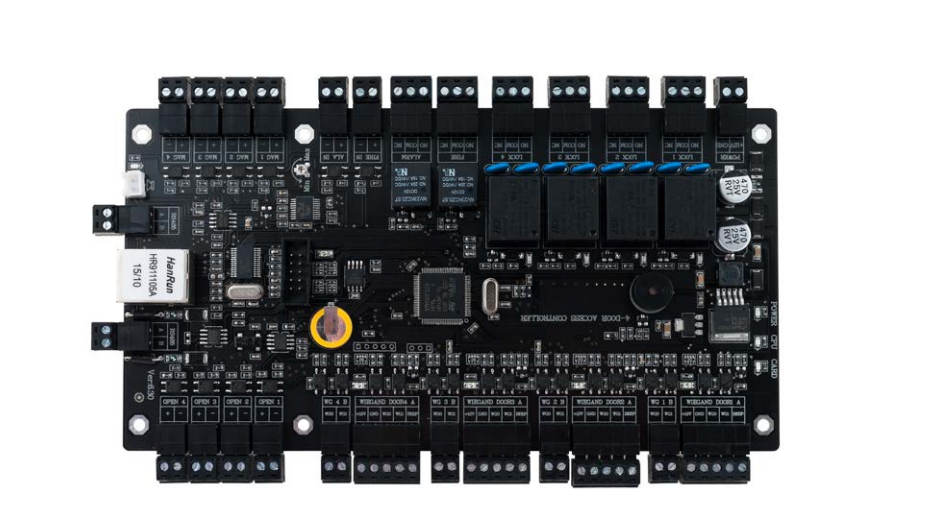

BioMax C-334 Four Door Access Control Board
The BioMax C-334 is a professional-grade four-door access control board designed for centralized security management in offices, commercial buildings, factories, educational institutions, banks, and high-security facilities. It supports up to 120,000 users and 300,000 event records, providing reliable, high-capacity access management for medium and large installations.
Featuring TCP/IP and RS485 communication, support for Wiegand 26/34/66 readers, multiple alarm interfaces, advanced anti-passback functions, multi-door interlocking, and time attendance capabilities, the C-334 delivers enterprise-level security with flexible system integration and remote management.
Key Features
Four Door Centralized Control
Controls up to four independent doors while supporting eight Wiegand readers for entry and exit management.
Large User & Event Capacity
Supports up to 120,000 user cards and stores up to 300,000 access event logs for enterprise-level installations.
Advanced Access Control Functions
Supports card, password, card + password, first card, multi-card authentication, remote unlock, anti-passback, interlocking, duress alarm, blacklist management, and scheduled access.
Enterprise Communication
Equipped with TCP/IP and RS485 communication for reliable networking and long-distance controller connectivity.
Built-in Security & Alarm Interfaces
Includes fire linkage, bandit alarm, door sensor inputs, voice prompts, alarm outputs, and emergency lock functionality for enhanced security.
Intelligent System Features
Supports encrypted communication, automatic time correction, remote firmware upgrades, reader fault detection, voice guidance, attendance management, and holiday/time zone scheduling.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | BioMax |
| Model | C-334 |
| Product Type | Four Door Access Control Board |
| Door Capacity | 4 Doors |
| Supported Readers | 8 Wiegand Readers |
| Reading Protocol | Wiegand 26 / Wiegand 34 / Wiegand 66 |
| User Capacity | 120,000 Cards |
| Event Log Capacity | 300,000 Records |
| Working Voltage | 12V DC |
| Working Current | < 500 mA |
| Operating Temperature | -25°C to 70°C |
| Operating Humidity | 10% – 90% RH |
| Exit Button Inputs | 4 |
| Door Sensor Inputs | 4 |
| Fire Linkage Input | 1 |
| Bandit Alarm Input | 1 |
| Built-in Voice Speaker | Yes |
| Communication | TCP/IP + RS485 |
| Communication Distance | RS485: 1200 m | TCP/IP: 100 m | Wiegand: 80 m |
| Dimensions (L × W × H) | 200 × 105 × 20 mm |
| Color | Black |
Applications
- Corporate Offices
- Commercial Buildings
- Factories & Industrial Facilities
- Educational Institutions
- Hospitals
- Banks & Financial Institutions
- Government Buildings
- Data Centers & High-Security Areas
Why Choose BioMax C-334?
The BioMax C-334 Four Door Access Control Board combines high user capacity, enterprise-grade communication, advanced authentication methods, intelligent alarm management, and professional access control features into a powerful centralized controller. With support for multiple readers, four-door management, anti-passback, interlocking, attendance, encrypted communication, and remote firmware upgrades, it provides a scalable and secure solution for modern access control installations.
