Cosec Argo Cax RFID Card Based Ultra Fast Door Controller

Cosec Argo Cax RFID Card Based Ultra-Fast Door Controller

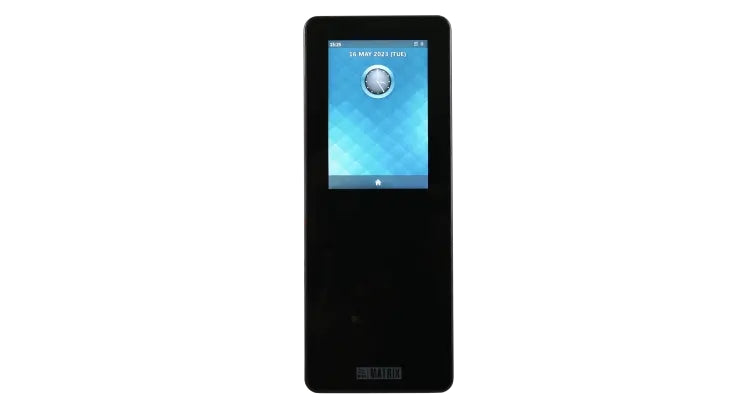

The Cosec Argo Cax is an advanced, ultra-fast RFID card-based biometric door controller designed for enhanced access control and time-attendance applications. Featuring multi-credential support, including BLE, RFID cards, and PIN, the Cosec Argo Cax ensures versatile and secure access for a variety of applications. With robust Wi-Fi, PoE, Ethernet, BLE, USB, and 3G/4G/LTE connectivity options, it is perfect for any security infrastructure. Its massive storage capacity supports up to 50,000 users and 500,000 event logs, making it ideal for both small and large-scale operations.

The Cosec Argo Cax comes with an IP65 ingress protection rating and IK06 vandal protection, ensuring its durability in any environment. It also features a 3.5" capacitive touchscreen with Gorilla Glass for long-lasting performance and clarity. Whether you need a reliable access control solution or a time-attendance management system, the Cosec Argo Cax offers the perfect blend of performance, scalability, and security.

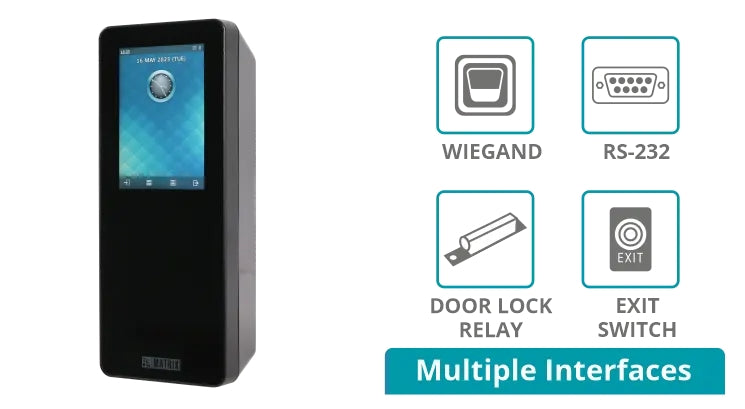

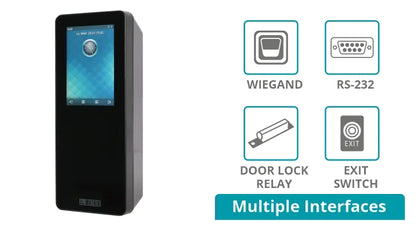

Interface Diagram

Features

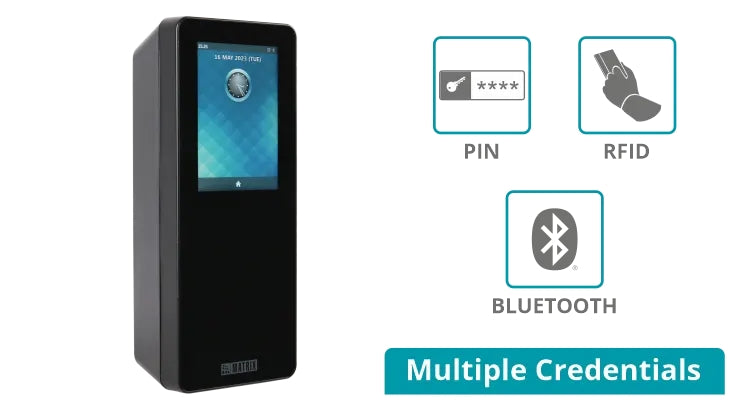

• Multi-Credential Support: Supports BLE, RFID cards, and PIN for seamless access control.
• Massive Storage Capacity: Can store up to 50,000 users and 500,000 event logs.
• Enhanced Connectivity Options: Offers Wi-Fi, PoE, Ethernet, USB, 3G/4G/LTE, and Bluetooth® for seamless integration.
• Durability: With IP65 ingress protection and IK06 vandal protection, the device is designed to withstand harsh environments.
• Fast and Reliable: Ultra-fast performance ensures quick user authentication and smooth operation.
• User-Friendly Display: The 3.5" capacitive touchscreen provides intuitive operation, featuring Gorilla Glass for enhanced durability.

Technical Specifications

General Specifications

• Maximum Users: 50,000
• Event Logs Capacity: 500,000

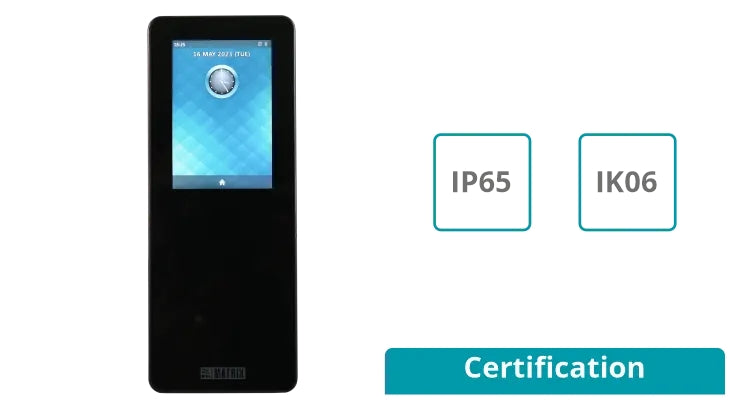

• Ingress Protection: IP65
• Vandal Resistance: IK06
• Display: 3.5" IPS capacitive touchscreen with Gorilla Glass

Connectivity

• Wi-Fi: 802.11 b/g/n
• Bluetooth®: Built-in BLE (8m range)
• Ethernet: 10/100 Mbps
• PoE: IEEE 802.3 af
• Mobile Broadband: Yes (via USB modem)
• USB: Micro USB-Port (data transfer and 2G/3G dongle support)

Security Features

• Tamper Detection: Yes
• Thermal Sensor: Built-in to indicate overheat conditions
• Power Supply: 12V DC @ 2A
• Power to Door Lock: 12V DC @ 0.5A (from the device)

Hardware

• CPU: 800 MHz ARM Cortex A8
• Memory: 512 MB Flash + 512 MB DDR3 RAM
• Card Support: EM Proximity, MIFARE Classic®, DesFire EV1 & EV2, HID iClass, and more.
• Resolution: 320 x 480 Pixel

Installation and Accessories

• Wall Mount: Yes (Plastic Back Cover with screws)
• Flush Mount: Yes (Metal Bracket with screws)
• Power Adapter: 12V DC @ 2A (CE, FCC, UL, BIS certified)

Why Choose Cosec Argo Cax?

• Multi-Credential Flexibility: Supports various authentication methods to suit your access control needs.
• Enhanced Performance: With a large user capacity and fast data handling, this system meets the demands of both small and large businesses.
• Scalable Solution: Ideal for growing organizations, it can handle large databases and provide seamless user authentication.
• Durability: Built to withstand harsh conditions, ensuring long-term, reliable operation.
• Easy Installation: Designed for flexibility in installation, whether wall mount or flush mount.
