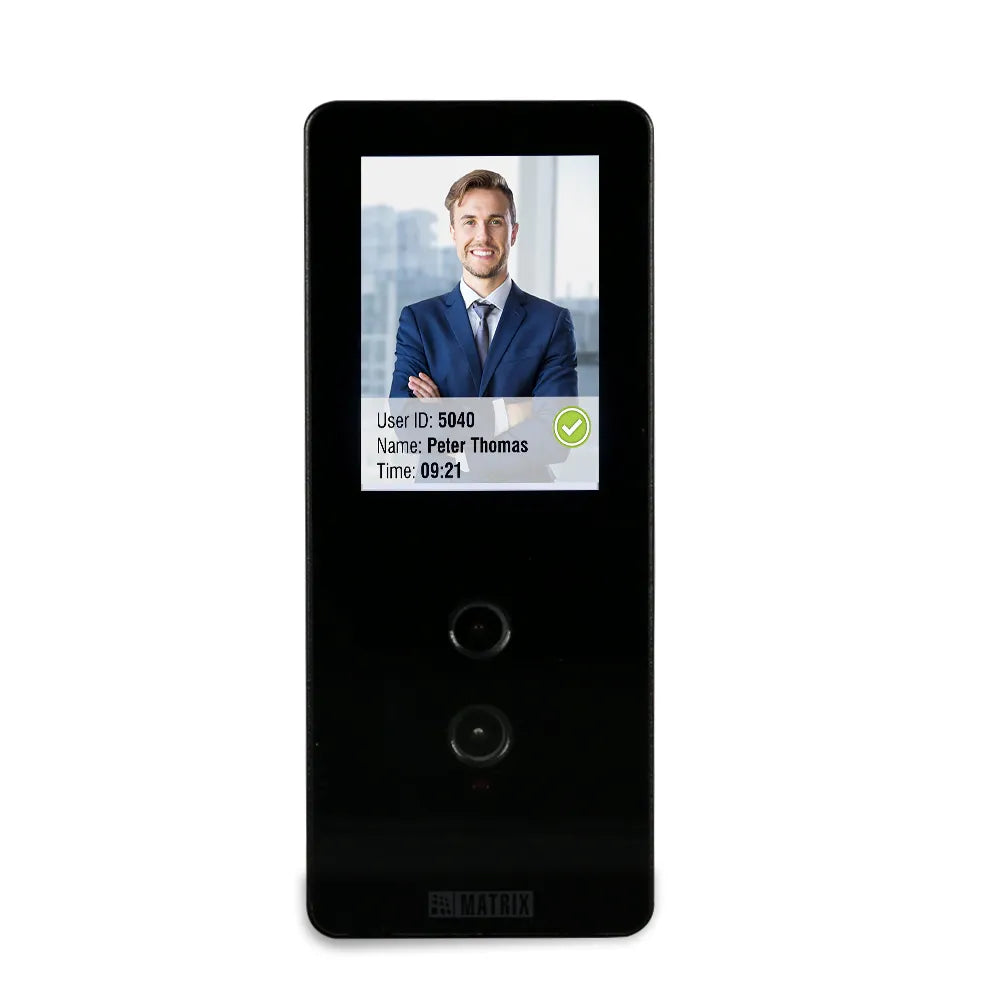

Matrix COSEC ARGO FACEI Face Recognition Door Controller – HID iClass Card, Wi-Fi, PoE, IP65
Matrix COSEC ARGO FACEI Face Recognition Door Controller – HID iClass Card, Wi-Fi, PoE, IP65
The Matrix COSEC ARGO FACEI is a face recognition door controller for time attendance and access control, combining face, HID iClass card, PIN and Bluetooth mobile credentials in an IP65-rated housing.
Key specifications
| Credentials | Face, Bluetooth (BLE) mobile, PIN, RF card |
| User capacity | 50,000 |
| Card type | HID iClass |
| Face templates | 2,00,000 (up to 30 per user) |
| Event logs | 5,00,000 |
| Face speed | 1:2,00,000 identification under 1 s; 1:1 under 0.5 s |
| Display | 3.5" IPS touchscreen, 480 x 320, Gorilla Glass 3 |
| Cameras | 2 MP RGB + 2 MP IR, Sony IMX307 STARVIS |
| Network | Ethernet 10/100, PoE (802.3af), Wi-Fi 802.11 b/g/n, BLE 4.2, micro USB; 4G via USB modem |
| Door interface | Dry-contact relay 30 V DC @ 2 A, exit switch, Wiegand in/out, RS-232 |
| Protection | IP65, IK06, tamper detection |
| Operating temperature | 0 to 50 °C |
| Dimensions | 186 x 74 x 50 mm; 650 g |
Who should purchase it?
Offices, factories, warehouses and campuses that want touchless face attendance with single-door access control, including semi-outdoor entrances, managed centrally in COSEC.
How many users can it support?
Up to 50,000 users, 2,00,000 face templates (up to 30 per user) and 5,00,000 event logs.
Which biometric methods does it support?

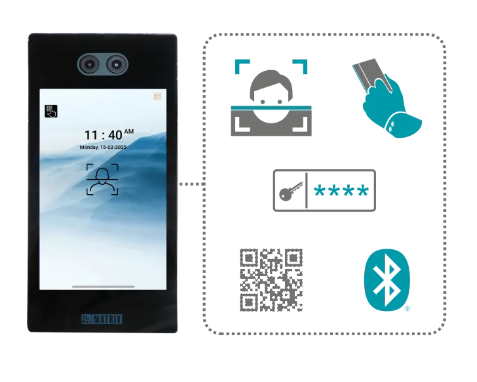

Deep-learning face recognition with fake face detection (1:2,00,000 in under 1 second), plus HID iClass card, PIN and Bluetooth (BLE) mobile credential.
Does it support TCP/IP, USB, Wi-Fi or cloud connectivity?
Ethernet 10/100 Mbps, PoE (IEEE 802.3af), Wi-Fi 802.11 b/g/n, Bluetooth BLE 4.2 (8 m) and micro USB; 3G/4G/LTE through an additional USB modem.
Does it support an attendance application?
Yes. Employees can use their smartphone as a Bluetooth (BLE) mobile credential at the device, and attendance records flow to COSEC CENTRA or COSEC VYOM for reports.
Which software is compatible?
Matrix COSEC CENTRA (server-based, on-premise) or COSEC VYOM (cloud-based), with the Matrix API available for third-party integration. AmpleTrails can integrate the attendance data with your payroll or HRMS.
Does it support access control?
Yes. It works as a door controller with a dry-contact door lock relay (30 V DC @ 2 A), exit switch input, Wiegand in/out and RS-232 for Matrix or third-party external readers, plus tamper detection.
What are the installation requirements?
Wall mount (plastic back cover) or flush mount (metal bracket). Power by PoE or the included 12 V DC @ 2 A adapter. IP65/IK06 rated, operating range 0 to 50 °C. AmpleTrails installs and configures this device anywhere in India: mounting, network setup, software installation, employee enrolment and admin training. See installation services.
What is included in the box?
The box content list for this model is confirmed on your quotation – our team will share the current manufacturer details.
What is the warranty?
Supplied with the Matrix manufacturer warranty through AmpleTrails, an authorised Matrix partner. The exact warranty term is stated on your invoice, and our support team handles warranty claims for you.
What alternatives are available?
- Matrix COSEC ARGO FACE210I – newer generation with HID Prox, iClass and Mifare plus QR code
- Matrix COSEC ARGO FACEM – Mifare/DESFire card version
- Browse all biometric attendance machines or the full Matrix attendance machines.
Buy from an authorised Matrix partner
AmpleTrails is an authorised Matrix partner with PAN India installation and support. Call +91 90347 57673 or WhatsApp us for a quotation including installation.
Specifications: Matrix COSEC ARGO FACEI official product page; Matrix COSEC ARGO FACEM technical specifications. Specifications may change with manufacturer revisions; our team confirms the current version on your quotation.
