Cosec Argo Fox Ultra-Fast Finger and RFID Card-Based Biometric Door Controller

Cosec Argo Fox Ultra-Fast Finger and RFID Card-Based Biometric Door Controller

Enhance your security and time-attendance management with the Cosec Argo Fox biometric door controller. This advanced device offers multi-credential support including fingerprint, BLE, RFID cards, and PIN, ensuring seamless and secure access. Ideal for both access control and time-attendance applications, the Cosec Argo Fox supports up to 50,000 users and can store up to 500,000 event logs.

With advanced Suprema Optical Sensor technology, the Cosec Argo Fox guarantees rapid and accurate fingerprint recognition, while its robust design (IP65 and IK07 certified) ensures reliability in both indoor and outdoor environments. Featuring versatile connectivity options like Wi-Fi, PoE, Ethernet, BLE, USB, and 3G/4G/LTE, this device is an excellent choice for organizations of all sizes.

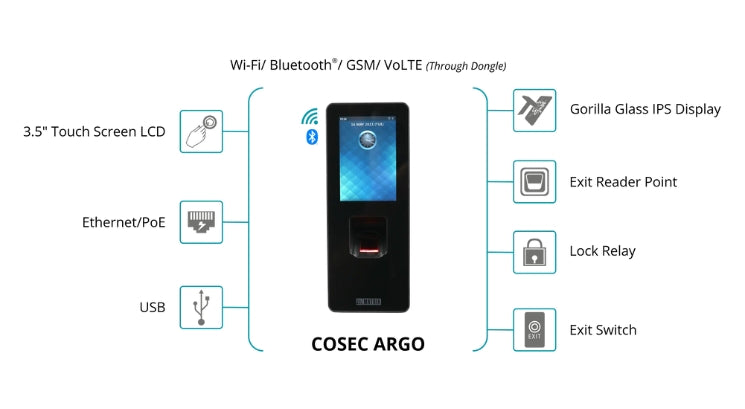

Interface Diagram

Features

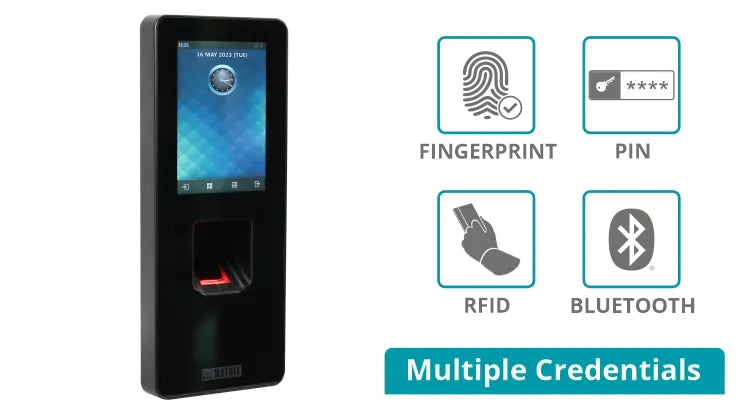

• Multi-Credential Support: Offers Fingerprint, BLE, RFID Cards, and PIN authentication for versatile and secure access.
• Massive Storage Capacity: Can handle 50,000 users, 25,000 fingerprints (1:N mode), and 100,000 fingerprints (1:1 mode).
• High-Quality Suprema Optical Sensor: Ensures fast, accurate, and reliable recognition with a resolution of 500 dpi.

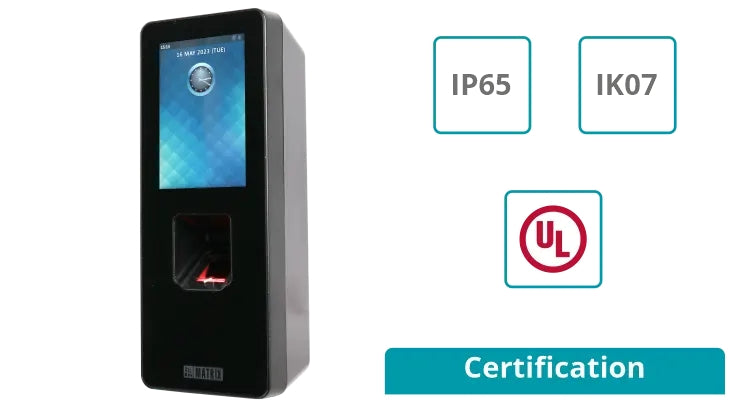

• Durable and Weather-Resistant: With IP65 ingress protection and IK07 vandal resistance, suitable for various environments.
• Advanced Connectivity: Includes Wi-Fi, PoE, Ethernet, USB, and mobile broadband options for easy integration.
• User-Friendly Display: Equipped with a 3.5″ IPS touchscreen featuring Gorilla Glass for durability and clarity.
• Flexible Installation: Can be mounted wall or flush with built-in tamper detection for enhanced security.

Technical Specifications

General Specifications

• Maximum Users: 50,000
• Maximum Fingerprint Templates:
  • 25,000 (1:N mode)
  • 100,000 (1:1 mode)
• Event Logs Capacity: 500,000
• Ingress Protection: IP65
• Vandal Resistance: IK07

Hardware

• Display: 3.5″ IPS capacitive touchscreen with Gorilla Glass
• Fingerprint Sensor: Suprema Optical Sensor, 500 dpi
• Processor: 800 MHz ARM Cortex A8
• Memory: 512 MB Flash + 512 MB DDR3 RAM

Connectivity

• Wi-Fi: Yes (802.11 b/g/n)
• PoE: IEEE 802.3 af
• Ethernet: 10/100 Mbps
• Bluetooth®: Built-in BLE with 8m range
• USB: Micro USB-Type B (data transfer and 2G/3G dongle support)

Environmental Conditions

• Operating Temperature: 0°C to +50°C (32°F to 122°F)
• Humidity: 5% to 95% RH (non-condensing)

Security Features

• Tamper Detection: Yes
• Door Lock Relay: 30V DC @ 2A
• Thermal Sensor: Built-in for overheating detection

Why Choose Cosec Argo Fox?

• Enhanced Security: Multi-credential authentication with encryption ensures a high level of security for your premises.
• Reliable in Harsh Conditions: Built with IP65 and IK07 ratings, making it durable for both indoor and outdoor usage.
• Flexible Connectivity: Offers multiple connectivity options for easy system integration and remote access.
• High-Performance and Storage: Supports large user databases, extensive event logs, and offers quick authentication.
• Scalable Solution: Ideal for organizations with high user volumes and demanding security needs.
