Matrix Comsec

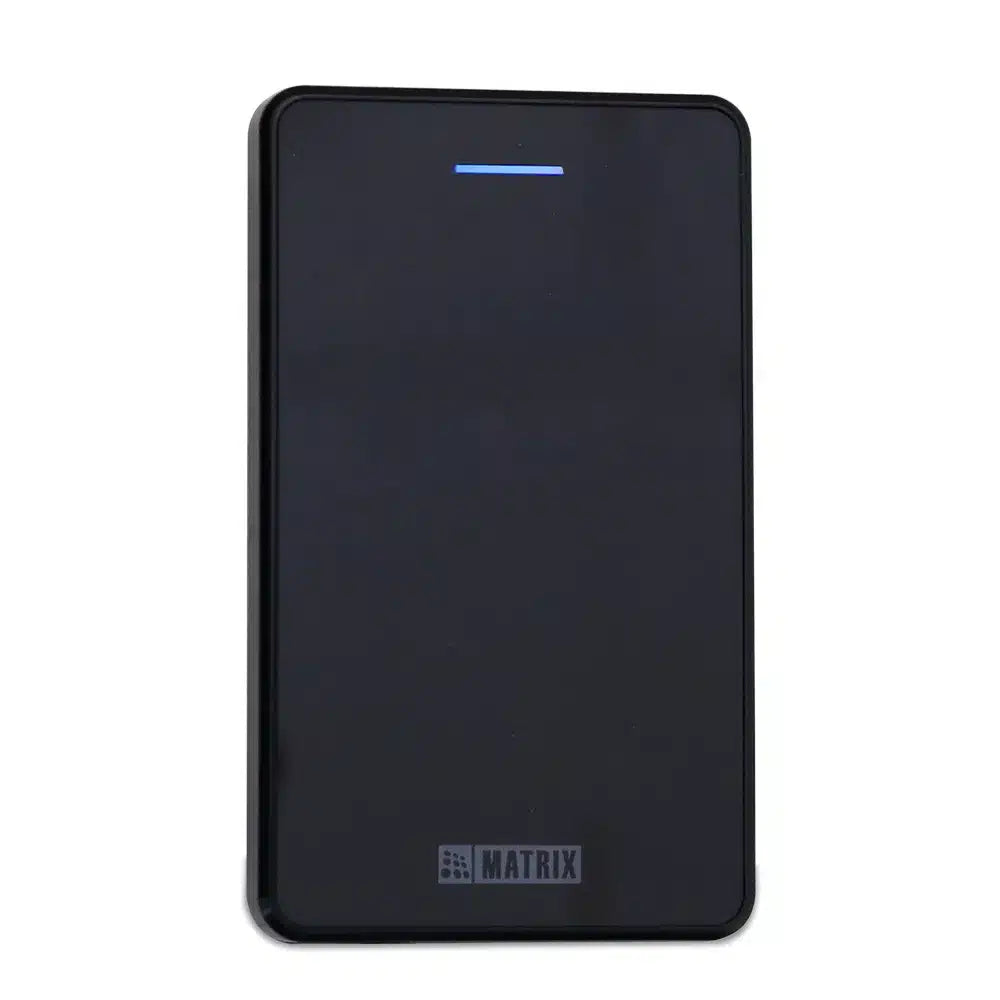

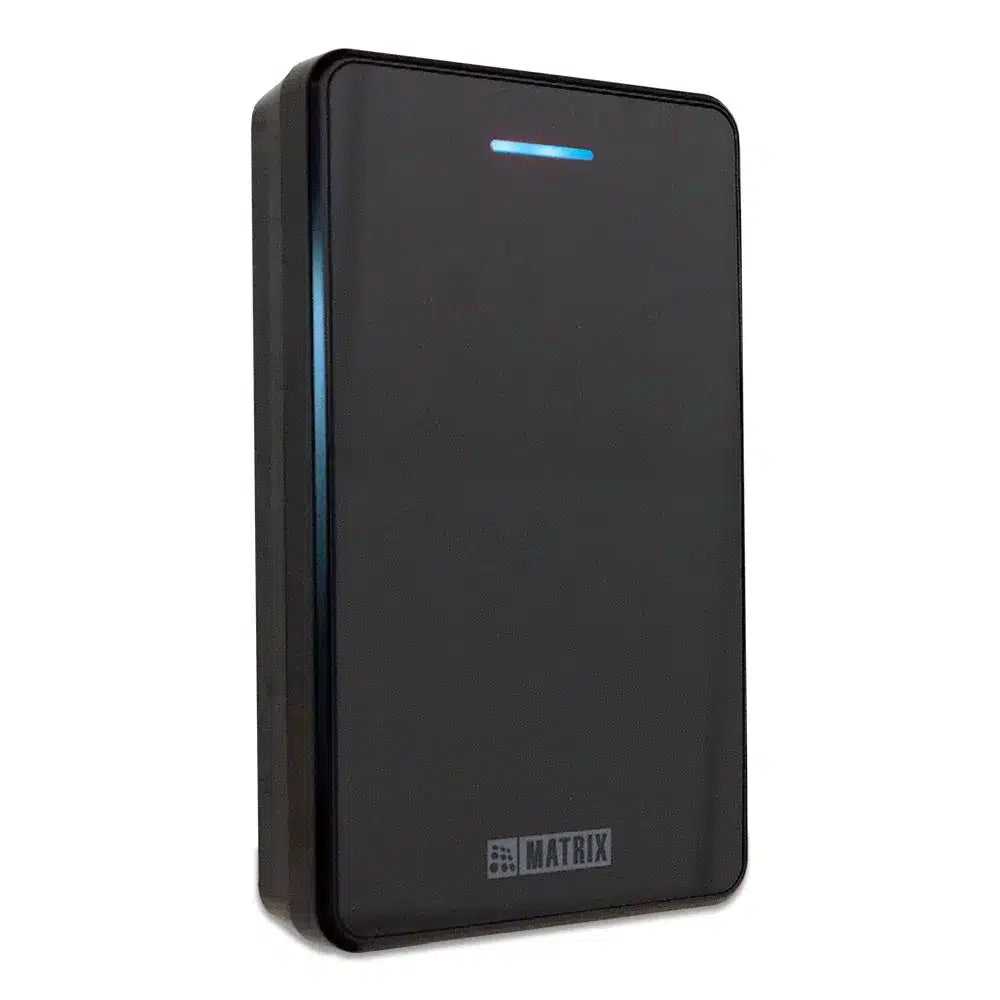

Matrix COSEC ATOM RD100E Door Reader for Access Control

Rs. 5,544.00

~~Rs. 6,098.40~~ Rs. 5,544.00

Sale Sold out

Matrix COSEC ATOM RD100E

RFID Access Control & Time Attendance Reader with Mobile + Card Authentication

Product: COSEC ATOM RD100E

Brand: Matrix Comsec

Type: RFID Access Control & Attendance Reader

Installation: Wall Mounted

Color: Black

Multi-Credential Access

Supports RFID cards and mobile-based authentication.

Compact Design

Sleek and space-saving wall-mounted form factor.

Advanced Connectivity

Supports RS232 and Wiegand interface for integration.

Secure Operation

Built-in tamper detection and LED status indicators.

Product Overview

COSEC ATOM RD100E is a compact RFID-based access control and time attendance reader designed for modern enterprises requiring secure, flexible, and scalable authentication.

It supports multi-credential authentication including RFID cards and mobile credentials, enabling organizations to improve security while simplifying user access.

With built-in Bluetooth support and third-party controller compatibility, the RD100E is ideal for both standalone and integrated access control systems.

Key Features

RFID + Mobile authentication support
Built-in Bluetooth connectivity
RS232 and Wiegand interface support
Tri-color LED status indication
Built-in buzzer alert system

Tamper detection for enhanced security
Compact and sleek design
Wall-mounted installation
Multi-factor credential support
COSEC ATOM series compatibility

Product Description

The COSEC ATOM RD100E is designed for organizations requiring a modern and flexible access control system. It supports RFID cards along with mobile authentication, providing a convenient and secure user experience.

Its compact design makes it suitable for installations in offices, industrial sites, and institutional environments. The device ensures reliable performance with tamper detection and real-time status indicators.

Technical Specifications

Parameter	Details
Product Name	Matrix COSEC ATOM RD100E
Brand	Matrix Comsec
Type	RFID Access Control & Time Attendance System
Authentication	RFID Card + Mobile Credential
Communication	Built-in Bluetooth
Interfaces	RS232, Wiegand
Reader Type	Proximity RFID Reader
Material	Plastic Body
Color	Black
Operating Temperature	0°C to +55°C
Installation Type	Wall Mounted
Dimensions	60 mm (W) × 101 mm (H) × 19 mm (D)
Warranty	1 Year

System Requirements

Controller / Software Requirements

Processor	Intel Core i3 / i5 or Higher
RAM	4 GB Minimum (8 GB Recommended)
Storage	50 GB SSD or Higher
OS	Windows / COSEC Supported OS
Database	SQL / Supported COSEC Database
Network	LAN / TCP-IP Connectivity
