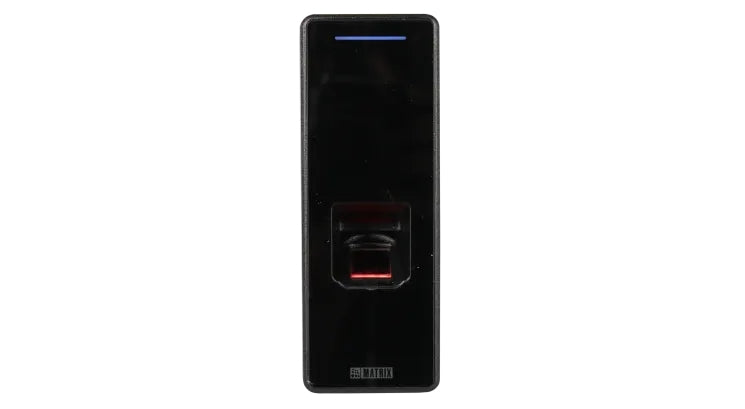

Cosec Atom RD200 Biometric Access Reader Fingerprint RFID and BLE Support

Cosec Atom RD200 Biometric Access Reader – Fingerprint, RFID, and BLE Support

The Cosec Atom RD200 elevates security standards with its multi-factor credential support, including fingerprint, Bluetooth® (BLE), and RFID cards. Featuring optical fingerprint recognition and Gorilla Glass 3, this compact and durable reader is ideal for organizations prioritizing seamless integration and robust security.

Reliable Performance and Versatile Compatibility

The RD200 supports third-party applications through a Wiegand interface, making it an excellent choice for flexible deployments. Equipped with a tamper detection system, buzzer alert, and IP65-rated body, it ensures reliable performance even in challenging environments.

Architecture Diagram

Features

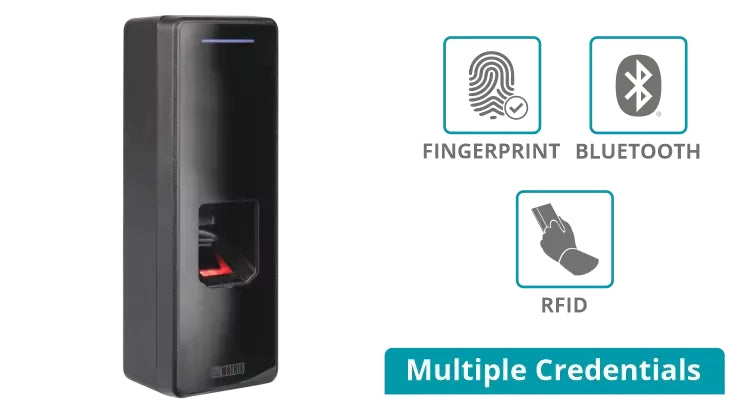

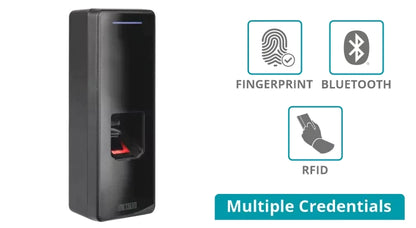

• Multi-Credential Support: Fingerprint, BLE, and RFID Card
• Fingerprint Sensor: Optical sensor with 500 DPI resolution and a scratch-free surface
• RF Options:
  • EM Proximity Card
  • MIFARE Classic®, DESFire EV1/EV2, and NFC Tag
  • HID i-Class, MIFARE, Desfire, and Combo Cards

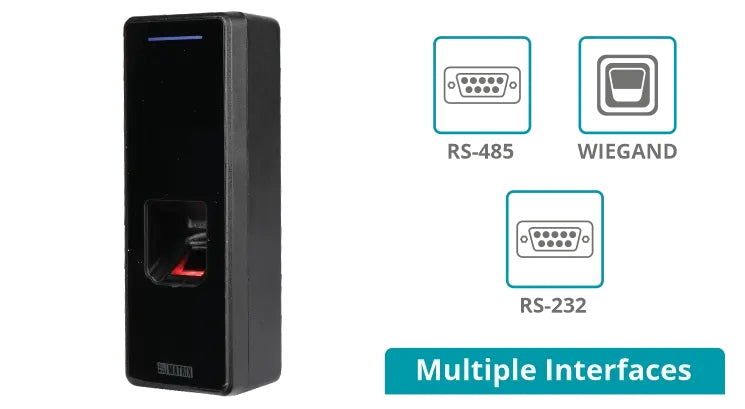

• Communication: Built-in Bluetooth®, WiFi, RS-232, RS-485, and Wiegand compatibility

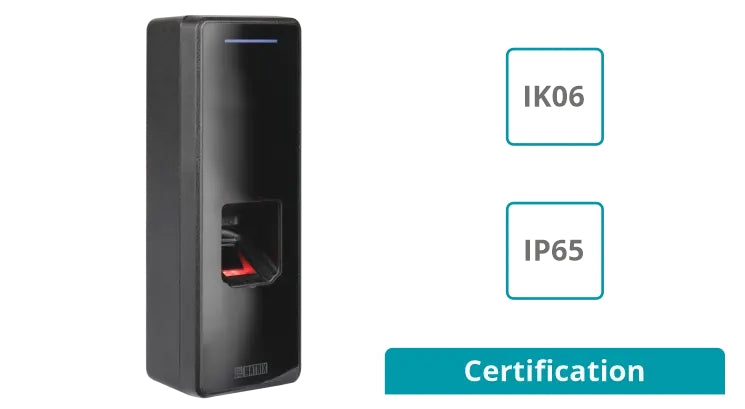

• Rugged Design: IP65-rated ingress protection and IK06 vandal-proof certification
• Advanced Alerts: Integrated buzzer system with tamper detection

Technical Specifications:

• Credential Support: Fingerprint, BLE, and RFID Card
• RF Options:
  • EM Proximity Card
  • MIFARE Classic®, DESFire EV1/EV2, NFC Tag
  • HID i-Class, MIFARE, Desfire, and Combo Cards

Capacity:

• User Profiles and Event Logs: Depend on the master device

Communication:

• Bluetooth®: Built-in
• WiFi: 802.11 b/g/n
• RS-232: Compatible with COSEC ARGO, VEGA, PATH V2
• RS-485: Compatible with ARC DC200P
• Wiegand: Supported

Hardware:

• Dimensions: 153mm x 56mm x 37mm
• Weight: 0.320 kg (0.70 lbs)
• Display Protection: Gorilla Glass 3
• Processor: AM3352
• Memory: 256 MB RAM and 256 MB Flash
• Tamper Detection: Yes
• Ingress Protection: IP65
• Vandal Proof: IK06

Fingerprint Sensor:

• Type: Optical
• Name: SFM6030-OC6
• Resolution: 500 DPI
• Surface: Scratch-free
• Sensing Area: 16.0mm x 18.0mm

Environmental:

• Operating Temperature: -20°C to +55°C (-4°F to 131°F)
• Humidity: 5% to 95% RH (non-condensing)

Installation:

• Mounting: Wall mount and flush mount supported

Why Choose Cosec Atom RD200?

The Cosec Atom RD200 combines cutting-edge technology with durable design, making it a perfect choice for organizations demanding reliable and secure access control. With multi-factor authentication and compatibility with third-party systems, it is designed to adapt to diverse security needs.
