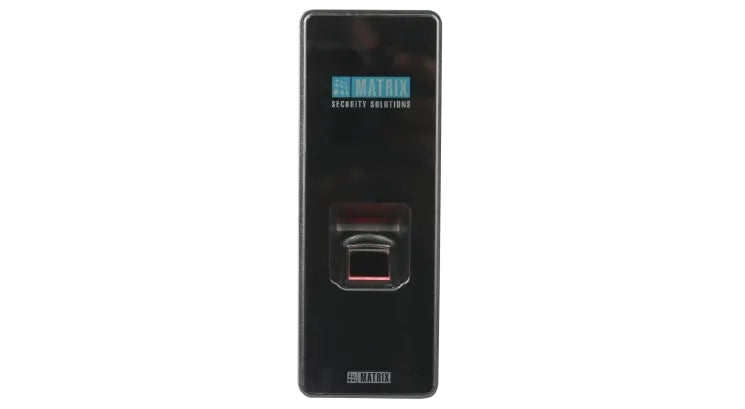

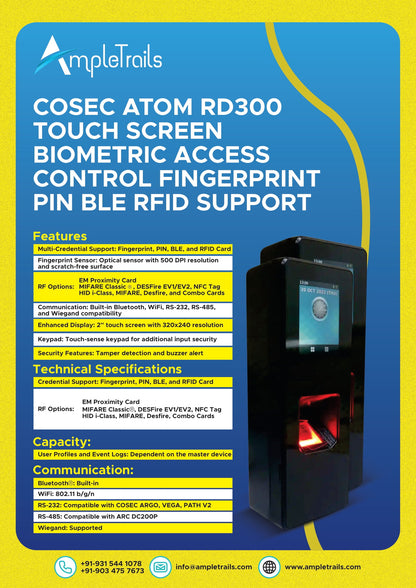

Cosec Atom RD300 Touch Screen Biometric Access Control Fingerprint PIN BLE RFID Support

Cosec Atom RD300 Touch Screen Biometric Access Control – Fingerprint, PIN, BLE, RFID Support

The Cosec Atom RD300 combines cutting-edge biometric technology with a 2-inch touchscreen display for enhanced user interaction. Offering multi-credential support (Fingerprint, PIN, BLE, and RFID Cards), this device ensures robust and secure access control for organizations of all sizes.

ATOM RD300SFE
ATOM RD300SFM

Versatile and Reliable Performance

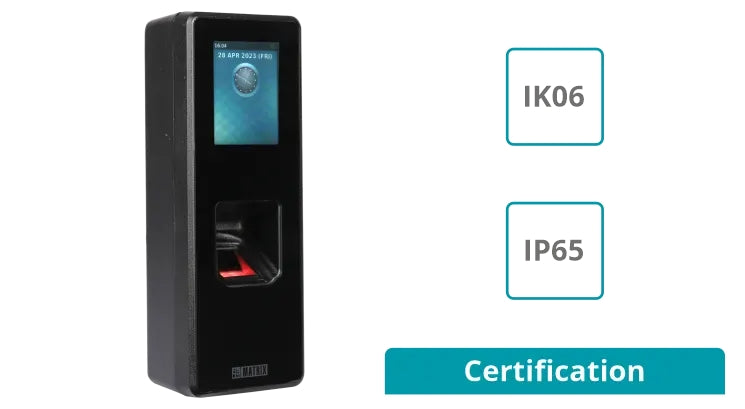

With its multi-factor authentication capabilities, the RD300 adapts to varied security needs. Its IP65-rated design ensures it performs reliably in tough environments, while its vandal-proof (IK06) build provides durability against tampering.

Architecture Diagram

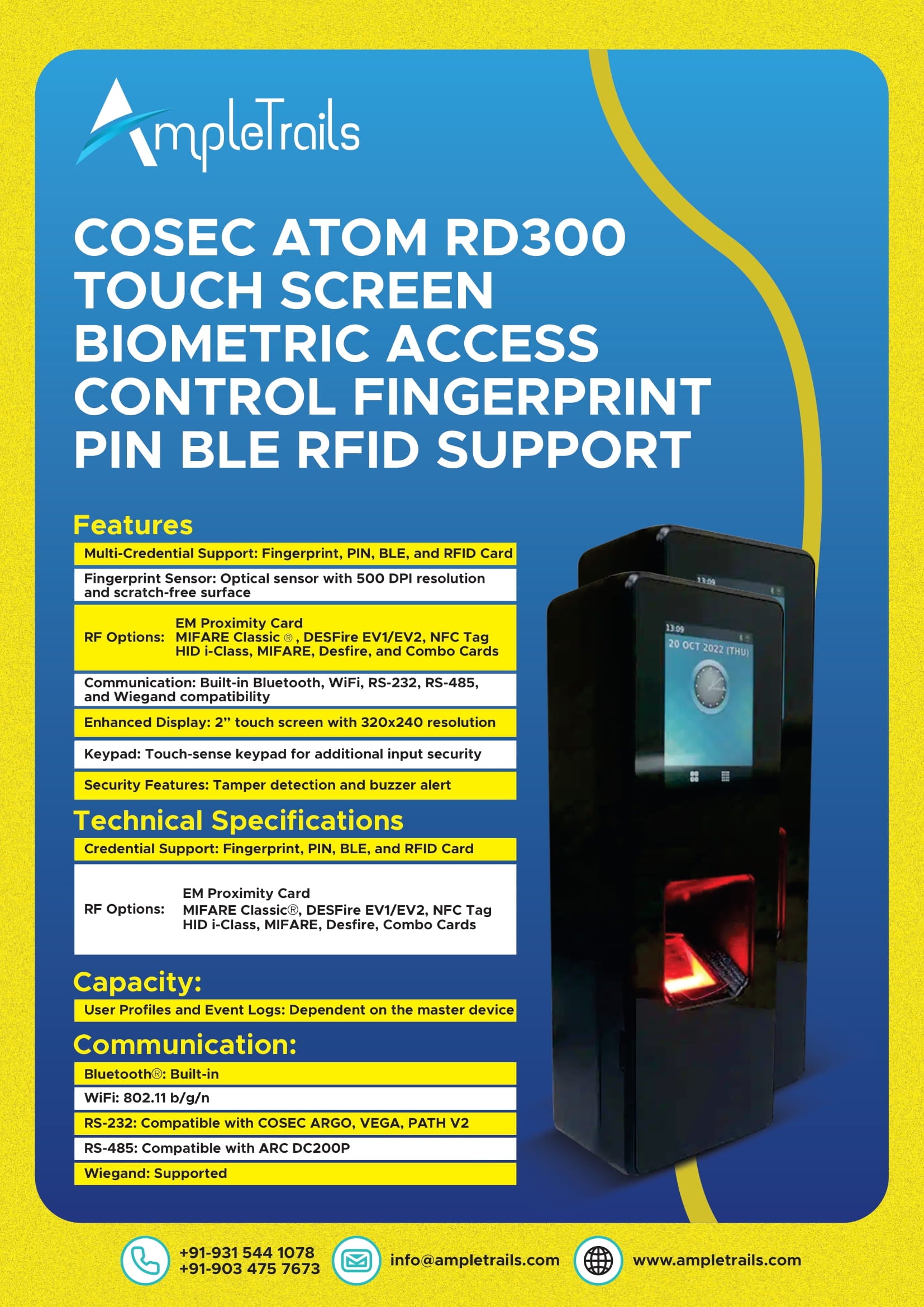

Features

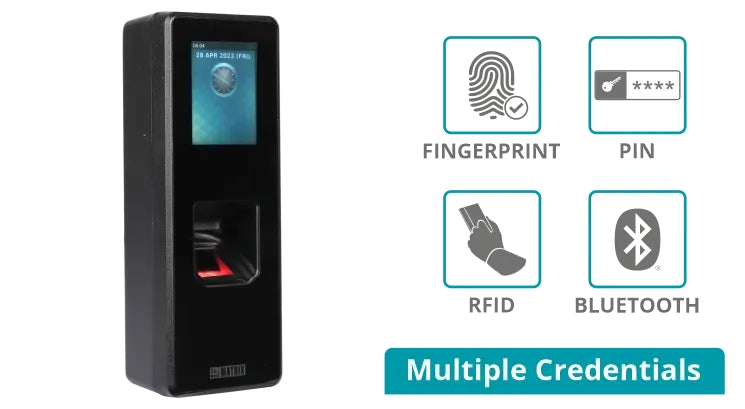

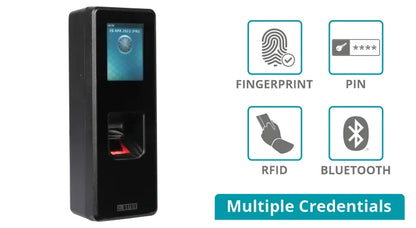

• Multi-Credential Support: Fingerprint, PIN, BLE, and RFID Card
• Fingerprint Sensor: Optical sensor with 500 DPI resolution and scratch-free surface
• RF Options:
  • EM Proximity Card
  • MIFARE Classic®, DESFire EV1/EV2, NFC Tag
  • HID i-Class, MIFARE, Desfire, and Combo Cards

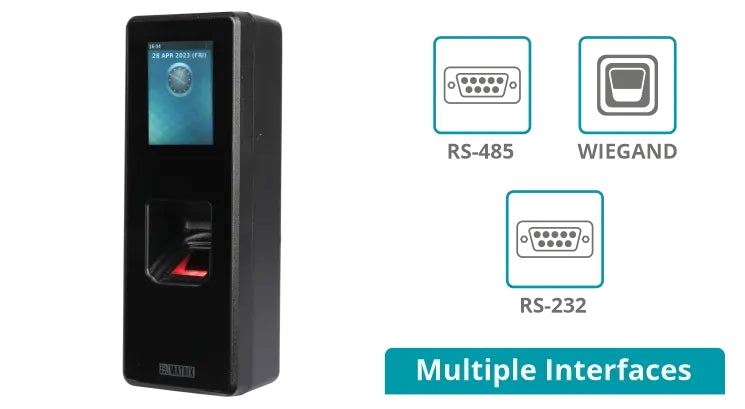

• Communication: Built-in Bluetooth®, WiFi, RS-232, RS-485, and Wiegand compatibility
• Enhanced Display: 2” touch screen with 320x240 resolution
• Keypad: Touch-sense keypad for additional input security
• Security Features: Tamper detection and buzzer alert

Technical Specifications

General:

• Credential Support: Fingerprint, PIN, BLE, and RFID Card
• RF Options:
  • EM Proximity Card
  • MIFARE Classic®, DESFire EV1/EV2, NFC Tag
  • HID i-Class, MIFARE, Desfire, Combo Cards

Capacity:

• User Profiles and Event Logs: Dependent on the master device

Communication:

• Bluetooth®: Built-in
• WiFi: 802.11 b/g/n
• RS-232: Compatible with COSEC ARGO, VEGA, PATH V2
• RS-485: Compatible with ARC DC200P
• Wiegand: Supported

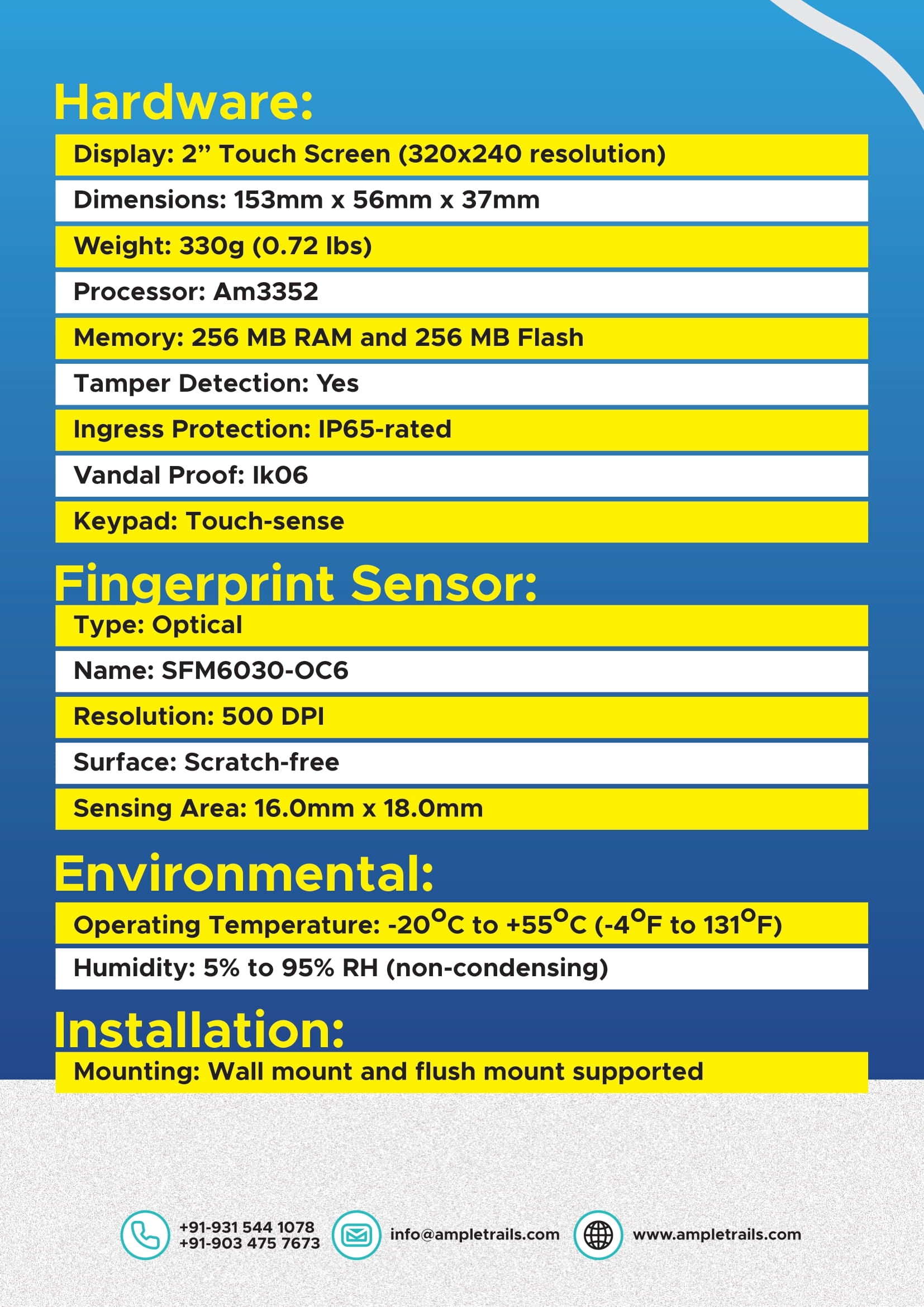

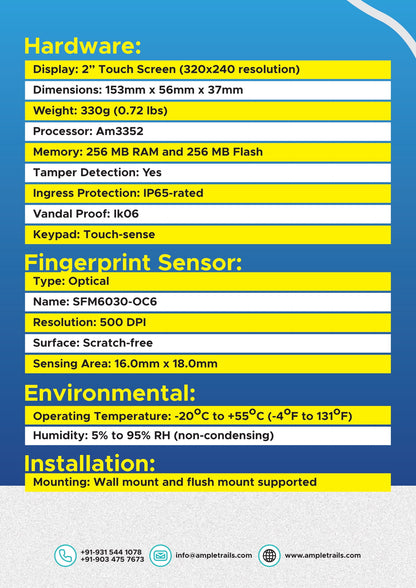

Hardware:

• Display: 2” Touch Screen (320x240 resolution)
• Dimensions: 153mm x 56mm x 37mm
• Weight: 330g (0.72 lbs)
• Processor: AM3352
• Memory: 256 MB RAM and 256 MB Flash
• Tamper Detection: Yes
• Ingress Protection: IP65-rated
• Vandal Proof: IK06
• Keypad: Touch-sense

Fingerprint Sensor:

• Type: Optical
• Name: SFM6030-OC6
• Resolution: 500 DPI
• Surface: Scratch-free
• Sensing Area: 16.0mm x 18.0mm

Environmental:

• Operating Temperature: -20°C to +55°C (-4°F to 131°F)
• Humidity: 5% to 95% RH (non-condensing)

Installation:

• Mounting: Wall mount and flush mount supported

Why Choose Cosec Atom RD300?

The Cosec Atom RD300 stands out with its touchscreen interface, enabling easy interaction, and multi-factor authentication for advanced security. Perfect for businesses looking for reliable and versatile access control, this reader supports various credentials while offering flexibility with third-party system integration via the Wiegand interface.
