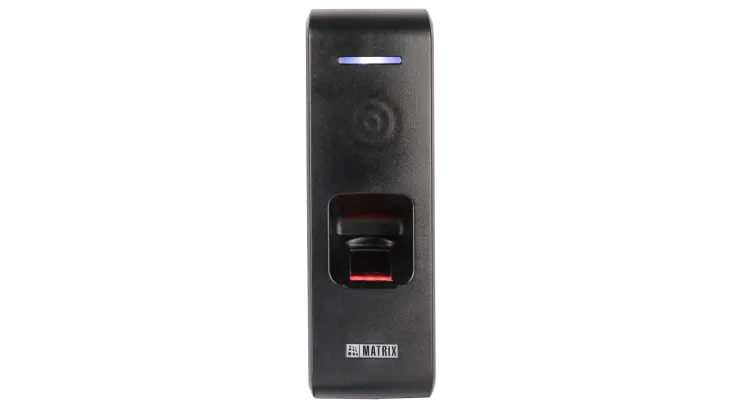

COSEC PATH DCFI

COSEC PATH DCFI

Regular price Rs. 0.00
Regular price Sale price Rs. 0.00
Sale Sold out

Features of COSEC PATH DCFI

COSEC PATH series - biometric door controllers, are the brain of the system, which allows only authorized users to enter the premises and register their entry and exit time. Matrix COSEC PATH is a series of compact door controllers engineered to endure extreme weather conditions. Having a dual advantage of advanced security, these controllers support credentials such as fingerprint and RFID cards. With its versatile interfaces and PoE connectivity, these compact yet efficient door controllers are best suited for indoor and outdoor applications. Its advanced features like Wi-Fi & Bluetooth connectivity, PoE, IP65, and multi-credentials support fingerprint and RFID card options, it fulfills the requirements of many organizations. With a storage capacity of 50,000 events and 9,600 fingerprints, it assures reliable and long term consistent performance. Having IP65 design makes it a foolproof solution for Time-Attendance, Access Control, Cafeteria Management and other applications.

COSEC VARIANTS

  • COSEC PATH DCFx
  • COSEC PATH DCCx
Cosec Path Series   COSEC_Technical_Specification_COSEC_PATH_DCFI_V2 [su_button url="https://ampletrails.com/wp-content/uploads/2020/11/COSEC_Technical_Specification_COSEC_PATH_DCFI_V2.pdf" target="blank" style="soft" center="yes" icon="icon: envelope-o" text_shadow="0px 0px 0px #000000" desc="Download Datasheet "] COSEC PATH DCFI[/su_button]   [su_table]
GENERAL
Credential Support BLE, Fingerprint and RFID Card
IP Rating Yes (IP65 Design)
RF Option Smart Card (HID iCLass 13.56MHz)
CAPACITY
Max. Users 50,000
Max. Template Storage SFM 6030: 25,000 (1:N) And 100,000 ( 1:1)
Event Buffer 5,00,000
COMMUNICATION
Wi-Fi Bluetooth Yes (IEEE 802.11 b/g/n) Yes (BLE 4.0)
Ethernet Yes
RS-232 Yes
RS-485 Yes
Wiegand Wiegand IN/OUT Available
USB No
INTERFACE
Exit Switch Yes
Door Status Sense Yes (2 State)
Door Lock Relay Yes
Reader Power Output Internal 12 VDC @ 0.250 Amp
Aux-In NO
Aux-Out NO
Reader Interface Types RS-232 & Wiegand IN/OUT
  HARDWARE
CPU Cortex A8 800 MHz
Flash memory 512 MB
RAM memory 512 MB
LED Single Tri-Color LED
Buzzer Yes
Operating Temperature 0°C to +50°C (32°F to 122°F)
Humidity 5% to 95% RH Non – Condensing
GENERAL
Credential Support Fingerprint and RFID Card
IP Rating Yes (IP65 Design)
RF Option Smart Card (HID iCLass 13.56MHz)
CAPACITY
Max. Users 10,000
Max. Template Storage 9,600
Event Buffer 50,000
Templates per User Up to10 (Singer Template per Finger Mode) Up to 5 (Dual Template per Finger Mode)
Cards per User Up to 2
COMMUNICATION
Ethernet Yes (10/100 Mbps)
RS-232 Yes
PoE Yes (IEEE 802.3af)
RS-485 Yes
Wiegand Wiegand IN/OUT Available
INTERFACE
Exit Switch Yes
Door Status Sense Programmable NO, NC, Supervised
Door Lock Relay 30V DC @ 1 A, Form C, SPDT Relay
Door Lock Power Internal 12V DC @ 0.5A or External
Reader Interface Types RS-232, RS-485 and Wiegand IN/OUT
HARDWARE
CPU 32 Bit Microcontroller
Memory 512 Kb Internal Memory + 2 MB External Flash+ 128 Kb SRAM
LED Single Tri- Color LED
Buzzer Yes
Operating Temperature 0°C to +45°C (32°F to 113°F)
Humidity 5% to 85% RH Non – Condensing
Tamper Detection Yes
Power 12V DC @ 2A
Power to Door Lock 12V DC @ 0.5A (For Adapter Supply Mode) 30V DC @1 A (For PoE Supply Mode
Dimensions (W x H x D) 50.5mm x 160mm x 44mm (1.98"x6.29"x1.73")
Battrey Backup Through COSEC PATH BBU or COSEC PSBB12V
Weight 0.27 Kgs (0.59 lbs.)
CERTIFICATES BIS (IS 13252), IP65, CE, FCC, IEC 60950-1, RoHS
SENSOR
Sensor Name Suprema Sensor
Sensor Technology Optical
Encryption 256-bit AES
Water-proof Yes
False Acceptance Ratio (FAR) 0.001%
False Rejection Ratio (FRR) 0.01%
Resolution (dpi) 500 dpi
Sensing Area 16.00mm x 19.00mm
Template Size 384 Bytes
Image Size (Pixel) 272mm x 320mm
[/su_table]

APPLICATIONS

  • Access Control
  • Time-Attendance
  • Contract Workers Management
  • Job Processing and Costing
TECHNICAL SPECIFICATIONS If you want to get more details please fill the form below. Our experts will contact you to give face attendance and various other solutions as per your requirements. Call us at 9315441078 or email us at info@ampletrails.com [wpforms id="25849"]
