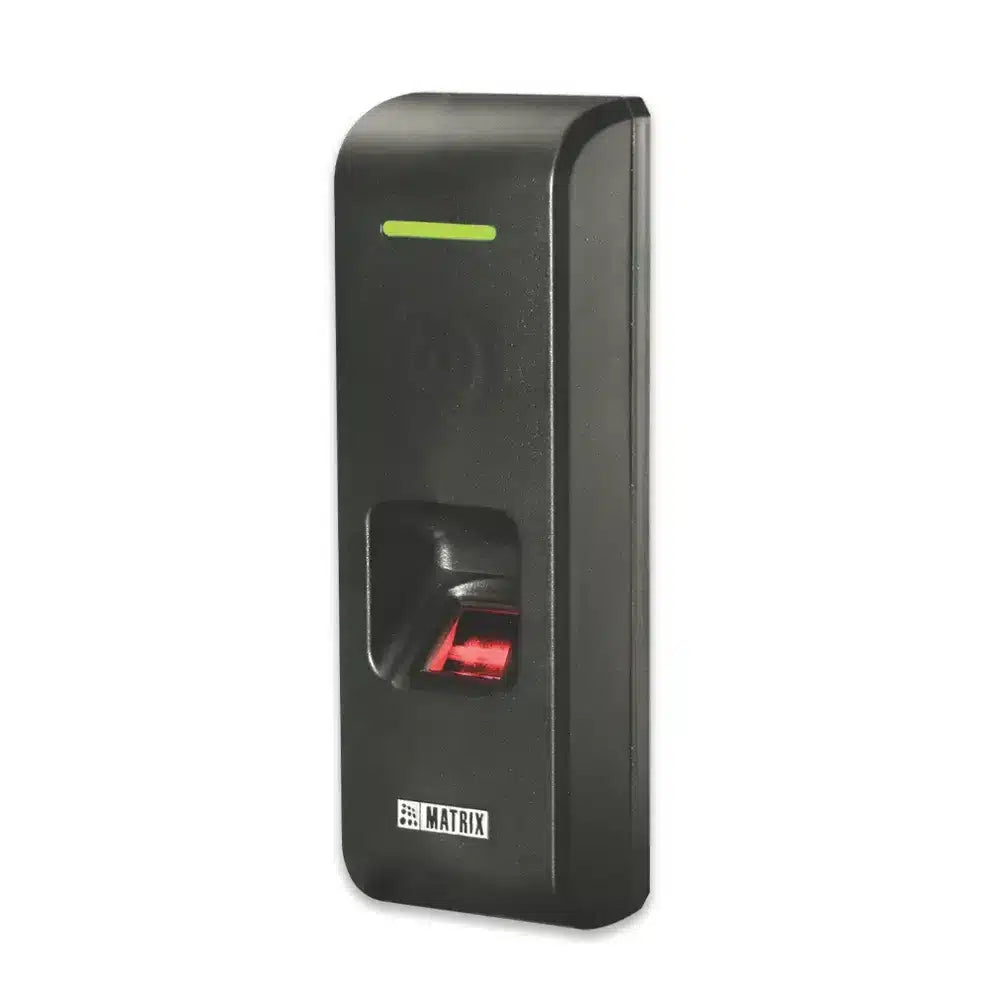

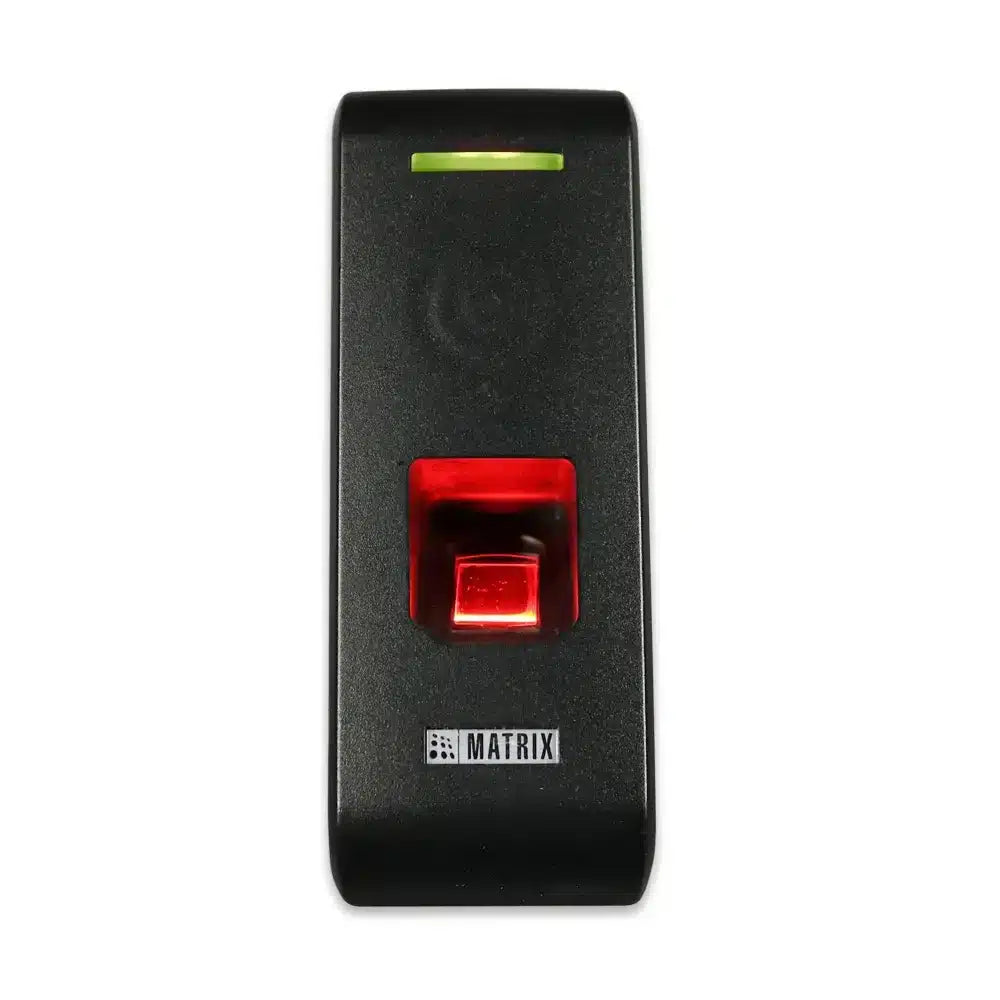

Matrix COSEC PATH DCFI Fingerprint Door Controller – HID iClass/SEOS, BLE, Wi-Fi, PoE

Matrix COSEC PATH DCFI Fingerprint Door Controller – HID iClass/SEOS, BLE, Wi-Fi, PoE

Rs. 28,314.00
Rs. 49,005.00 Rs. 28,314.00
Sale Sold out

The Matrix COSEC PATH DCFI is a compact fingerprint, HID iClass/multi-technology card and Bluetooth door controller for access control and time attendance, built for indoor and outdoor doors.

Key specifications

Credentials Fingerprint, RF card, BLE mobile
Card type HID iClass, HID Prox, HID SEOS, Mifare Classic, DESFire, EM Prox
User capacity 50,000
Fingerprint templates 25,000 (1:N), 1,00,000 (1:1)
Event buffer 5,00,000
Sensor Suprema SFM6030 optical, 500 dpi
Indicators Tri-colour LED, buzzer
Network Ethernet 10/100, PoE (802.3af), Wi-Fi, BLE, RS-232, RS-485, Wiegand in/out
Power 12 V DC @ 2 A or PoE
Protection IP65, tamper detection
Operating temperature 0 to +50 °C
Dimensions 50 x 159 x 42 mm; 0.375 kg

Who should purchase it?

Offices, server rooms, labs, plants and multi-site businesses that need a slim, IP65-rated fingerprint door controller for mullion-width frames, managed centrally in COSEC.

How many users can it support?

Up to 50,000 users, 25,000 fingerprint templates in 1:N mode (1,00,000 in 1:1 mode), up to 10 templates per user and 5,00,000 events.

Which biometric methods does it support?

Fingerprint (Suprema SFM6030 optical sensor, FAR 0.001%), HID iClass/multi-technology card and Bluetooth (BLE) mobile credential with configurable 1–8 m range.

Does it support TCP/IP, USB, Wi-Fi or cloud connectivity?

Ethernet 10/100 Mbps, PoE (IEEE 802.3af), Wi-Fi 802.11 b/g/n, Bluetooth BLE, RS-232, RS-485 and Wiegand in/out.

Does it support an attendance application?

Yes. Employees can use their smartphone as a Bluetooth (BLE) mobile credential at the device, and attendance records flow to COSEC CENTRA or COSEC VYOM for reports.

Which software is compatible?

Matrix COSEC CENTRA (server-based, on-premise) or COSEC VYOM (cloud-based), with the Matrix API available for third-party integration. AmpleTrails can integrate the attendance data with your payroll or HRMS. It also works in panel door mode with COSEC PANEL200P.

Does it support access control?

Yes. Door controller with door lock relay, 2-state door status sense, exit switch, Wiegand in/out, RS-232 and RS-485, plus tamper detection.

What are the installation requirements?

Slim wall mount on a door frame. Power by PoE or a 12 V DC @ 2 A adapter (purchased separately); optional COSEC PATH BBU or PSBB battery backup gives about 6 hours. IP65 rated, operating range 0 to +50 °C. AmpleTrails installs and configures this device anywhere in India: mounting, network setup, software installation, employee enrolment and admin training. See installation services.

What is included in the box?

The box content list for this model is confirmed on your quotation – our team will share the current manufacturer details.

What is the warranty?

Supplied with the Matrix manufacturer warranty through AmpleTrails, an authorised Matrix partner. The exact warranty term is stated on your invoice, and our support team handles warranty claims for you.

What alternatives are available?

Buy from an authorised Matrix partner

AmpleTrails is an authorised Matrix partner with PAN India installation and support. Call +91 90347 57673 or WhatsApp us for a quotation including installation.

Specifications: Matrix COSEC PATH official product page. Specifications may change with manufacturer revisions; our team confirms the current version on your quotation.
