Cosec Path DCFX Fingerprint Access Control & Time-Attendance Door Controller BLE & RFID Support

Cosec Path DCFX – Secure and Versatile Fingerprint Access Control & Time-Attendance Solution

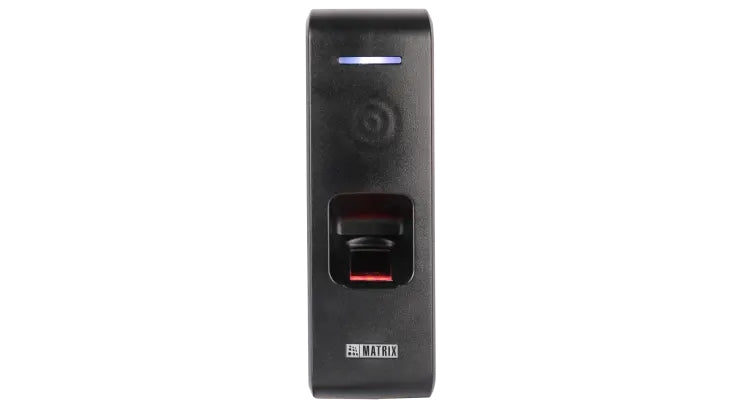

The Cosec Path DCFX is an advanced biometric access control and time-attendance door controller that supports multiple credentials including Bluetooth® (BLE), fingerprint, and RFID cards. Designed for high-security environments, this terminal ensures seamless integration into your system with its versatile communication options and massive storage capacity.

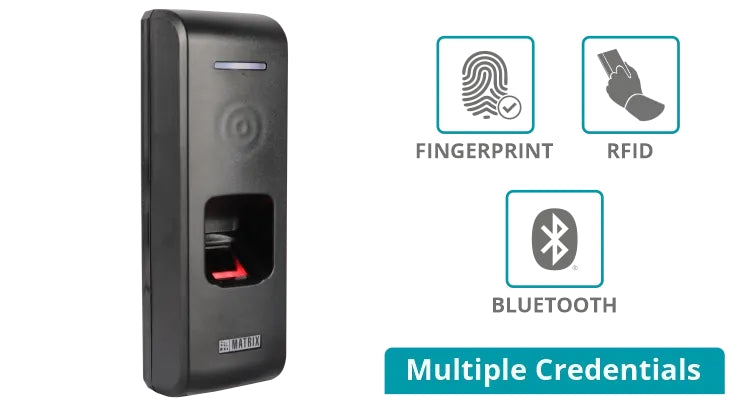

Multi-Credential Authentication for Enhanced Security The Cosec Path DCFX offers multiple credential options: fingerprint, RFID cards, and Bluetooth® (BLE), providing flexibility and enhanced security for access control and time-attendance applications.

Fast and Secure Identification With Suprema Optical Sensor and 256-bit AES encryption, the Cosec Path DCFX guarantees fast and highly secure access authentication with a low False Acceptance Ratio (FAR) of 0.001%.

Massive Storage and Event Logging With the ability to store up to 50,000 users and 500,000 event logs, this device ensures that large-scale operations can easily be managed and tracked. Additionally, it supports up to 25,000 templates in 1:N mode and up to 100,000 templates in 1:1 mode.

Multi-Connectivity Options for Seamless Integration The Cosec Path DCFX supports various connectivity options, including Wi-Fi, Ethernet, PoE, Bluetooth®, RS-232, and RS-485, providing flexibility and compatibility with various systems.

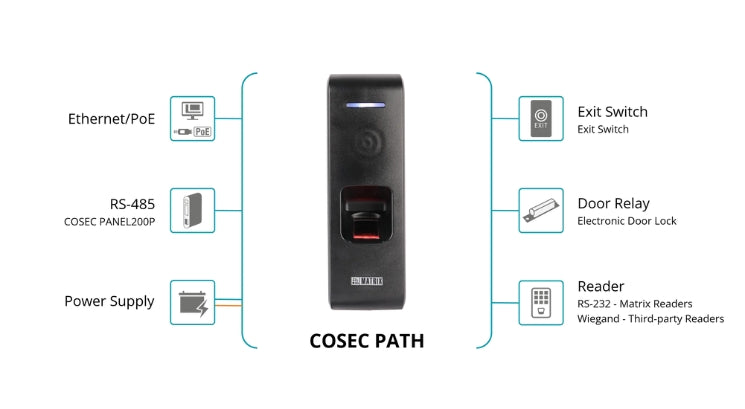

Interface Diagram

Features

• Multi-Credential Support: Fingerprint, BLE, and RFID cards (EM Proximity, MIFARE Classic®, DESFire EV1 & EV2, HID iClass)
• Display: LED display with configurable settings
• Sensor: Suprema Optical Sensor – SFM6030 (256-bit AES Encryption)
• Maximum Users: 50,000
• Maximum Template Storage: 25,000 in 1:N mode, 100,000 in 1:1 mode
• Event Buffer: 500,000 logs
• Power Supply: 12V DC @ 2A, Power to Lock 12V DC @ 0.5A
• Environmental Protection: IP65, Operating Temperature: 0°C to +50°C
• Connectivity Options: Wi-Fi, Bluetooth®, Ethernet, PoE, RS-232, RS-485, Wiegand
• Security Features: Tamper detection, 256-bit AES Encryption, Waterproof

Technical Specifications

General:

• Credential Support: Bluetooth® (BLE), Fingerprint, RFID Card (EM Prox, MIFARE, HID iClass)

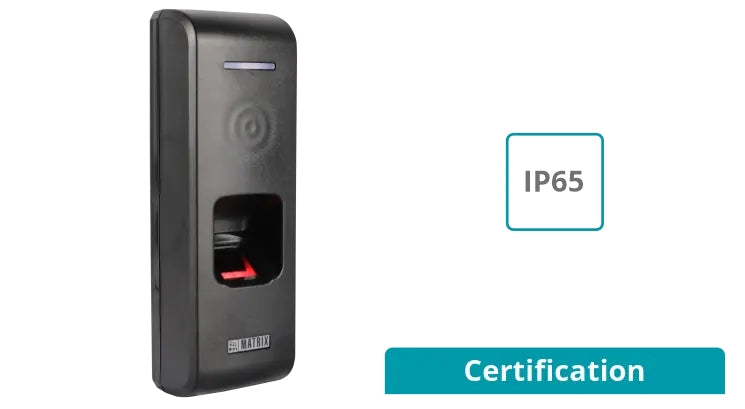

• Ingress Protection: IP65

Capacity:

• Max Users: 50,000
• Max Template Storage: 25,000 in 1:N Mode, 100,000 in 1:1 Mode
• Event Buffer: 500,000
• Templates per User: Up to 10 (Single Template per Finger Mode), Up to 5 (Dual Template per Finger Mode)

Communication:

• Wi-Fi: Yes
• Bluetooth®: Yes
• Ethernet: Yes (10/100 Mbps)
• PoE: Yes (IEEE 802.3 af)
• RS-232: Yes
• RS-485: Yes
• Wiegand: Yes (Selectable IN/OUT)

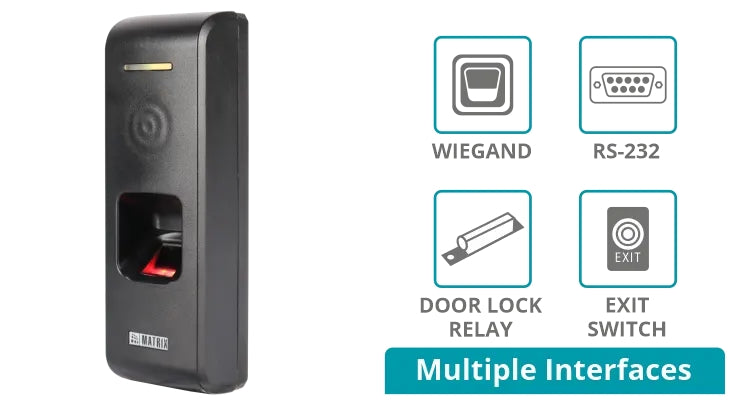

Interface:

• Exit Switch Port: Yes
• Door Status Sense: Yes (2-Stage)
• Door Lock Relay: Yes
• Door Lock Power: 12V DC @ 0.5A (from device), 30V DC @ 1A (from external source)
• Aux-Out: No

Hardware:

• CPU: 800 MHz ARM Cortex A8 Processor
• Memory: 512 MB Flash + 512 MB DDR3 RAM
• LED Indicator: Yes
• Buzzer: Yes
• Operating Temperature: 0°C to +50°C
• Weight: 0.375 kg (0.82 lbs)

Sensor:

• Sensor Name: Suprema Optical Sensor – SFM6030
• Sensor Technology: Optical Technology
• Encryption: 256-bit AES
• Waterproof: Yes
• FAR: 0.001%
• FRR: 0.010%

Installation:

• Wall Mount: Yes

Accessories:

• Power Adapter: 12V DC @ 2A
• Battery Backup: Yes (External – 6 hours on COSEC PATH BBU & COSEC PATH PSBB)

Why Choose Cosec Path DCFX?

The Cosec Path DCFX offers a robust, highly secure solution for access control and time-attendance management. With support for fingerprint, BLE, and RFID cards, and a variety of connectivity options, it meets the demands of large-scale businesses and government institutions. Its high storage capacity, fast identification speed, and AES encryption make it an ideal choice for environments requiring high security and efficiency.
