Cosec Path RDCX RFID Card-Based Access Control Reader Compact & IP65-Rated

Cosec Path RDCX RFID Card-Based Access Control Reader

The Cosec Path RDCX is a robust, card-based access control reader designed for secure, seamless, and reliable operation. With RFID credential support and multi-connectivity options, it is the ideal solution for modern access control systems. Its compact design and IP65 rating make it perfect for challenging environments.

Advanced RFID Technology for Access Control

Supporting a wide range of RFID credentials, including EM Proximity Cards, MIFARE Classic®, DESFire EV1 & EV2, and HID i-Class, the device ensures versatile compatibility with existing systems.

Durable and Compact Design

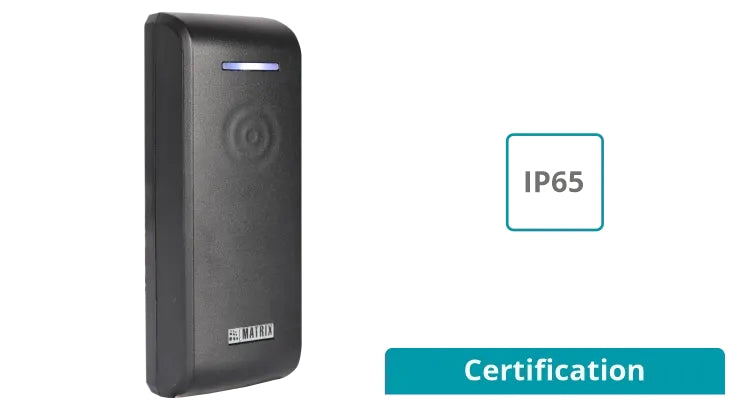

The IP65 ingress protection ensures excellent durability in harsh environments, while the compact size allows for easy vertical wall mounting.

Architecture Diagram

Features

• Credential Support: RFID cards including EM Proximity, MIFARE Classic®, DESFire EV1/EV2, HID i-Class

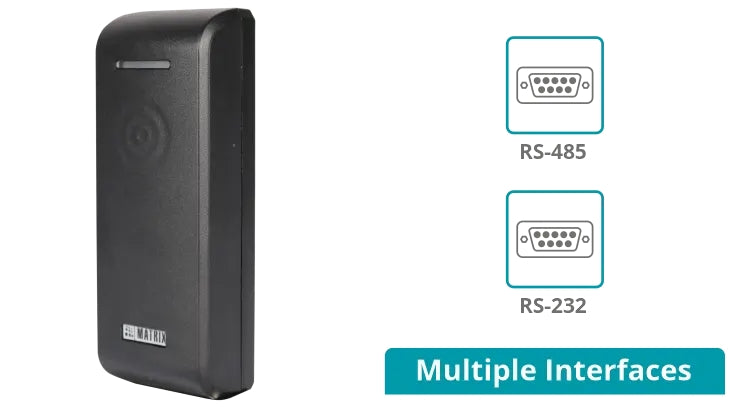

• Multi-Connectivity: RS-232 and RS-485 for seamless integration
• Durable Build: Compact and IP65-rated for challenging environments
• Audio-Visual Indicators: Tri-color LED and buzzer for user feedback
• Tamper Detection: Built-in for enhanced security

Technical Specifications

General:

• Credential Support: RFID Cards
• RF Options:
  • EM Proximity Card
  • MIFARE Classic®, DESFire EV1 & EV2, NFC Tag
  • HID i-Class, Mifare, Desfire, Combo Cards

Communication:

• RS-485: Yes
• RS-232: Yes

Hardware:

• Finger Sensor: Not Applicable
• Reset Switch: Yes
• Tamper Detection: Yes

Audio-Visual Indicators:

• LED: Tri-color
• Buzzer: Yes (61 dBA @ 30cm)

Environmental:

• Operating Temperature: 0°C to +50°C (32°F to 122°F)
• Humidity: 5% to 95% RH (non-condensing)

Power:

• Input Power: 12 VDC @ 0.1A

Mechanical:

• Dimensions: 50mm x 136mm x 33mm
• Weight: 0.27 kg (0.59 lbs)
• Ingress Protection: IP65

Installation:

• Mounting: Vertical wall mounting

Why Choose Cosec Path RDCX?

The Cosec Path RDCX is the ideal solution for environments requiring secure, card-based access control. Its multi-connectivity options, compatibility with various RFID cards, and IP65-rated design ensure high performance and durability.
