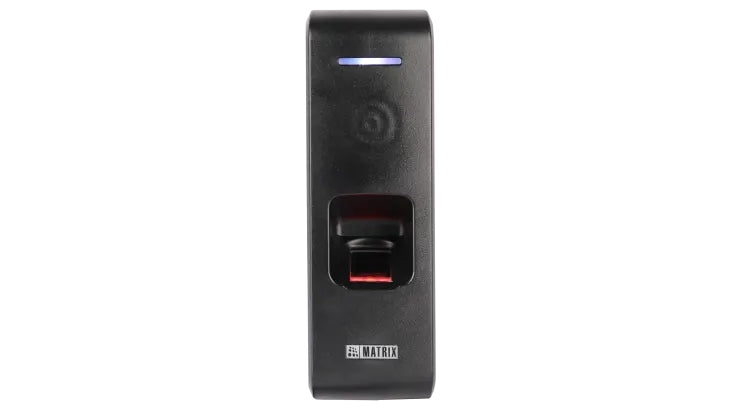

Cosec Path RDFX Fingerprint & Card-Based Access Control Reader Compact IP65 Design

Cosec Path RDFX – Secure Access Control with Fingerprint & RFID Support

The Cosec Path RDFX is a robust, fingerprint and RFID card-based access control reader, designed for enhanced security and seamless integration. With its compact IP65-rated design, it’s ideal for environments demanding durability, accuracy, and high performance.

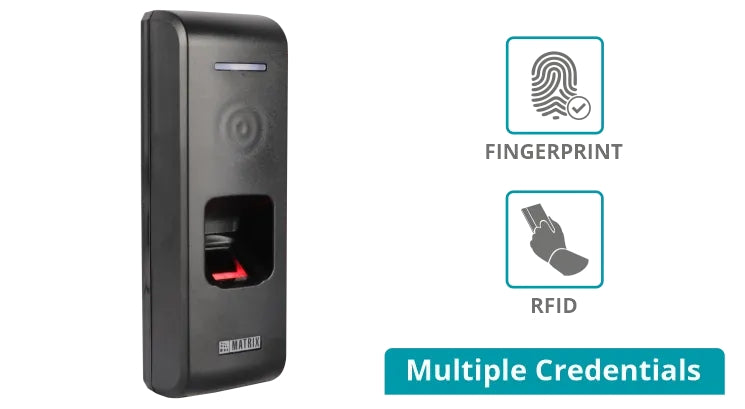

Advanced Authentication with Multi-Credential Support

The device supports fingerprints and various RFID cards (including EM Proximity, MIFARE Classic®, DESFire EV1 & EV2, and HID i-Class), offering flexible and secure access control.

Reliable and Secure Performance

Equipped with a Suprema Optical Sensor, the Cosec Path RDFX delivers high-accuracy authentication with an ultra-low False Acceptance Ratio (FAR) of 0.00001 and False Rejection Ratio (FRR) of 0.0001.

Compact and Durable Design

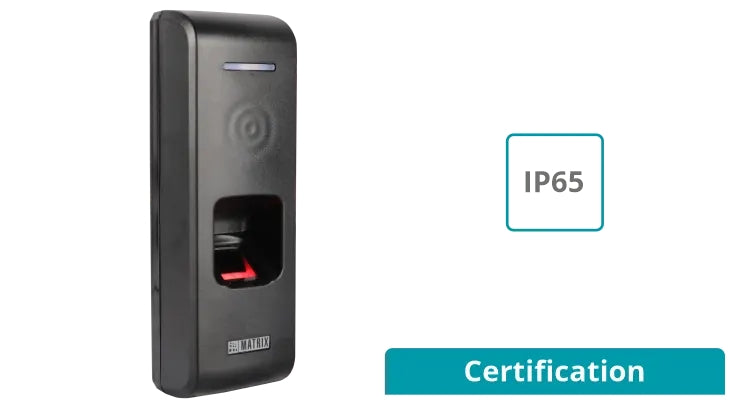

The IP65 ingress protection rating ensures the device remains operational in harsh conditions, while its compact design allows for easy installation.

Architecture Diagram

Features

• Multi-Credential Support: Fingerprint and RFID card options (EM Proximity, MIFARE Classic®, DESFire EV1 & EV2, HID i-Class)
• Sensor Technology: Suprema Optical Sensor with 256-bit AES encryption
• High Accuracy: FAR of 0.00001 and FRR of 0.0001

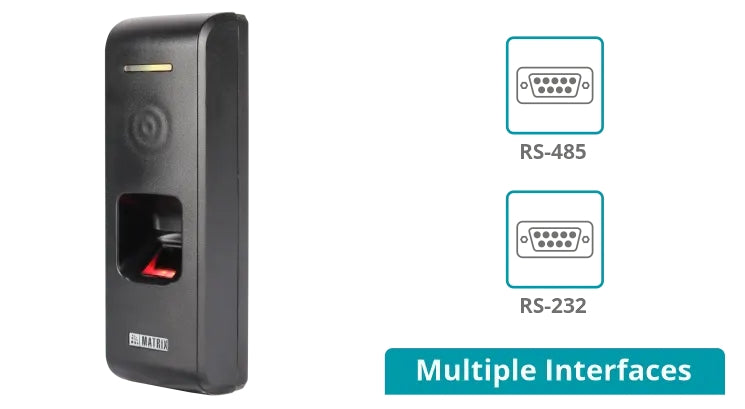

• Connectivity: RS-232 and RS-485 support
• Durable Design: Compact and IP65-rated for harsh environments

Technical Specifications

General:

• Credential Support: Fingerprint and RFID Card
• RFID Options:
  • EM Proximity Card
  • MIFARE Classic®, DESFire EV1/EV2, NFC Tag
  • HID i-Class, Mifare, and Combo Cards

Capacity:

• Template Capacity: 9,600 (1:N Mode)

Communication:

• RS-485: Yes
• RS-232: Yes

Sensor Details:

• Sensor Name: Suprema Optical Sensor
• Resolution: 500 dpi
• Sensing Area: 16.00mm x 19.00mm
• Encryption: 256-bit AES

Environmental:

• Operating Temperature: 0°C to +50°C (32°F to 122°F)
• Humidity: 5% to 95% RH (non-condensing)

Power:

• Power Requirement: 12 VDC @ 0.1A

Mechanical:

• Dimensions: 50mm x 136mm x 33mm
• Weight: 0.27 kg (0.59 lbs)
• Ingress Protection: IP65

Installation:

• Mounting: Vertical wall mounting

Why Choose Cosec Path RDFX?

The Cosec Path RDFX combines advanced biometric technology with multi-credential RFID support, making it a versatile and secure solution for access control systems. Its IP65 rating and compact design ensure durability in all environments, while the Suprema Optical Sensor guarantees fast and accurate identification.
