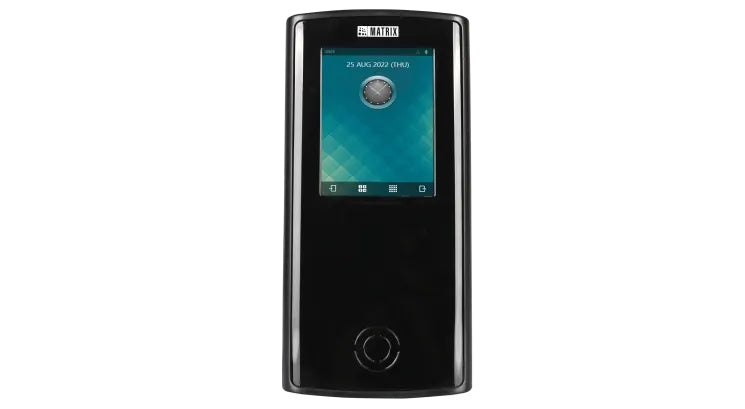

Cosec Vega Cax RFID Touch Screen Door Controller Multi-Credential Access Control System

Cosec Vega Cax RFID Card Based Touch Screen Door Controller: Advanced Access Control System

The Cosec Vega Cax is a cutting-edge access control solution, ideal for securing buildings with multi-credential support, high storage capacity, and versatile connectivity options. Whether you need to manage a small office or a large enterprise, this robust and efficient device integrates seamlessly with various security systems, ensuring the highest level of protection for your premises.

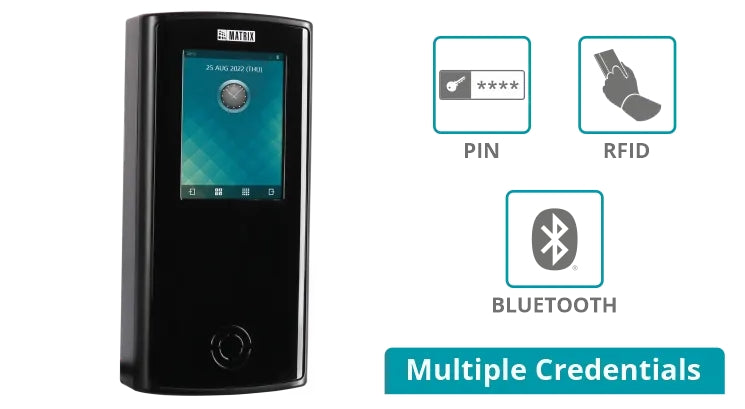

Multi-Credential Support for Ultimate Flexibility The Cosec Vega Cax supports multiple credentials including Bluetooth (BLE), RFID Cards, PIN, and Face recognition (with compatible hardware). This feature provides diverse options to meet your security needs.

Massive User Storage and Event Log Capacity With the ability to store up to 50,000 users and 500,000 event logs, this device ensures smooth and secure operations for both small and large organizations, providing easy access and monitoring.

Multiple Connectivity Options for Seamless Integration Enjoy seamless integration with Wi-Fi, PoE, Ethernet, BLE, USB, and 3G/4G/LTE connectivity, making this door controller a flexible choice for various installations and environments.

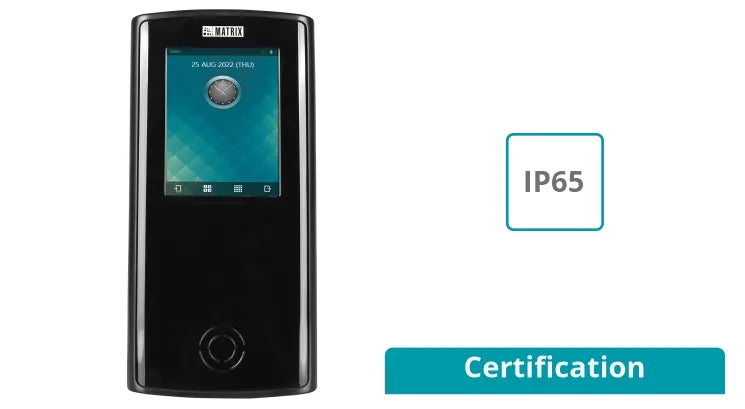

Durability and Protection for Long-Term Use Designed with IP65 ingress protection, the Cosec Vega Cax is resistant to dust and water, ensuring its durability and performance even in harsh environments.

Interface Diagram

Features

• Multi-Credential Support: Bluetooth® (BLE), RFID Cards, PIN, Face recognition (with compatible hardware)
• Storage Capacity: Up to 50,000 users and 500,000 event logs
• Connectivity Options: Wi-Fi, PoE, Ethernet, BLE, USB, 3G/4G/LTE
• Ingress Protection: IP65 for dust and water resistance
• Interface: RS-232 and Wiegand reader interfaces
• Display: 3.5" TFT capacitive touch panel with 320x240 resolution
• Temperature Range: Operates in temperatures from 0°C to +50°C (32°F to 122°F)
• Power Supply: 12V DC @ 2A, includes battery backup
• Security Features: Tamper detection and programmable door status sense

Technical Specifications

General:

• Credential Support: Bluetooth® (BLE), RFID Cards, PIN, Face (with Compatible Hardware)
• Ingress Protection: IP65
• Card Types: EM Proximity Card, MIFARE Classic®, DesFire EV1 & EV2, HID iClass, HID Prox

Capacity:

• Max Users: 50,000
• Event Buffer: 500,000

Communication:

• Wi-Fi: Yes
• Bluetooth®: Yes
• Ethernet: Yes (10/100 Mbps)
• PoE: Yes (IEEE 802.11 b/g/n)
• Mobile Broadband: Yes (3G/4G/LTE)
• USB: 1 USB Port (Data Transfer and 3G/4G/LTE Dongle)
• Wiegand: Yes (Selectable IN/OUT)

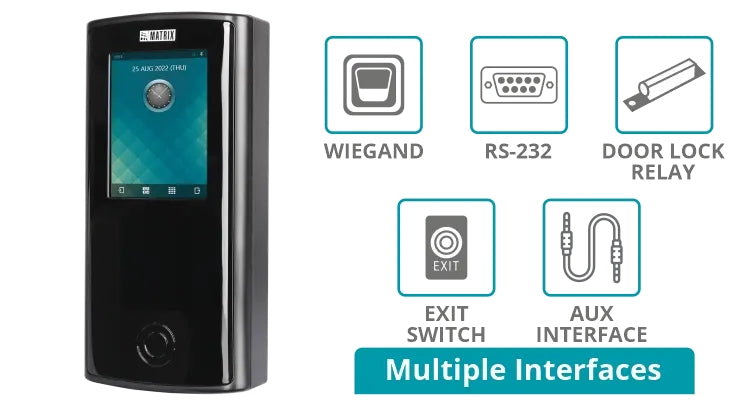

Interface:

• Exit Switch Port: Yes
• Door Status Sense: Programmable NO, NC, Supervised
• Door Lock Relay: 30V DC @ 1A, Form C, DPDT Relay
• Aux-In: Yes
• Aux-Out: Yes
• Reader Interface Types: RS-232 and Wiegand

Hardware:

• CPU: 800 MHz ARM Cortex A8 Processor
• Memory: 256 MB Flash + 512 MB DDR3 RAM
• Micro SD Card: 16 GB (Inbuilt)
• Display: 3.5″ TFT Display with Capacitive Touch Panel
• Resolution: 320 x 240 Pixel
• Buzzer: Yes
• Operating Temperature: 0°C to +50°C (32°F to 122°F)
• Humidity: 5% to 95% RH Non-Condensing
• Tamper Detection: Yes
• Power: 12V DC @ 2A
• Dimensions (WxHxD): 91mm x 186mm x 38mm
• Weight: 0.54Kgs (1.19Lbs)

Compatibility:

• System Integration: API for Software Integration
• Operational Modes: Direct Door with COSEC CENTRA / COSEC VYOM Panel Door with COSEC PANEL200P

Installation:

• Wall Mount: Yes

Accessories:

• Power Adapter: 12VDC @ 2A (CE, FCC, UL, BIS)
• Battery Backup: Yes

Why Choose Cosec Vega Cax?

The Cosec Vega Cax RFID Card Based Touch Screen Door Controller stands out as a highly flexible and secure access control solution. With its multi-credential support, vast storage capacity, and versatile connectivity options, this device is perfect for both small and large-scale applications. Its robust design and IP65 ingress protection make it ideal for environments that demand durability and high security. Choose the Cosec Vega Cax for a reliable and cutting-edge solution to your access control needs.
