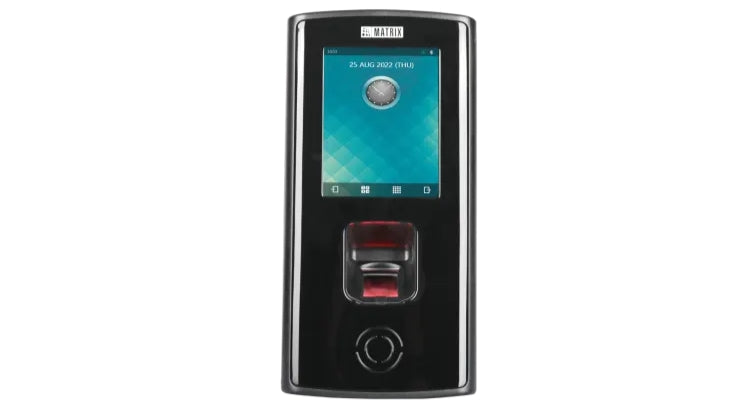

The Cosec Vega Fax is an advanced biometric door controller that supports multiple credentials including fingerprint, BLE, RFID card, and PIN for secure access control. It is designed to offer reliable performance in access control and time-attendance applications. With its massive storage capacity, it supports up to 50,000 users and 500,000 event logs. Its 1: N mode can store 9,600 finger templates, while the 1:1 mode can store up to 100,000 templates, making it highly efficient for various operational needs.

This device also boasts multiple connectivity options such as Wi-Fi, PoE, Ethernet, USB, 3G/4G/LTE, and Bluetooth® to ensure seamless integration with existing security systems. The Cosec Vega Fax is built with IP65 ingress protection and includes a 3.5" TFT display with a capacitive touch panel, making it suitable for deployment in a wide range of environments, including high-traffic and harsh settings.

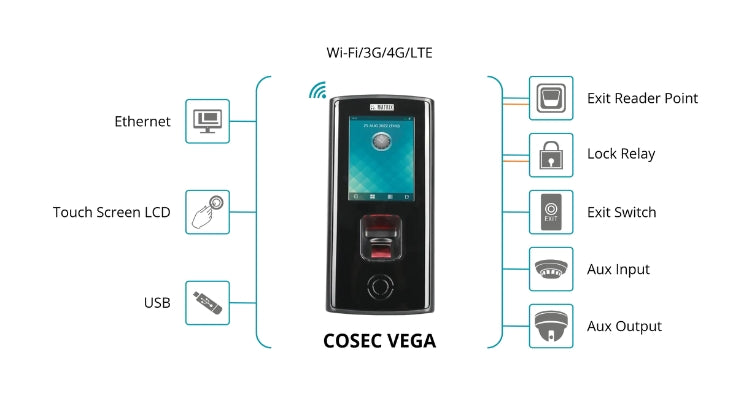

Interface Diagram

Features

• Multi-Credential Support: Offers fingerprint, BLE, RFID card, and PIN authentication for flexible access control.
• Massive Storage Capacity: Supports up to 50,000 users and 500,000 event logs, with 9,600 templates in 1: N mode and 100,000 templates in 1:1 mode.
• Connectivity: Seamless integration with Wi-Fi, PoE, Ethernet, USB, 3G/4G/LTE, and Bluetooth®.
• Durable and Reliable: IP65 ingress protection and tamper detection ensure that the device is robust and secure.
• High-Quality Display: The 3.5" TFT capacitive touch panel with 320 x 240 resolution offers clear and easy navigation.
• Advanced Sensor Technology: Equipped with the Suprema Optical Sensor SFM6030 for accurate and fast fingerprint recognition.

Technical Specifications

General Specifications

• Maximum Users: 50,000
• Template Storage: 9,600 in 1: N Mode, 100,000 in 1:1 Mode
• Event Buffer: 500,000

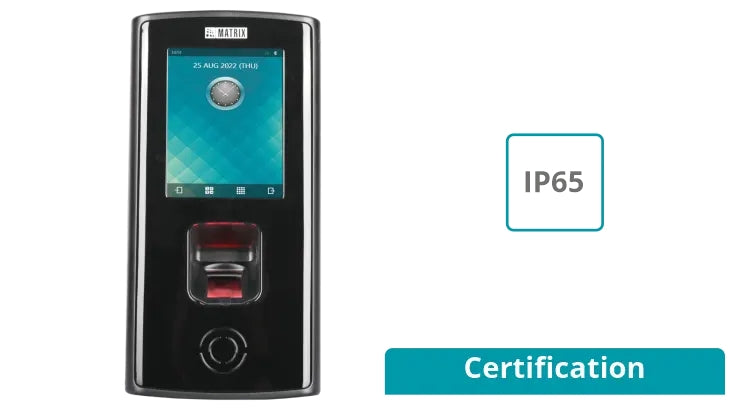

• Ingress Protection: IP65
• Display: 3.5" TFT capacitive touchscreen, 320 x 240 resolution

Connectivity and Communication

• Wi-Fi: Yes
• Bluetooth®: Yes
• Ethernet: 10/100 Mbps
• PoE: Yes
• Mobile Broadband: Yes (3G/4G/LTE)

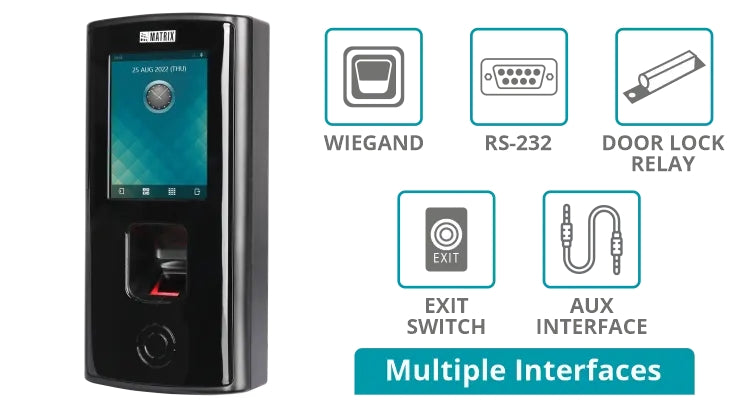

• USB: 1 USB Port (Data transfer and 3G/4G LTE dongle support)
• RS-232: Yes
• Wiegand: Selectable IN/OUT (26 Bit IN, Configurable OUT)

Power and Relay

• Power Supply: 12V DC @ 2A
• Power to Door Lock: 12V DC @ 0.5A (from device)
• Door Lock Relay: 30V DC @ 1A, Form C, DPDT Relay
• Exit Switch Port: Yes
• Auxiliary Inputs/Outputs: Yes

Sensor and Security

• Sensor: Suprema Optical Sensor (SFM6030)
• Encryption: 256-bit AES
• Waterproof: Yes
• False Acceptance Ratio (FAR): 0.001%
• False Rejection Ratio (FRR): 0.001%
• EER: <0.08%

Hardware

• CPU: 800 MHz ARM Cortex A8
• Memory: 256 MB Flash + 512 MB DDR3 RAM
• Micro SD Card: 16 GB built-in
• Dimensions: 91mm x 186mm x 38mm
• Weight: 0.54Kgs (1.19Lbs)

Installation and Accessories

• Mounting Options: Wall mount support
• Power Adapter: 12V DC @ 2A (CE, FCC, UL, BIS certified)
• Battery Backup: Yes

Why Choose Cosec Vega Fax?

• Versatile Credential Support: Ideal for organizations needing flexibility in access control options.
• Scalability: Suitable for a wide range of businesses with the capacity to support large numbers of users.
• Durable Design: IP65 protection and tamper detection ensure reliability in any environment.
• Seamless Connectivity: Multiple communication options like Wi-Fi, Bluetooth®, PoE, and more allow for easy integration into any system.
• User-Friendly: 3.5" TFT display with a capacitive touch panel ensures simple, intuitive operation.
