CPPlus CP-UVR-1601E1-IC 16Ch. 1080N Digital Video Recorder
CPPlus CP-UVR-1601E1-IC 16Ch. 1080N Digital Video Recorder
Regular price
Rs. 0.00
Regular price
Sale price
Rs. 0.00
Unit price
/
per
CP-UVR-1601E1-IC 16Ch. 1080N Digital Video Recorder

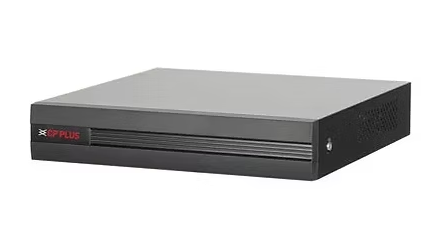

[caption id="attachment_27448" align="aligncenter" width="400"] CPPlus CP-UVR-1601E1-IC 16Ch. 1080N Digital Video Recorder[/caption]- Auto Adaptive HDCVI/AHD/TVI/CVBS/IP signals
- Max 18 channels IP camera inputs, each channel up to 6MP
- Max 64Mbps Incoming Bandwidth
- Interstream/H.265 dual-stream Video Compression
- Support 1 SATA HDD up to 16TB, 2 USB Ports
- Up to 8 channels video stream (analog channel) SMD Plus
- HDMI / VGA Simultaneous Video Output
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro
16 Channel CPPlus DVR
The newly developed this Series All-in one by CP PLUS has brought a huge change to the surveillance industry with an HD video recorder that is made to be compatible with multiple access technology which adds to the effectiveness of the existing security solution by upgrading it. This Series All-in one makes it easier for the end-user by reducing the system cost and simplifying the installation and use. The greater quality and performance provided by the Series All-in one at such a pocket-friendly price makes it ideal for use at a wide range of applications such as retail stores, home protection, roads and traffic signals, among the others.Functions
Multi-signal support This DVRs are equipped with UNI+ technology which supports all HD and analog video formats. This helps the user upgrade their systems without requiring major overhauls. THINK SECURITY THINK CP PLUS FunctionsCP-UVR-1601E1-IC
16Ch. 1080N Digital Video Recorder
Signal auto-adapt
This DVR recognizes the signal type (CVI, TVI, AHD, CVBI) and automatically adapts without requiring any manual interven- tion. This has provided much ease to the user since signal compatibility was always a towering concern.Addnl. IP cameras support
In some installations, customers have specific features and functions that are available in IP cameras only, such as two-way communication, edge storage, alarm I/O, etc. CP PLUS DVRs provide additional IP camera support to provide flexibility so that the desired solution features can be made accessible.Secured Password Policy (SPP)
Amid rising security challenges such as hacking, phishing, etc., CP PLUS has framed strict policies to increase the security of surveillance systems, in which it makes it mandatory to change the default password to one that is alphanumeric.Smart Motion Detection (SMD Plus)
CPPLUS has introduced Smart Motion Detection, AI-based SMD, which use an advanced algorithm to differentiate hu- man and vehicular shapes within a scene and send alarms only when a person or vehicle is detected.gCMOB/ iCMOB
Designed to allow users to access and control live streaming from CP PLUS IP Cameras, DVRs/ NVRs and Video Door Phones, the CP PLUS gCMOB/ iCMOB application offers a host of features such as Easy GUI, up to 16 live viewing split-ups. Insta On cloud support; Playback; digital zoom ins; two-way talk, and more.KVMS Pro
The KVMS Pro is a hybrid security management software that allows the management of various surveillance devices such as cameras, DVRs/ NVRs, encoders/ decoders, etc. It is re- leased with the surveillance hardware and exclusively sup- ports CP PLUS devices. About CP PLUS The brand that is on its way to lead the world when it comes to the security and surveillance industry, CP PLUS, keeps bombarding the market with the most reliable range of products that have been designed carefully and methodically to automate the whole surveillance and security process, no matter how big your premises are. It was the initiative to help the public in the area where they are the most vulnerable and to empower the sense of safety in our hearts that had conceptualized CP PLUS. And embarking on its mission to make the world a safer and more secure place has taken the brand's journey to unprecedented levels even when compared to international competitors.CP-UVR-1601E1-IC
16Ch. 1080N Digital Video Recorder
Feature | Specification | |
Processor | Embedded processor | |
Operating System | Embedded LINUX | |
IP Camera Input | 16+2: each channel up to 6MP | |
Two-way Talk | Reuse audio in/out, RCA | |
User Interface | GUI | |
SMD Plus Performance | 8 channels | |
AI Search | Search by target classification (Human, Vehicle) | |
Video Input | 16 channel, BNC | |
Video Output | 1 HDMI, 1 VGA | |
Compression | AI Interstream/Interstream/H.265/H.264+/H.264 | |
Video Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 | |
Resolution | 1080N; 720P; 960H; D1; HD1; BCIF; CIF; QCIF | |
Video Recording | Main Stream: the 1st channel 1080N/720P (1 fps–25/30 fps), others 1080N/720P (1 fps–15 fps); 960H/D1/HD1/BCIF/CIF/QCIF (1 fps–25/30 fps) Sub stream: CIF/QCIF (1 fps–7 fps) | |
Video Display Split | 1/4/8/9/16 | |
OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
Bit Rate | 32 kbps–4096 kbps per channel | |
Audio Input | 1 channel RCA 16-channel BNC (Coaxial Audio) | |
Audio Output | 1 channel, RCA | |
Motion Detection | Support | |
Video Loss | Support | |
Audio Compression | G.711A, G.711U, PCM | |
Camera Blank | Support | |
Smart Phone | iPhone, iPad, Android Phone | |
Hard Disk | 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature. | |
Audio Sample Rate | 8KHz, 16 bit Per Channel |
Feature | Specification | |
Audio Bit Rate | 64Kbps Per Channel | |
Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips | |
Playback | 1/4/9/16 Ch. | |
Recording Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop | |
Search Mode | Time/Date, MD & Exact search (accurate to second) | |
Playback | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom | |
Backup Mode | USB Device/Network | |
Interface Ports | 2 USB Ports (2.0) | |
Max User Account | 128 users | |
Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, post-record: 10~300 sec | |
Ethernet | 1 (10/100 Mbps Ethernet port, RJ-45) | |
Protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; InstaOn Cloud, ONVIF 21.06; CGI Conformant | |
Power Supply | DC12V/2A | |
Power Consumption | <10W(without HDD) | |
Working Temp | -10°C ~ +45°C (+14°F ~ +113°F), 10 ~ 90% RH | |
Dimensions | 260mm x 236mm x 48mm | |
Weight | 0.89kg (without HDD) |
