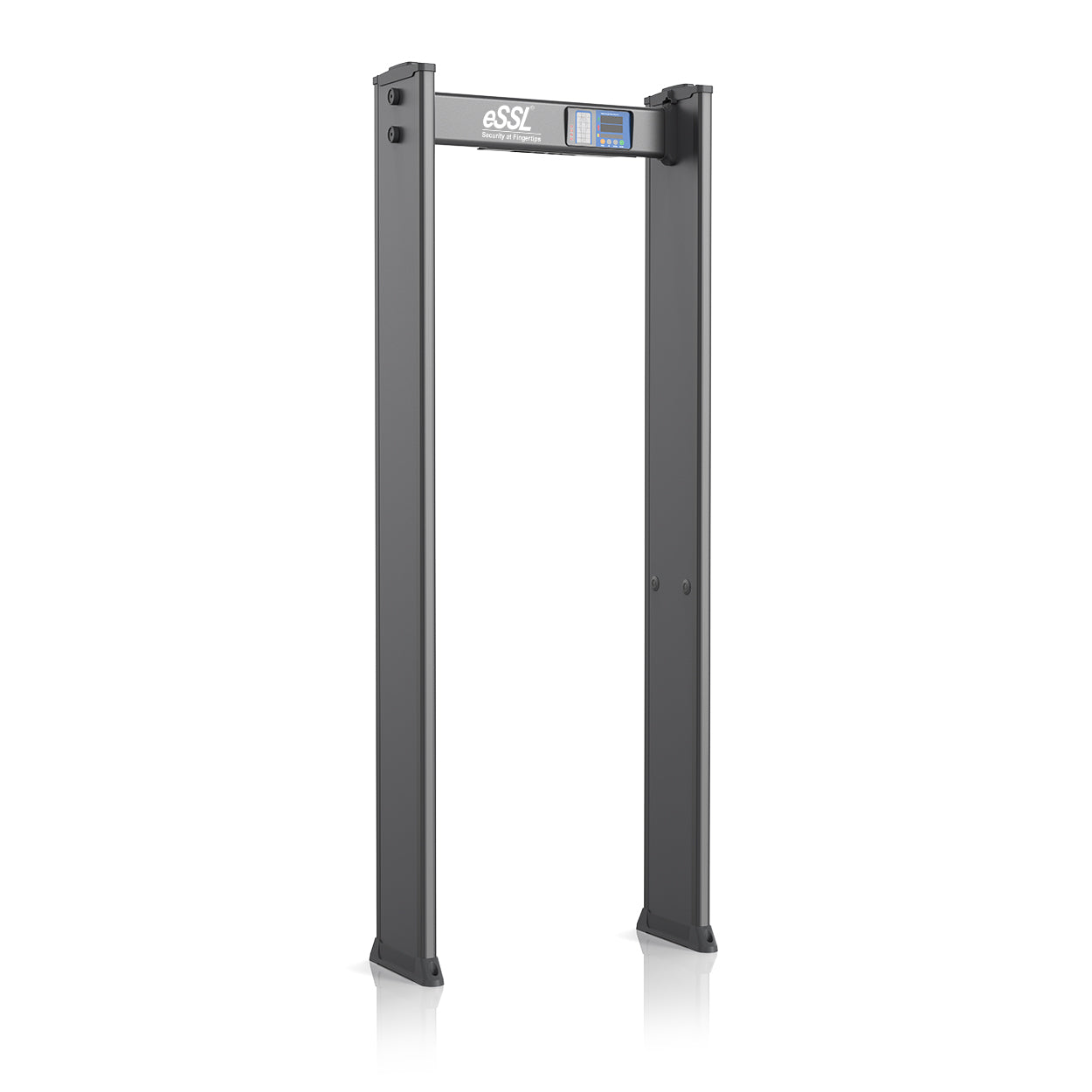

eSSL D270-18-IP65 Walk-Through Metal Detector – 18 Zone

Rs. 64,397.00

~~Rs. 83,716.00~~ Rs. 64,397.00

Sale Sold out

Maintain total operational control over high-traffic security checkpoints. The eSSL D270-18-IP65 Walk-Through Metal Detector is a high-performance security archway engineered to detect concealed metallic threats without interrupting the flow of movement. Utilizing an advanced 18-zone multi-grid matrix, this device scans pedestrians from head to toe, indicating the exact location of weapons or dangerous items instantaneously.

With an IP65 ingress protection rating, the D270-18 is fully sealed against moisture, rain, and heavy dust particles—making it an excellent investment for exposed open-air entrances, public events, and structural checkpoints.

Why Security Teams Choose the D270-18-IP65

18 Distinct Pinpoint Scanning Zones: Divides the interior passage space into 18 matrix zones. High-luminance LED bars on the vertical frames illuminate immediately next to the specific side and height of a threat for rapid, non-invasive physical inspection.
Rugged Weatherproof Construction (IP65): Engineered with an impact-resistant, weatherproof chassis that shields internal electronic loops from splashing water, outdoor showers, and dusty outdoor wind patterns.
Smart Counter & Transit Logs: Features integrated bidirectional infrared beams that keep track of entry/exit metrics automatically. The secure control panel displays total pedestrian crossings alongside active threat-alarm ratios.
Multi-Channel Anti-Interference Architecture: Select from 0 to 99 operating frequency channels. This allows you to stand multiple D270 gateways adjacent to each other or alongside handheld wands without creating cross-talk errors.
Harmless Low-Frequency Waveforms: Built in accordance with strict global radiation standards. Safe for individuals with medical pacemakers, metallic implants, and magnetic recording media.
Adjustable Multi-Level Sensitivity: Fine-tune the scanner's sensitivity across 400 micro-increments. Set customized thresholds to prevent false alarms from harmless items like buttons or keychains while securing against knives, tools, or firearms.

Versatile Applications

The eSSL D270-18-IP65 provides uncompromised lane security for complex operations:

Industrial Sites & Warehouses: Block the theft of delicate high-value component assets, tools, or valuable equipment inventory during staff shift rotations.
Hotels, Exhibition Halls & Concert Arenas: Ensure a highly visual, reassuring security baseline that keeps customers safe at entrances.
Transit Terminals & Metros: Seamlessly handle crushing public transit crowds while scanning for metallic threats.
Courthouses & Corporate Headquarters: Defend delicate interior perimeters, server hubs, and executive suites from dangerous objects.

Technical Specifications

Specification Type	Details
Zone Architecture	18 Overlapping Detection Grids (Configurable configurations)
Ingress Protection Rating	IP65 Certified (Weatherproof and dust-tight)
External Structural Footprint	2213mm x 831mm x 471mm (H x W x D)
Internal Passage Footprint	2000mm x 710mm x 471mm (H x W x D)
Sensitivity Calibration	0 to 400 Independent Increments \| 0 to 50 Volume Scale
Audible Alerts	15 Selectable Tones \| Programmable Alarm Time Up to 3 Seconds
Frequency Bandwidth	0 to 99 Programmable Channels for parallel system isolating
Power Profile	AC 100V – 240V \| 50Hz – 60Hz Universal Supply Adaptability
System Weight Metrics	Net Weight: 35 kg \| Gross Shipping Weight: 42 kg
Environmental Limits	Operating Temperature: -20°C to 65°C \| Humidity: Up to 99% Non-condensing
Vendor	eSSL Security

Integrator Tip: If you are planning an entry point near heavy mechanical machinery (like escalators or elevators) that might trigger magnetic field ripples, leverage the D270's built-in macro-sensitivity controls to stabilize background noise. This ensures accurate scanning without compromising system sensitivity.
