eSSL D270-9-IP54 Walk-Through Metal Detector – 9 Zone
eSSL D270-9-IP54 Walk-Through Metal Detector – 9 Zone
Couldn't load pickup availability

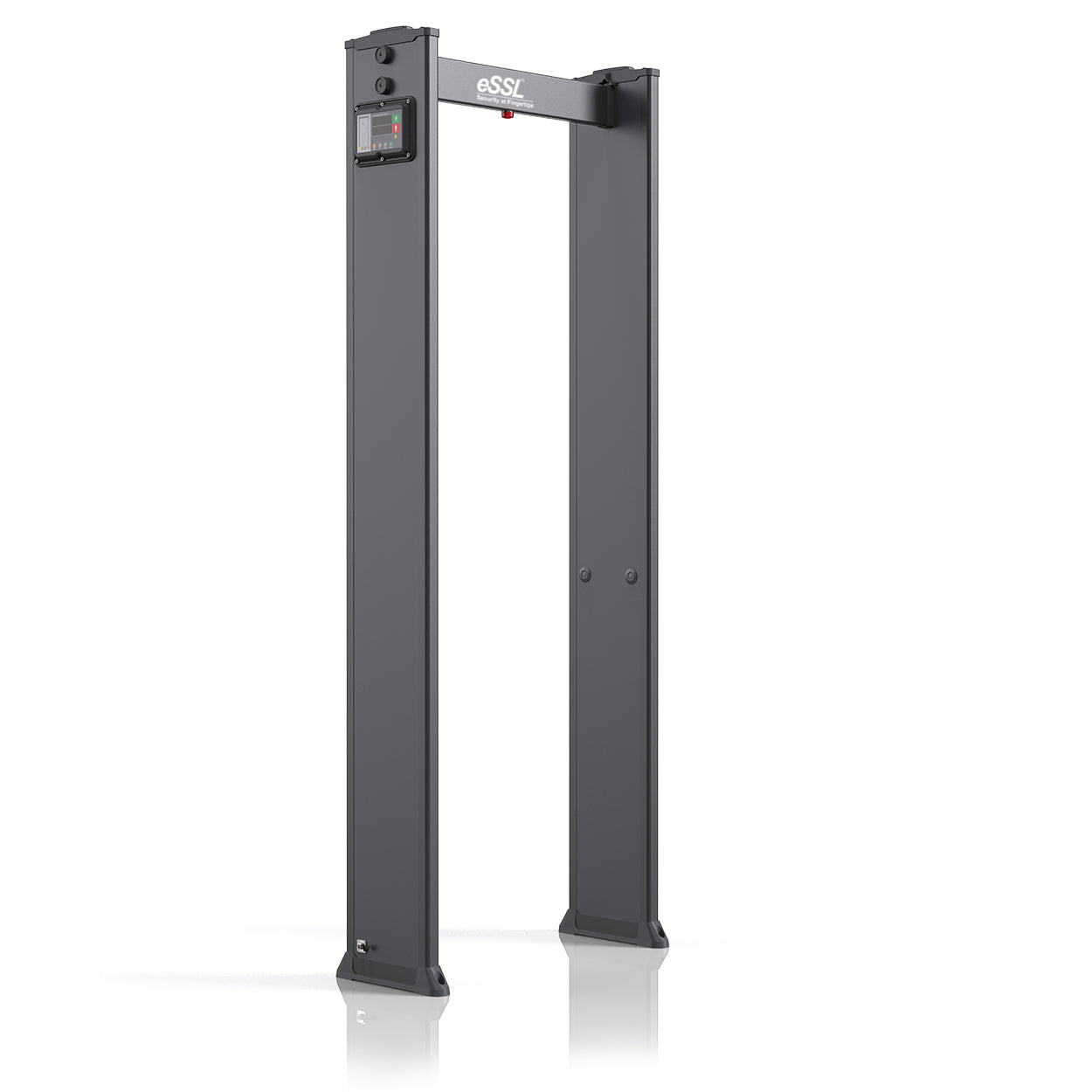

eSSL D270-9-IP54 Nine Zone Walk Through Metal Detector
The eSSL D270-9-IP54 is a high-performance 9-zone walk-through metal detector designed for advanced security screening applications. With nine independent detection zones, high-brightness LED indicators, intelligent sensitivity adjustment, and an IP54-rated dust-proof design, the D270-9-IP54 provides precise metal detection and reliable performance for airports, government facilities, factories, schools, hotels, and other high-security environments.
9 Independent Detection Zones
Precisely identifies the location of metallic objects through nine individual detection zones with LED indication.
Advanced Security Screening
Supports high sensitivity adjustment with accurate detection of metallic objects while minimizing false alarms.
High-Brightness LED Display
Features intuitive LED indicators and digital display for alarm, pass count, and zone indication.
Durable IP54 Construction
Designed with an IP54 dust-proof coating and robust ABS construction for reliable operation in demanding environments.
Key Features
- 9 Independent Detection Zones.
- Electromagnetic Detection Technology.
- High-Brightness LED Display.
- Infrared Pass Count & Alarm Count.
- Adjustable Sensitivity (0-400 Levels).
- 15 Selectable Alarm Tones.
- Adjustable Alarm Volume and Duration.
- Automatic Self-Diagnosis Function.
- Simple Installation with Modular Design.
- IP54 Dust-Proof Protection.
- Suitable for Indoor and Semi-Outdoor Installations.
Technical Specifications
| Specification | Details |
|---|---|
| Model | D270-9-IP54 |
| Type | 9 Zone Walk Through Metal Detector |
| Detection Zones | 9 Independent Zones |
| Working Principle | Electromagnetic |
| Material | ABS (Acrylonitrile Butadiene Styrene) |
| External Dimensions | 2165 × 828 × 349 mm |
| Passage Dimensions | 2017 × 720 × 349 mm |
| Net Weight | 21 kg |
| Gross Weight | 27 kg |
| Input Voltage | AC 100V – 240V |
| Operating Frequency | 50Hz – 60Hz |
| Working Temperature | -20°C to +65°C |
| Working Humidity | 99% RH (Non-Condensing) |
| Sensitivity Adjustment | 0 – 400 Levels |
| Volume Adjustment | 0 – 50 Levels |
| Alarm Duration | 0 – 3 Seconds |
| Alarm Tones | 15 Different Tones |
| Minimum Detection | Ferrous Metals < 75 gm |
| Protection Rating | IP54 |
| Product Colour | Matte Black |
Operating Features
- Accurate zone indication for metal location identification.
- Infrared pass and alarm counting.
- Adjustable sensitivity for different security requirements.
- Automatic self-diagnosis and fault detection.
- Multiple alarm tone selections.
- Reliable and stable electromagnetic detection technology.
Applications
- Airports & Railway Stations
- Government Buildings
- Factories & Industrial Facilities
- Educational Institutions
- Hotels & Commercial Buildings
- Shopping Malls
- Public Venues & Stadiums
- Security Checkpoints
- Correctional Facilities
Why Choose eSSL D270-9-IP54?
- 9 independent detection zones for accurate identification.
- High sensitivity and reliable performance.
- IP54-rated dust-proof construction.
- Infrared pass and alarm counting.
- 15 selectable alarm tones.
- Simple installation and maintenance.
- Ideal for high-security screening applications.
Package Includes
- 1 × eSSL D270-9-IP54 Walk Through Metal Detector
- Cross Beam Assembly
- Installation Accessories
- User Manual
*Specifications and features are subject to change by the manufacturer without prior notice.
